Ultimate Series 6.0MP WDR Infrared Motorised Dome

Brand logo
SKU VSIPE6MPVDIRMG
Brand logo

Ultimate Series 6.0MP WDR Infrared Motorised Dome

SKU VSIPE6MPVDIRMG

Available by special order only. Please contact us for lead times.

Experience Ultra HD quality surveillance with the VSIP6EMPVDIRMG. Enjoy crystal clear images up to 6.0MP with a flat glass lens cover, plus the convenience of a motorised varifocal lens for remote zoom adjustments.

Camera features:
• Stream up to 6.0MP (3072 x 2048) at 20fps
• 2.7 ~ 13.5mm motorised lens with 91 ~ 27° viewing angles
• 50m infrared range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• MicroSD slot for recording at the edge up to 128GB
• H.265 encoding for efficient storage & streaming
• IP67 weather rated full metal dome housing
• ONVIF PSIA and CGI compliance
• ePoE allows for up to 800m transmission at 10Mbps (ePoE NVRs only)

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W
Suggested product image
Ultimate Series 8.0MP WDR Infrared Motorised Dome
VSIPE8MPVDIRMG

Links and Downloads

Specifications

Camera
Image Sensor
1/2.9" 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 2048 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 91°~27°, Vertical: 58°~18° (5x Optical Zoom)
Focus
Auto Focus / 0.2m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
79m (wide)/ 256m (tele)
Observe (63px/m)
32m (wide)/ 102m (tele)
Recognise (125px/m)
16m (wide)/ 51m (tele)
Identify (250px/m)
8m (wide)/ 25m (tele)
Video
Resolution
6.0MP (3072 x 2048) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
Built-in Microphone / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<8.5W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Ultimate Series
Camera Type
Turret Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°; Tilt: 0° ~ 78° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
Yes
ePoE
Yes

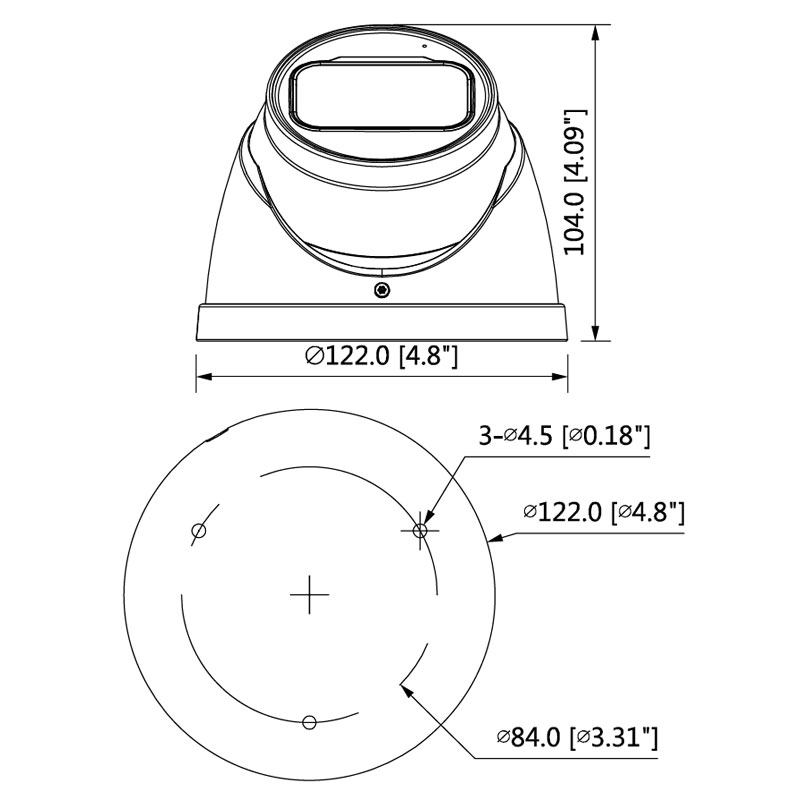

Dimensions
Ø122mm x 104mm
Net Weight
0.60kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
160 mm
Depth
140 mm
Weight
0.76 kg
