VIP Vision 24-port Fast Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWA24C2
Brand logo

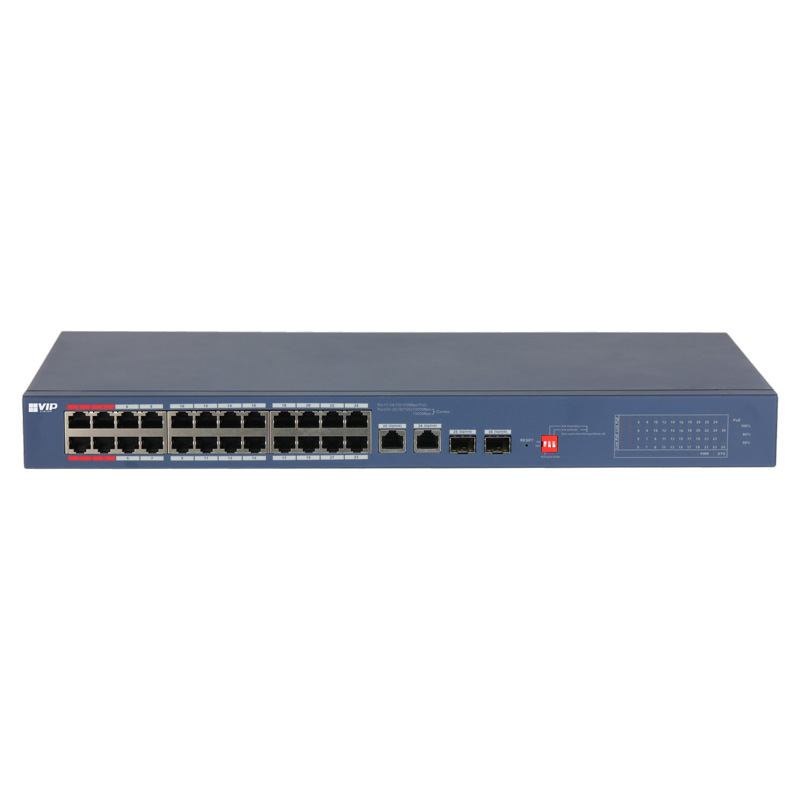

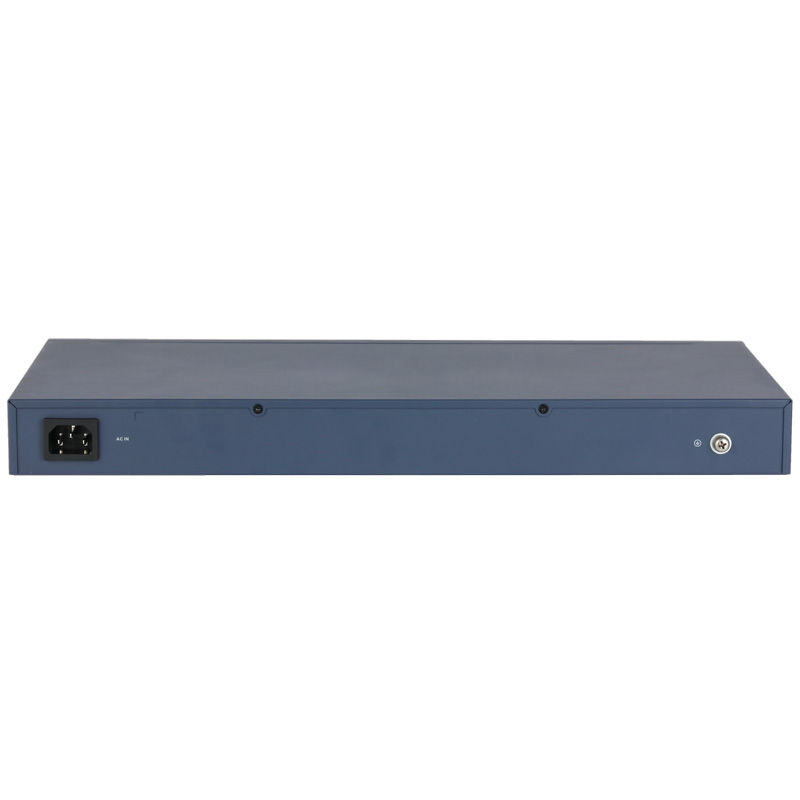

VIP Vision 24-port Fast Hi-PoE Ethernet Switch

SKU VSPOE-SWA24C2

The VSPOE-SWA24C2 is a 24 port, rackmountable network switch with fast device speed, gigabit uplink speed and superb Power Over Ethernet capacity to power your PoE devices. It is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Quickly configure the DIP switches on the front panel to switch between managed mode to extend mode, for up to 250m data cable runs to your device (limited to 10Mbps throughput).

• L2 managed network switch for greater control and security
• Fast 100M Power over Ethernet (PoE) device ports
• Gigabit 1000M uplink ports, RJ-45 (Base-T) and SFP (Base-X)
• PoE, PoE+ and Hi-PoE support for PoE device power
• Hi-PoE provides up to 90W in a single port
• Total network switch PoE power load up to 375W
• Easy DIP switch selector for managed mode, extend mode & PoE watchdog monitor
• Extend mode takes Ethernet cable runs up to 250m
• Rackmount tabs for cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 4kV

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Fast 10/100
Management
L2 Managed
Device Ports
24 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 10/100/1000 RJ45 Base-T (combo port) / 2 x 1000 SFP Base-X (combo port)
Switching Capacity
8.8Gbps
Packet Forwarding Rate
6.5Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Switch Power Load
Port 1-2: ≤90W / Port 3-24: ≤30W / Total: ≤375W
Management
Switch Management
Yes
MAC Address Capacity
8K
Virtual LAN
32, IEEE 802.1Q
Network Time Protocol
Yes
Spanning Tree Protocol
Yes
Port Aggregation
Yes
Port Mirroring
Local, N:1
LLDP
Yes
DHCP
Yes
Extend Mode
Up to 250m range at 10Mbps
Flow Control
IEEE 802.3x
Security Features
Port Isolation
System Maintenance
Yes
Quality of Service
Yes
Network Management
Yes
PoE Management
PoE Watchdog
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Rackmount Tabs (1RU)
Operating Environment
Rackmount Tabs / Desktop mount
Weight
2.70kg

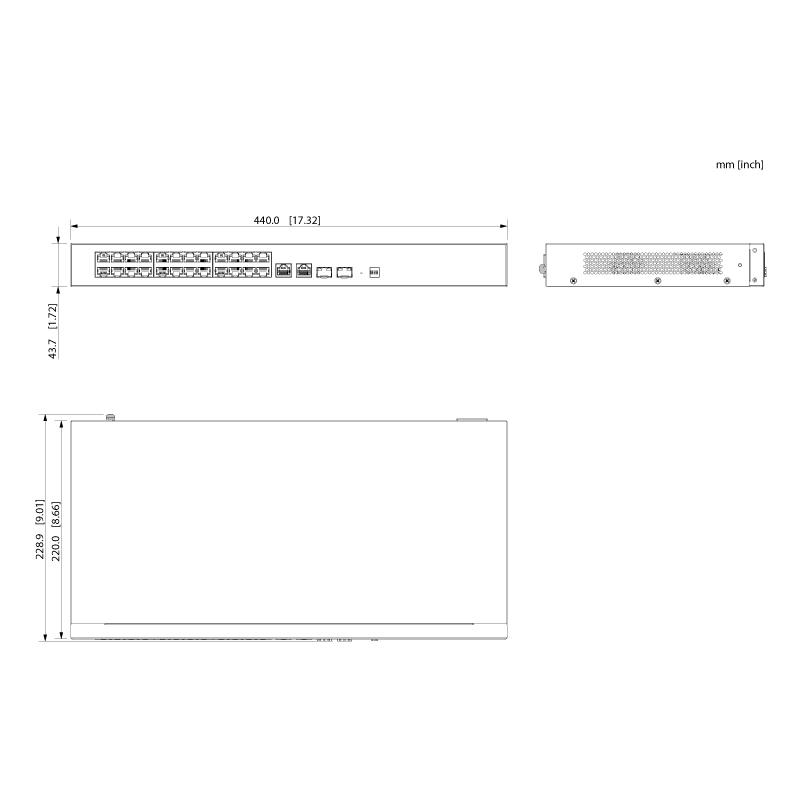

Dimensions
440 x 229 x 45mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
412 mm
Height
110 mm
Depth
527 mm
Weight
4.42 kg
