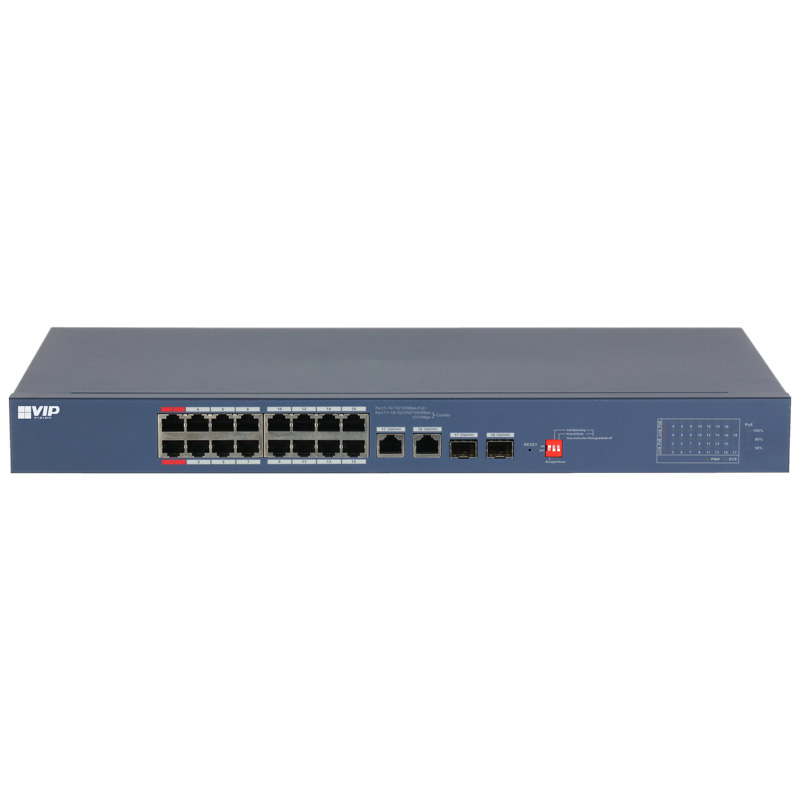

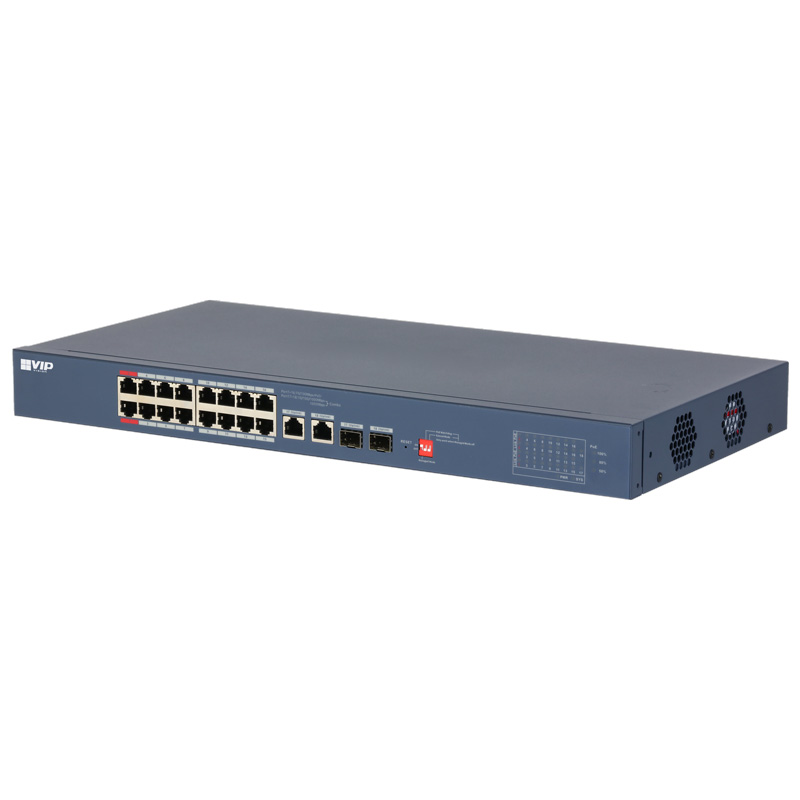

VIP Vision 16-Port 100M Fast Managed Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWA16C2
Brand logo

VIP Vision 16-Port 100M Fast Managed Hi-PoE Ethernet Switch

SKU VSPOE-SWA16C2

The VSPOE-SWA16C2 is a rackmount and desktop mount fast Hi-PoE switch in 16 ports. This switch is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Quickly configure the DIP switches on the front panel to switch between managed mode, PoE Watchdog, or to extend mode, for up to 250m data cable runs to your device (limited to 10Mbps throughput).

• PoE, PoE+ and Hi-PoE support for up to 90W per port
• Total PoE power load up to 240W
• Fast PoE+ device ports with 100Mbps per port
• Extend mode takes Ethernet cable runs up to 250m
• Base-X Gigabit uplink ports for SFP/fibre transceiver adapters
• PoE Watchdog monitors traffic and auto-restarts for improved uptime

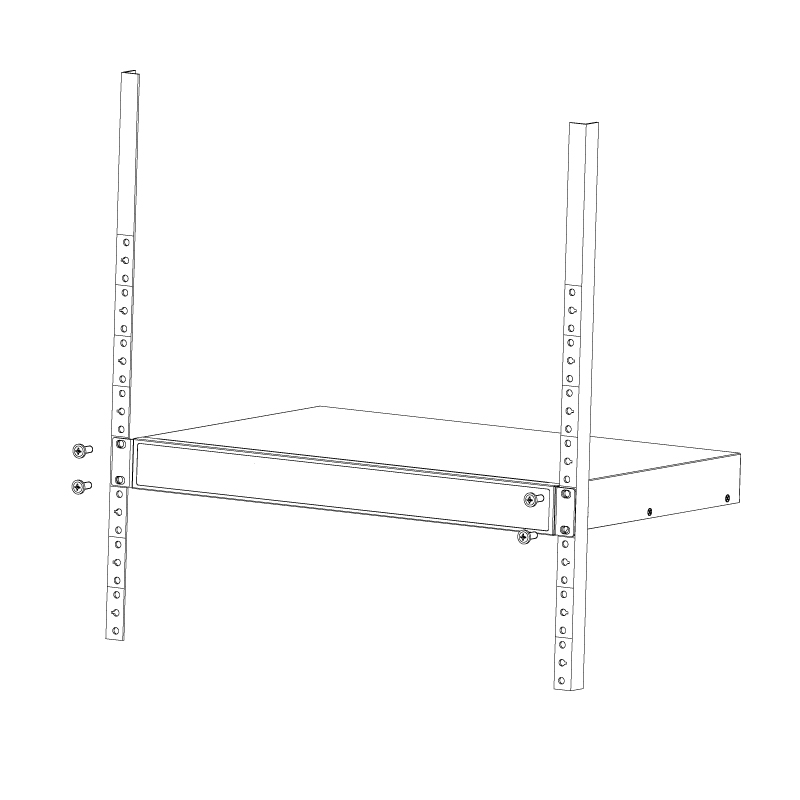

• Rackmount tabs for cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 4kV

Suggested Products

Suggested product image
Mini GBIC / SFP Multi-mode Fibre Adapter (MMF)
SFPMM1
Suggested product image
Power Over Ethernet Extender for Midspans
VSPOE-EX
Suggested product image
60W Power Over Ethernet Midspan
VSPOE-MS
Suggested product image
VIP Vision 16-Port 1000M Gigabit Managed Hi-PoE Ethernet Switch
VSPOE-SWB16C

Links and Downloads

VSPOE-SWA-C Series Datasheet (PDF) 0.94 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
16 ports
Speed
Fast 10/100
Management
L2 Managed
Device Ports
16 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 1000 Base-X / 2 x 10/100/1000 Base-T
Switching Capacity
7.2bps
Packet Forwarding Rate
5.36Mbps
Exchange Mode
-
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Switch Power Load
Port 1-2: ≤90W / Port 3-16: ≤30W / Total: ≤240W
Management
Switch Management
N/A
MAC Address Capacity
8K
Virtual LAN
Yes; IEEE802.1Q
Network Time Protocol
Yes
Spanning Tree Protocol
Yes
Port Aggregation
Yes
Port Mirroring
Yes; N:1, Local Port
LLDP
Yes
DHCP
Yes
Extend Mode
Up to 250m range at 10Mbps
Flow Control
Yes
Security Features
Yes
System Maintenance
Yes
Quality of Service
Yes
Network Management
Yes
PoE Management
Web / Cloud / Logs / Fault Alarm
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Rackmount Tabs (1RU) / Desktop Mount
Operating Environment
-10° ~ 55°C / RH95% (max)
Weight
2.35kg

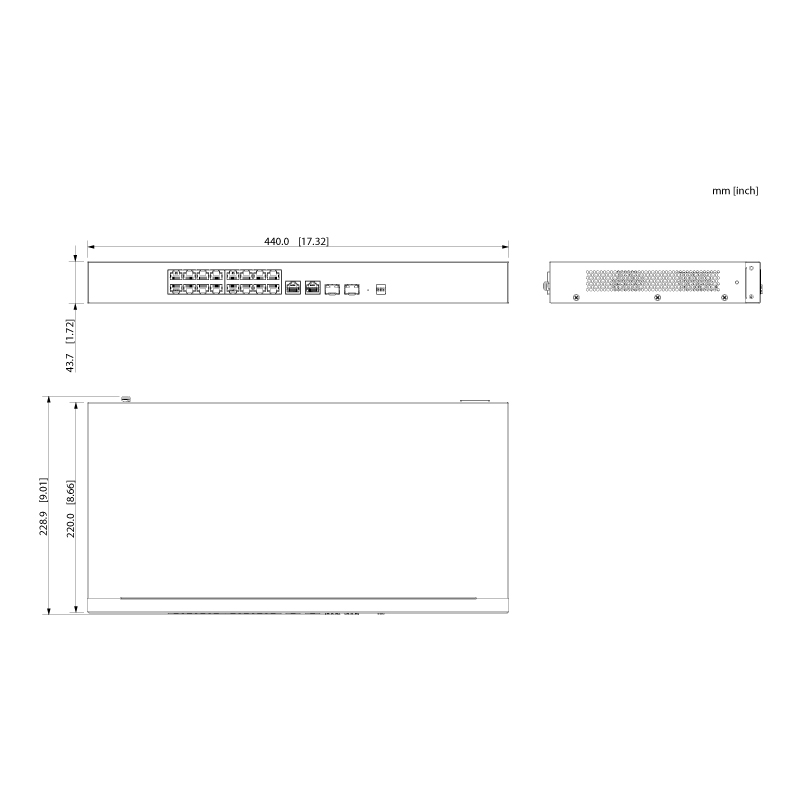

Dimensions
440 x 220 x 44mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
530 mm
Height
120 mm
Depth
420 mm
Weight
4.20 kg
