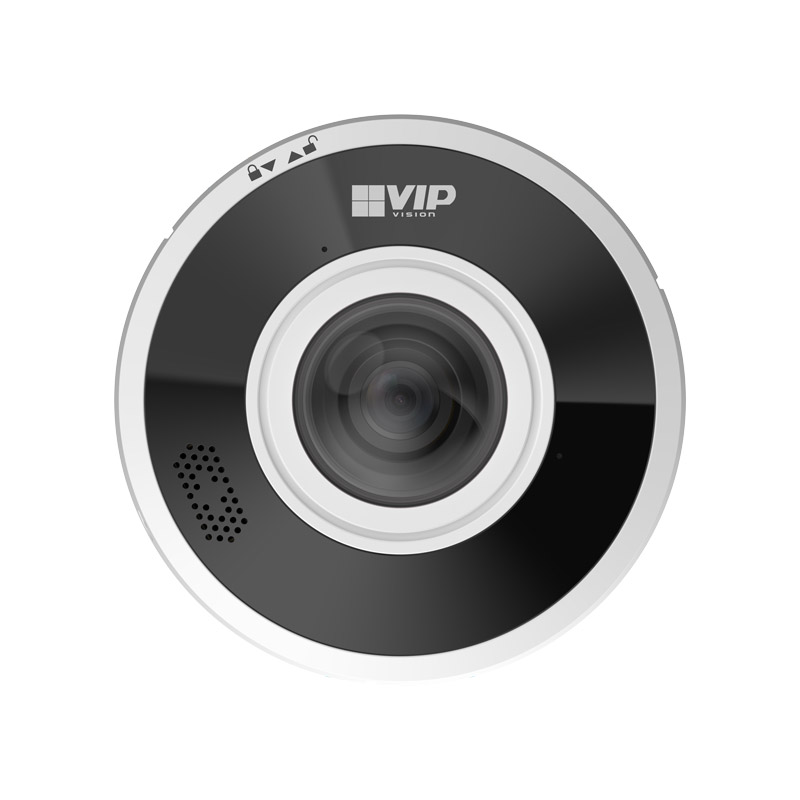

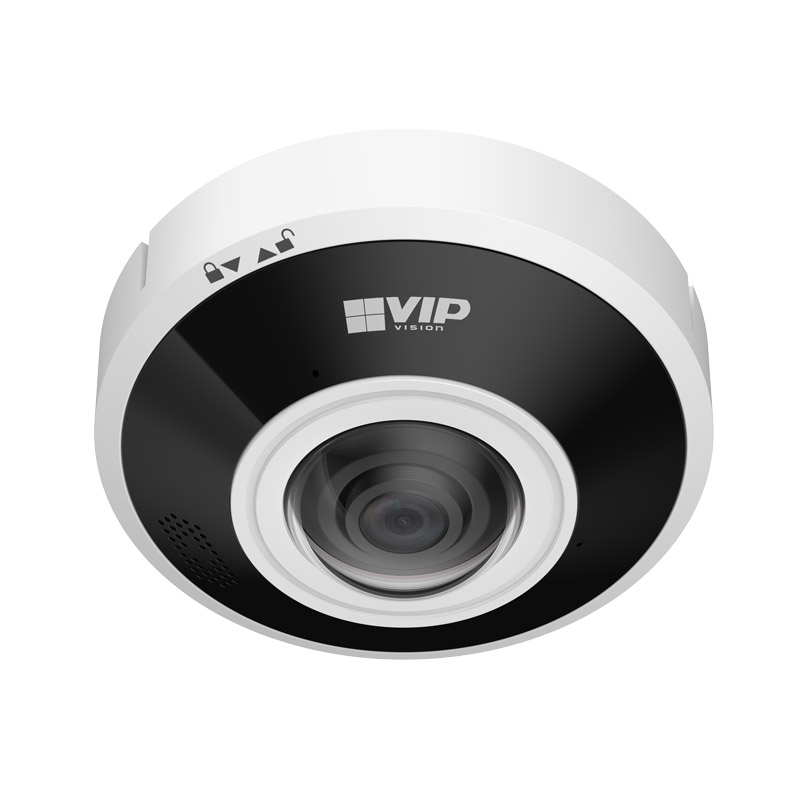

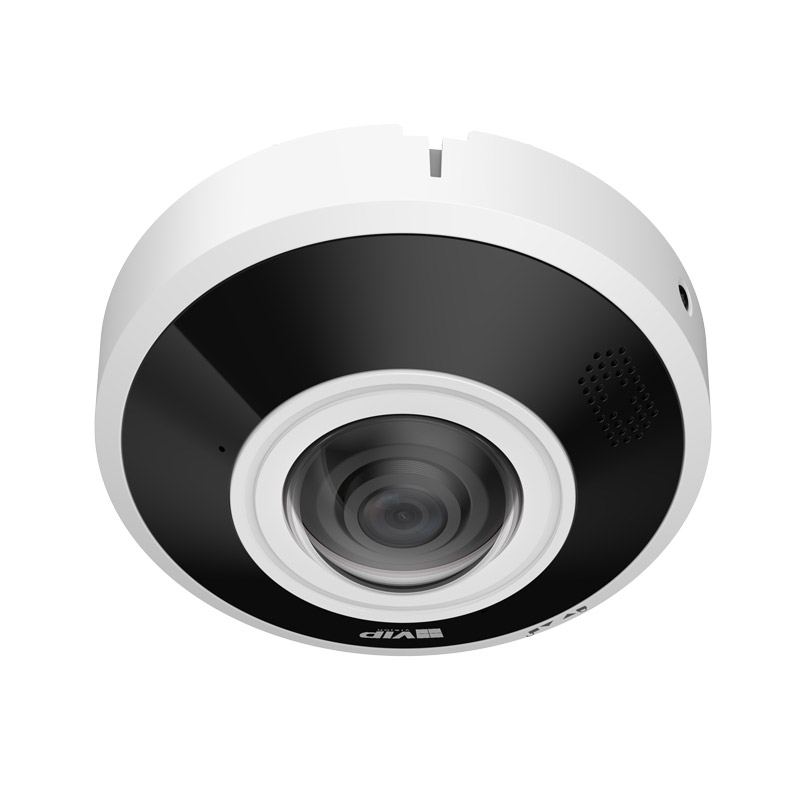

VSIPFE-6IR-I: Specialist AI Series 6.0MP People Counting 360° Fisheye Dome

Specifications

Camera

Image Sensor

1/2.5’’ 6.0MP Progressive Scan CMOS

Max. Resolution

6.0 Megapixel

Effective Pixels

2560 (H) x 2560 (V)

RAM / ROM

4TB / 1TB

Min Illumination

0.006 Lux/F2.0 (Color), 0.0006 Lux/F2.0 (B/W), 0 lux (illuminator on)

S/N Ratio

>56dB

Infrared System

3 x Infrared LED, 15m range, Auto/manual on/off control

Lens

Lens Type

Fixed

Lens / Iris

1.68mm F2.0 Fixed Circular Fisheye Lens

Field of View

Horizontal: 185°, Vertical: 185°

Focus

Fixed / 0.3m Min. Focus

DORI

Detect (25px/m)

33.6m

Observe (63px/m)

13.4m

Recognise (125px/m)

6.7m

Identify (250px/m)

3.4m

Video

Resolution

6.0MP (2560 x 2560) to UVGA (1600 x 1200)

Frame Rate (Main)

6.0MP (1~25fps)

Frame Rate (Sub)

2.0MP (1 ~ 25fps)

Frame Rate (Third)

2.0MP (1 ~ 25fps)

Video Compression

H.265, H.264, H.264H, H.264B, AI H.265, AI H.264, MJPEG (Only supported by sub stream)

Bit Rate

H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR) / Adaptive bit rate (ABR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / True WDR (120dB)

Smart Scene Adaptive (SSA)

Yes

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Dewarping Modes

Original (no dewarp) / Panoramic / Virtual PTZ / Original + 3 split, + 4 split / Front-dewarp / Back-dewarp

IVS

Intelligent Functions

Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map

People Counting

Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)

Network

Ethernet

RJ-45 (100/1000 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Streaming Method

Multicast

Max. User Access

20 Users

Interface

Video Interface

N/A

Audio Interface

1 Channel Input (RCA), 1 Built-in Mic / 1 Built-in Speaker / 1 Channel Output / Audio Compression: PCM, G.711A, G.711Mu, G726, AAC

Alarm Interface

1 Channel Input (5mA 3VDC ~ 5VDC) / 1 Channel Output (300mA 12VDC)

RS485

1 (baud rate range: 1200 bps–115200 bps)

Edge Storage

MicroSD Card (up to 1TB) / NAS / FTP / SFTP

Interoperability

ONVIF (Profile S / Profile G / Profile T), CGI

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

<1.4W (12VDC) / <8.1W (12VDC Max.) / <10.1W (PoE) / <8.8W (PoE Max.)

Operating Conditions

-10° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Series

Specialist AI Series

Camera Type

Fisheye Dome

Housing

Metal + Plastic

Pan/Tilt/Rotation

N/A

ePoE

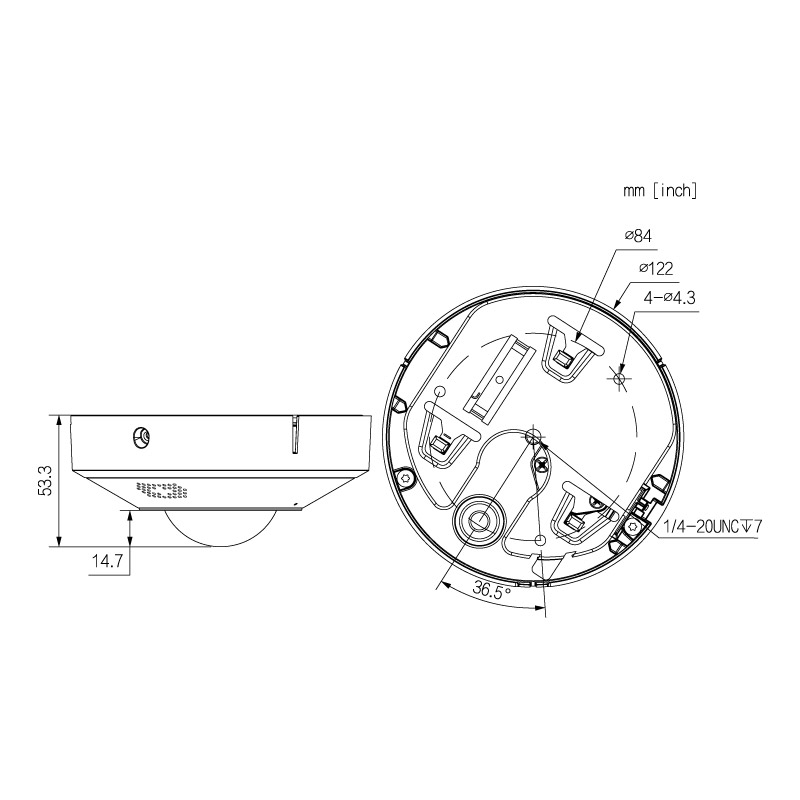

Dimensions

Ø122mm x 53.3mm

Net Weight

0.46kg

Warranty (Years)
