Professional Series 2.0MP WDR Infrared 25x Zoom PTZ Dome

Brand logo
SKU VSIP2MPPTZIRV2
Brand logo

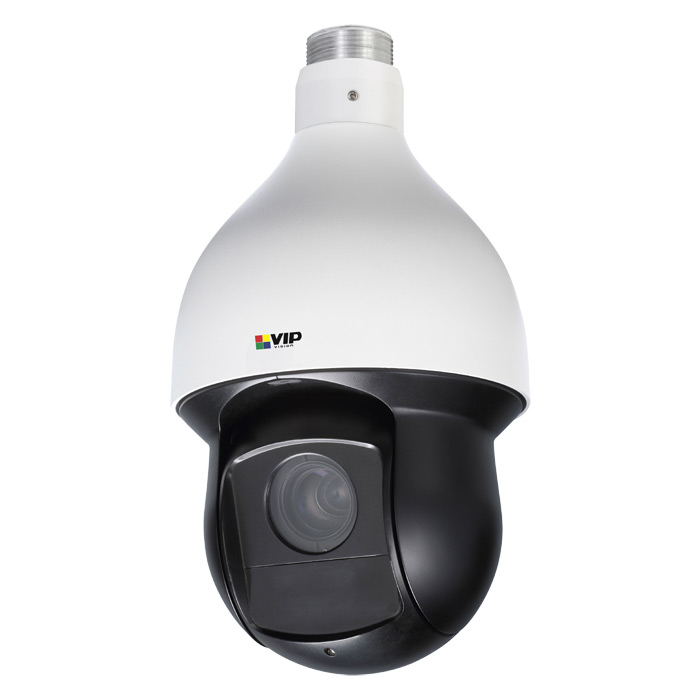

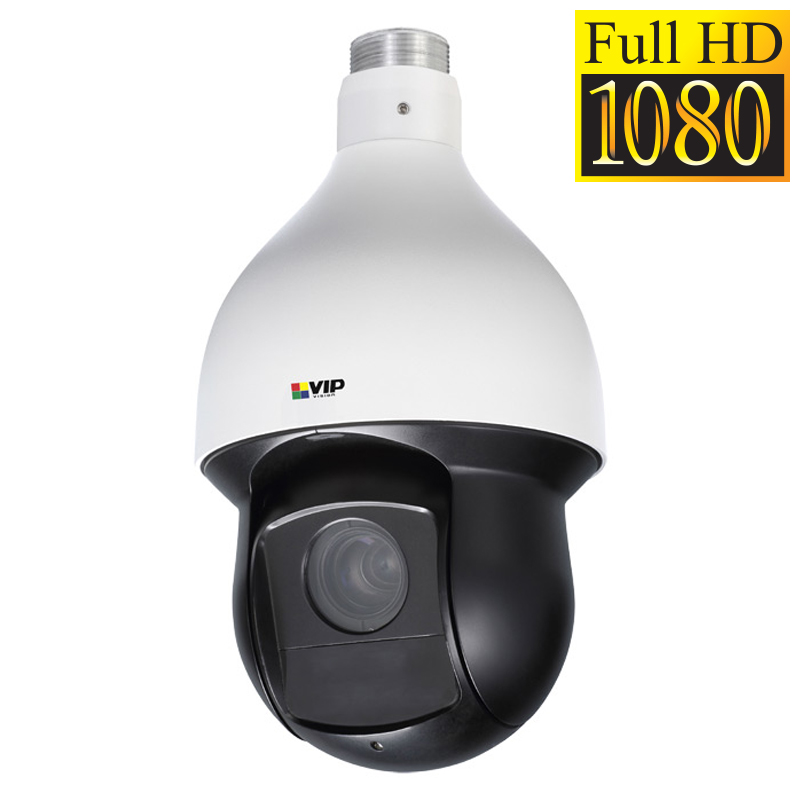

Professional Series 2.0MP WDR Infrared 25x Zoom PTZ Dome

SKU VSIP2MPPTZIRV2

Stock may be limited. Please contact us for availability or for an alternative item.

The perfect solution for large area surveillance, the VSIP2MPPTZIRV2 records Full HD 1080p resolution using H.265 video encoding, saving up to 50% on video storage capacity.

Camera features:
• Stream up to 2.0 megapixel (1920 x 1080) at 50fps
• H.265 encoding for ultra-low bitrate video transmission
• 4.8 ~ 120mm 25x optical zoom lens with 59.2 ~ 2.4° viewing angles
• Day/night (auto ICR) with 150m maximum infrared range
• Backlight/highlight compensation with true WDR (120dB)
• MicroSD card slot for at-the edge recording, up to 256GB
• Endless 360° panning with -15 ~ 90° tilt adjust; auto-flip 180°
• Audio and alarm interface input/output
• IP66 weather resistant housing for external use
• ONVIF, PSIA and CGI compliance

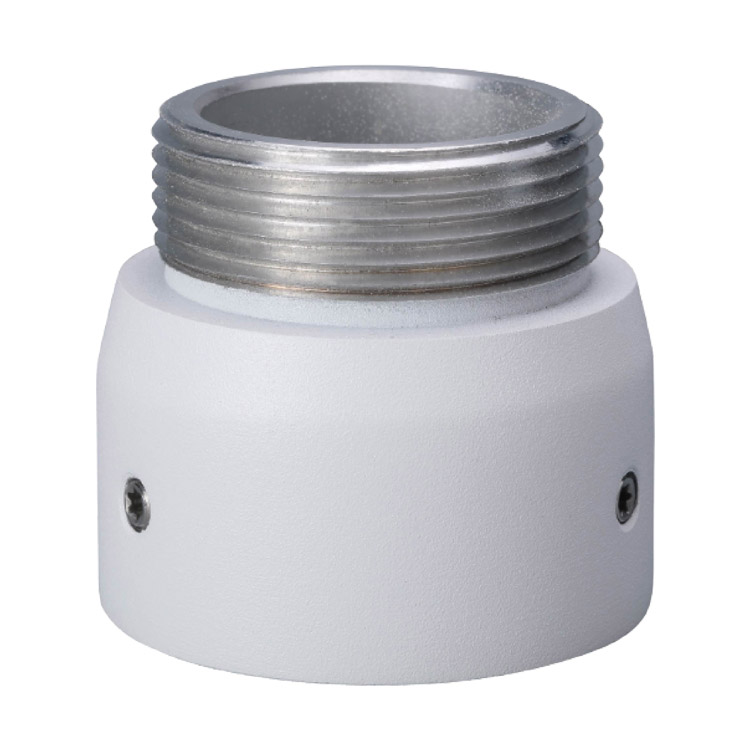

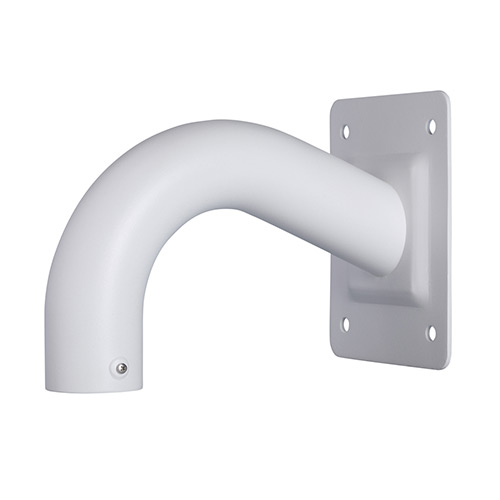

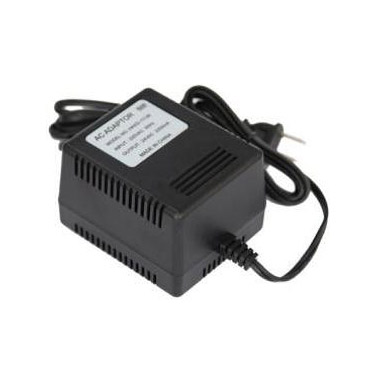

This PTZ dome camera comes standard with right angle bracket, bracket adapter and AC power supply.

Suggested Products

Suggested product image
Ceiling/Wall Mount Adapter for PTZ Cameras
VSBKTA110
Suggested product image
220mm Extender for Ceiling Mount Bracket
VSBKTA112
Suggested product image
420mm Extender for Ceiling Mount Bracket
VSBKTA113
Suggested product image

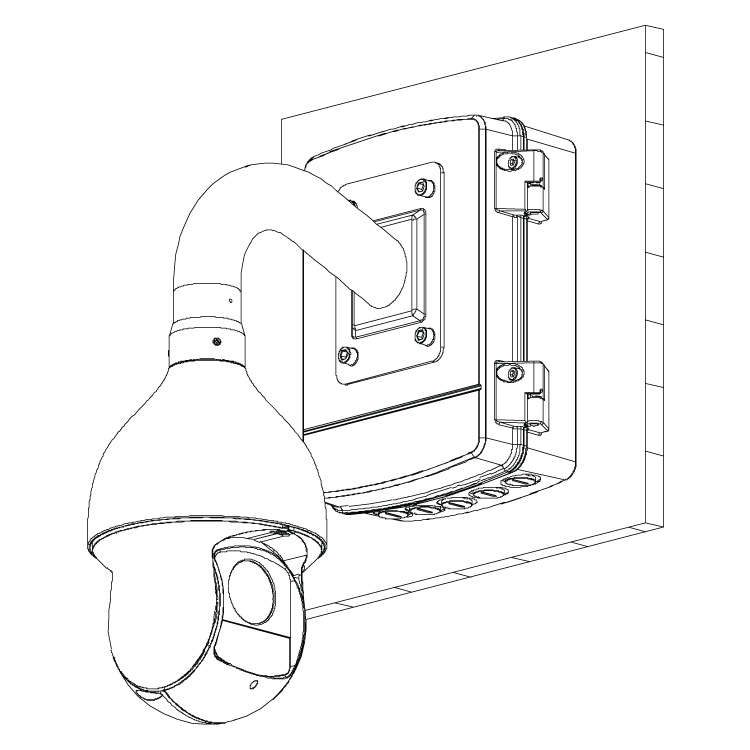

Adapter/Junction Box for PTZ Dome Cameras
VSBKTA120
Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA140
Suggested product image

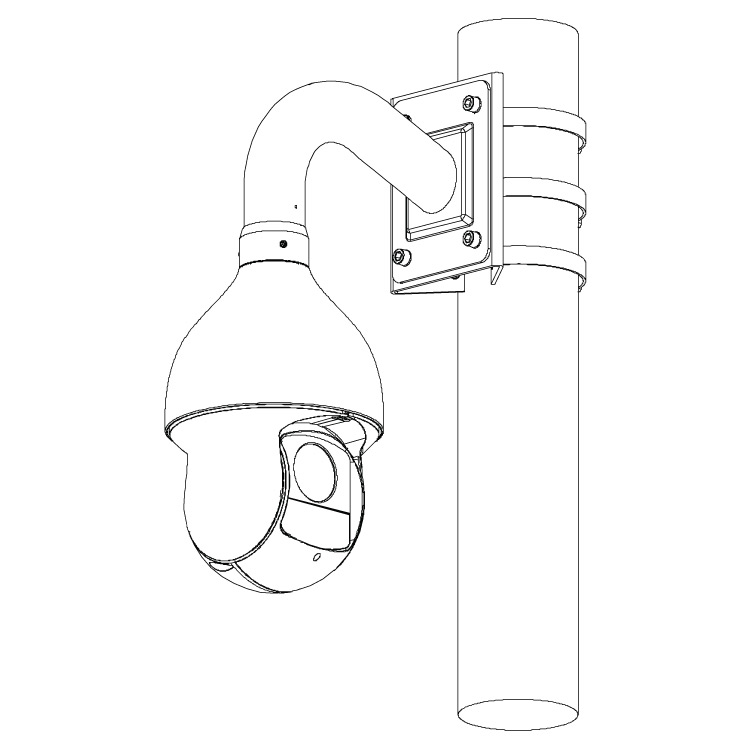

Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image

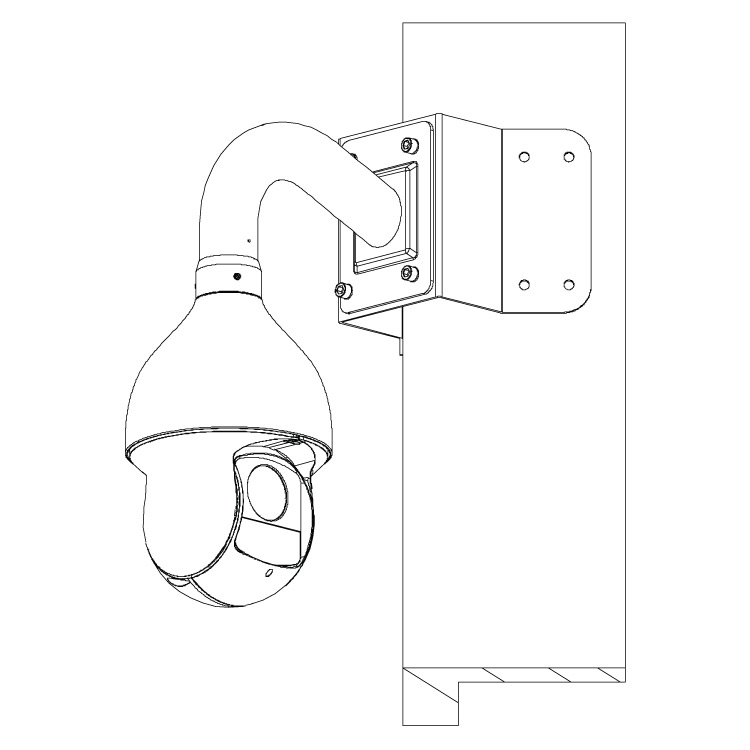

Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image

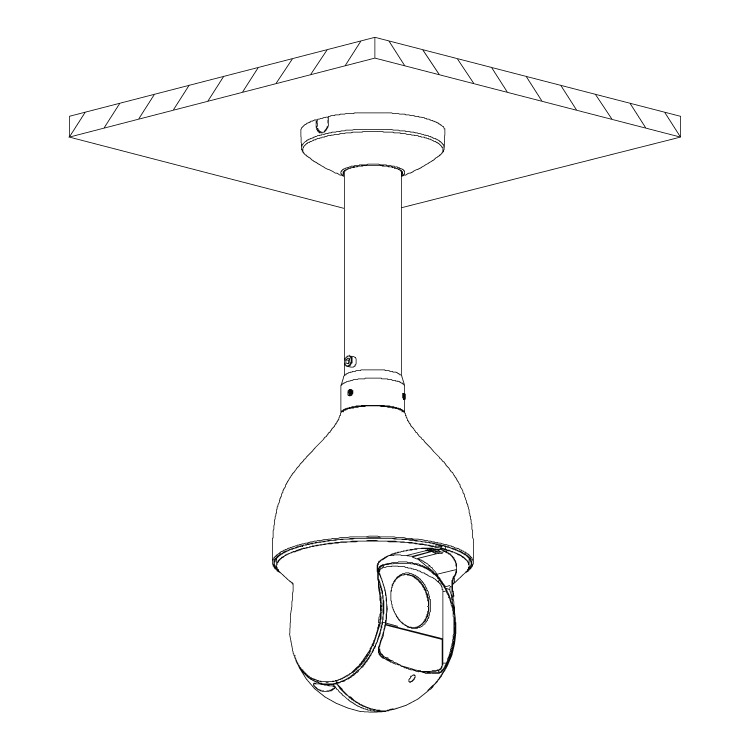

Ceiling Mount Camera Bracket
VSBKTB300C
Suggested product image

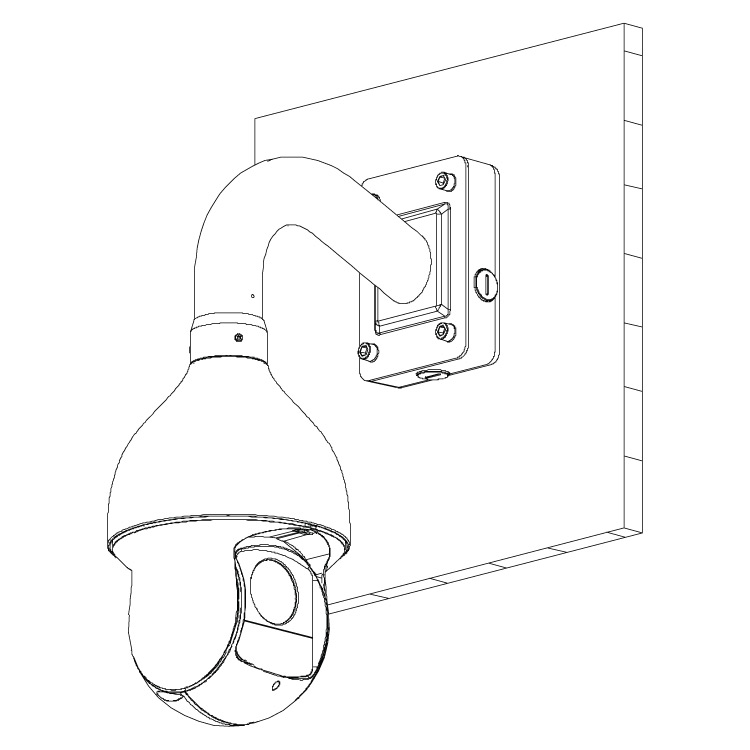

PTZ Right Angle Wall Mount Camera Bracket
VSBKTB300S
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB302S
Suggested product image
Parapet Mount PTZ Camera Bracket
VSBKTB303S
Suggested product image
VIP Vision IP PTZ Control Keyboard
VSIPPTZKBV2

Links and Downloads

Specifications

Camera
Image Sensor
1/2.8’’ 2.0MP Starvis™ CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.005 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
S/N Ratio
> 55dB
Infrared
Yes
Infrared System
4 x Infrared LED, 150m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.8 ~ 120mm F1.6 ~ F4.4 Motorised Lens
Field of View
Horizontal: 59.2° ~ 2.4° (25x Optical Zoom)
Focus
Auto/Manual / 1m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
1613m
Observe (63px/m)
646m
Recognise (125px/m)
323m
Identify (250px/m)
161m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / MJPEG
Bit Rate
H.265/H.264: 448K ~ 8192Kbps / MJPEG: 5120K ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180°
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711mu, G.726, AAC
Alarm Interface
2 Inputs / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC/3A / PoE+ (802.3at)
Power Consumption
<13W
Operating Conditions
-40° ~ +70° C / Less than 90% RH
Ingress Protection
IP66
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 15° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
No
Dimensions
Ø186mm x 309mm
Net Weight
3.5kg
Other
Auto Tracking
Support
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s
Start-up Action
Auto-restore to previous PTZ/lens status
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
290 mm
Height
290 mm
Depth
510 mm
Weight
7.80 kg
