Mobile Series 1080p Fixed HDCVI Twin Dash Camera

Brand logo
SKU VSCVIM-2TT
Brand logo

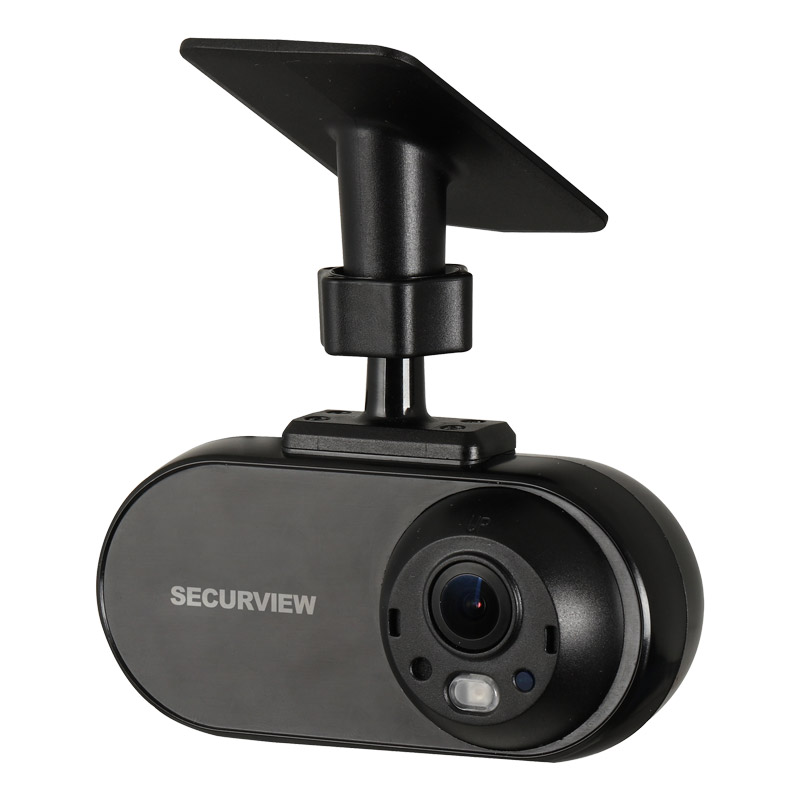

Mobile Series 1080p Fixed HDCVI Twin Dash Camera

SKU VSCVIM-2TT

Designed for windscreen mounting, the VSCVIM-2TT is a dual lens camera capable of simultaneously recording Full HD evidence inside and outside the vehicle. Equipped with a built-in microphone and features durable shock resistant housing.

Camera features:
• Stream 2.0MP / Full HD 1080p (1920 x 1080) at 25fps
• Fixed lens - 109° external and 132° internal
• Innovative dual-lens design records 2 images at once
• HDCVI / AHD / TVI / Analog switchable
• Smart in-vehicle infrared illumination up to 3m
• Features built-in microphone for audio evidence
• 4-in-1 aviation connector cable transmits power, audio, video & ground
• Slimline design with shock resistant housing

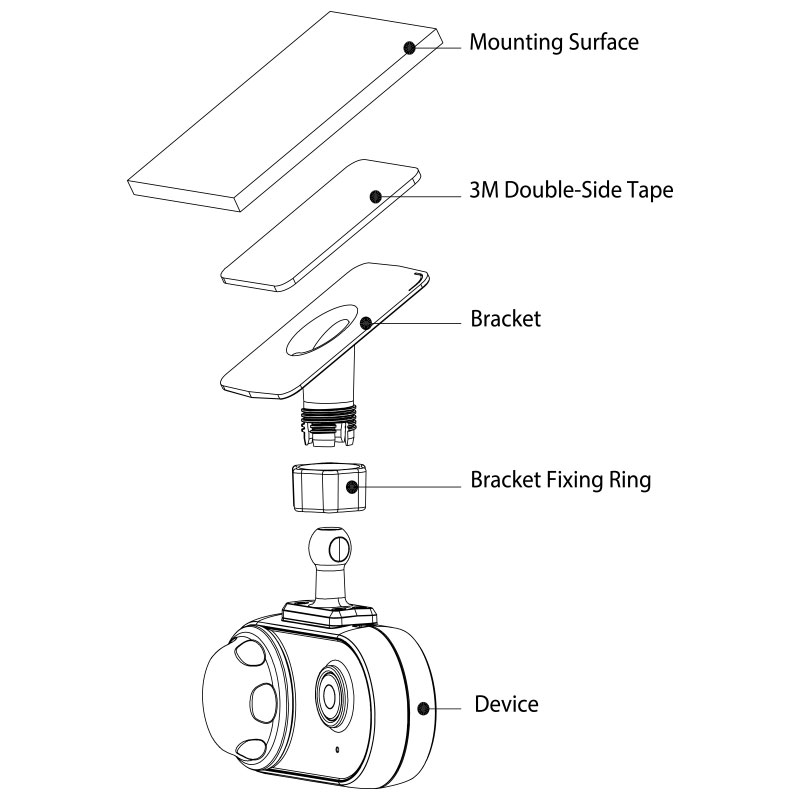

• Easy installation to the inside of the windscreen

Suggested Products

Suggested product image
Securview 4 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi Modules
MCVR-GPS4GW
Suggested product image
UTC Video Output Controller
VSSELECT101

Links and Downloads

Specifications

General
Image Sensor
1/2.7” 2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
Front: 2.8mm F2.0 Fixed Lens / Rear: 2.1mm F2.0 Fixed Lens
Lens Type
Fixed
Angle of View
Front: 109° (H), 58° (V), 127° (D) / Rear: 132° (H), 69° (V), 164° (D)
Focus
Fixed Focus / 0.5m Min. Focus Distance
Minimum Illumination
0.02 Lux at F2.0 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25 ~ 1/100,000s
Day/Night
Front: Color / Rear: Auto (IRC)
Infrared Range
Front: 3m Infrared / Rear: N/A
White Balance
Auto / Manual
Noise Reduction
2D
Gain Control
Auto
Lighting Compensation
BLC / HLC / Digital WDR
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Front: 43m / Rear: 36m
Observe (63px/m)
Front: 18m / Rear: 14m
Recognise (125px/m)
Front: 9m / Rear: 7m
Identify (250px/m)
Front: 4m / Rear: 3m
Video
Resolution
1080p (1920 x 1080)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
Built-in microphone
Alarm Interface
N/A
Video Output
2 x M12 HDCVI output (Yellow: front / Black: rear)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
N/A
Vandal Resistant
N/A
Series
Mobile
Housing
Plastic
Camera Type
Vehicle
Tri-Axis Mounting
No
Power Input
12VDC ±30%
Power Consumption
<1.9W

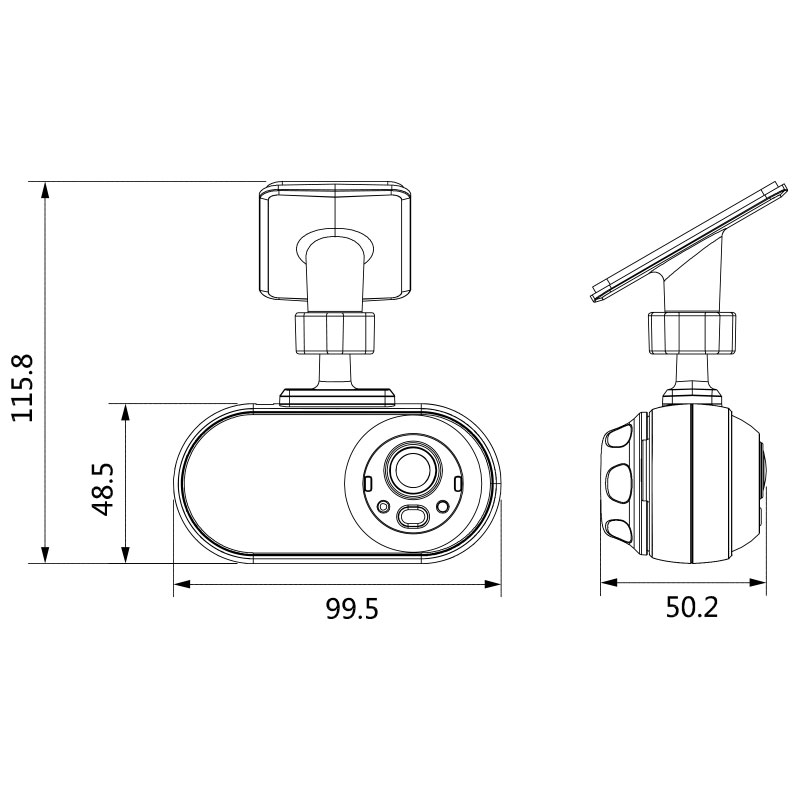

Dimensions
116 x 100 x 50mm
Weight
0.17kg
Operating Environment
-30° to 60°C / RH95% (max)
Other
Analogue Support
N/A
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
97 mm
Height
110 mm
Depth
206 mm
Weight
1.00 kg
