Indoor Hardwired Reed Switch (Grey)

Brand logo
SKU RSW-P1G
Brand logo

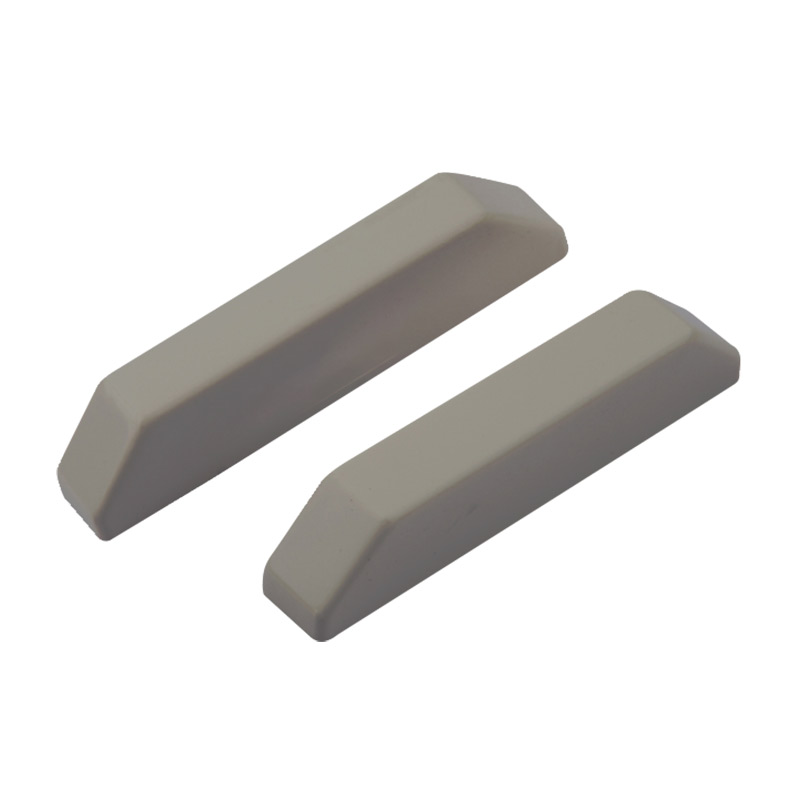

Indoor Hardwired Reed Switch (Grey)

SKU RSW-P1G

The RSW-P1G is a indoor hard wired reed switch, designed for window and door applications.

Product features:
• Grey indoor magnetic contact switch
• Magnet sensor gap, up to 19mm
• Normally Closed (when magnet away from reed switch)
• 3W maximum contact rating (up to 30V, 0.2A)
• Wide range 20~AWG, Ø0.81~0.51mm
• Surface Mounted, plastic construction
• Dimensions 65.5 x 13.6 x 11.1mm

Suggested Products

Suggested product image
Indoor Hardwired Reed Switch (White)
RSW-P1
Suggested product image
Indoor Hardwired Reed Switch (Brown)
RSW-P1B

Links and Downloads

Watchguard RSW-P1 Series Datasheet.pdf 2.24 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Contact
N/C
Dimensions
65.5mm x 13.6mm x 11.1mm
Gap
19mm
Max Current
0.2A
Max Rating
3W
Max Voltage
30VDC
Type
Reed Switch
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
30 mm
Height
20 mm
Depth
90 mm
Weight
0.22 kg
