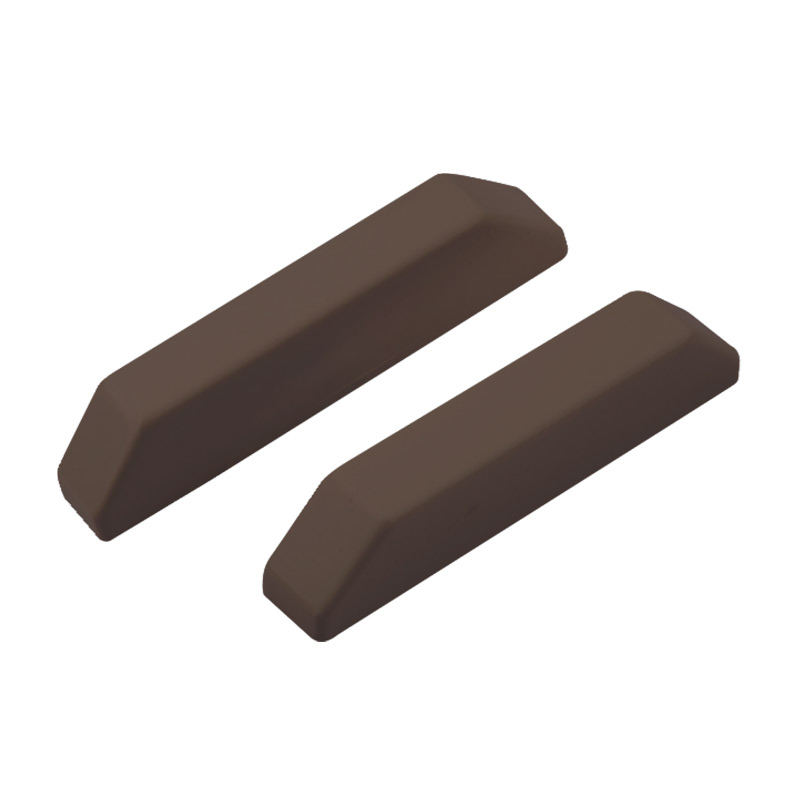

Indoor Hardwired Reed Switch (Brown)

Brand logo
SKU RSW-P1B
Brand logo

Indoor Hardwired Reed Switch (Brown)

SKU RSW-P1B

The RSW-P1B is a indoor hard wired reed switch, designed for window and door applications.

Product features:
• Brown indoor magnetic contact switch
• Magnet sensor gap, up to 19mm
• Normally closed (N.C) reed switch output
• Open loop when near magnet; closed loop when away from magnet
• 3W maximum contact rating (up to 30V, 0.2A)
• Wide range 20~AWG, Ø0.81~0.51mm
• Surface Mounted, plastic construction

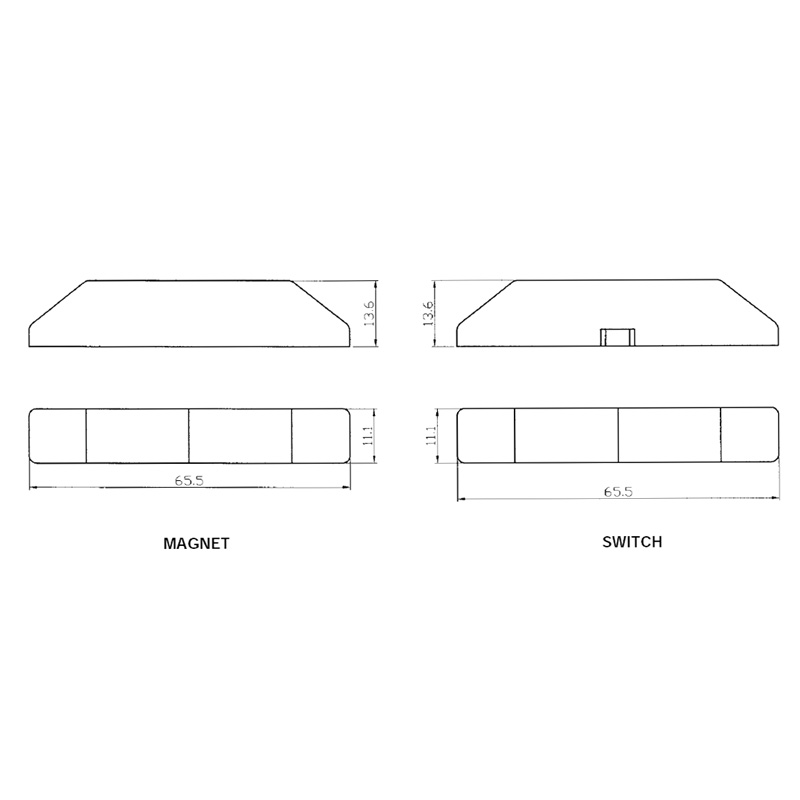

• Dimensions 65.5 x 13.6 x 11.1mm

Suggested Products

Suggested product image
Indoor Hardwired Reed Switch (White)
RSW-P1
Suggested product image
Indoor Hardwired Reed Switch (Grey)
RSW-P1G

Links and Downloads

Watchguard RSW-P1 Series Datasheet.pdf 2.24 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Properties
Switch Type
Normally Closed (N.C)
Magnet Near
Open Circuit
Magnet Away
Closed Circuit
Magnet-Sensor Gap - Maximum
19mm
Contact Rating - Maximum
3W 30VDC 0.2A
General
Mount
Surface
Dimensions
65.5mm x 13.6mm x 11.1mm
Material
Plastic
Type
Reed Switch
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
30 mm
Height
20 mm
Depth
90 mm
Weight
0.22 kg
