Heavy Duty Vehicle Infrared Reverse Camera

Brand logo
SKU MSCAM-TI
Brand logo

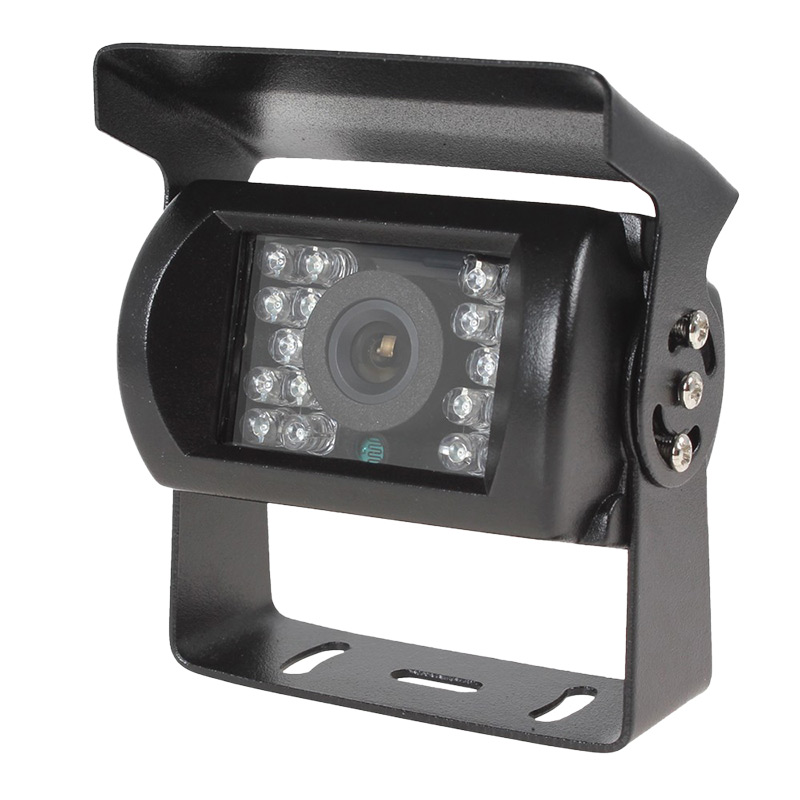

Heavy Duty Vehicle Infrared Reverse Camera

SKU MSCAM-TI

The RHINO™ MSCAM Series of professional vehicle reverse cameras comprises intuitively designed cameras built for demanding weather environments. Each model features an innovative bracket for optimal installation and some feature infrared LEDs for night vision performance. The series is ideal for every day driving and also large fleets of trucks and buses.

Product features:
• Weather resistant heavy duty reverse camera
• 420TVL resolution
• 628(H) x 582(V) effective pixels
• 110° field of view
• Vandal resistant
• 12V ~ 14V power input
• Parking line overlay

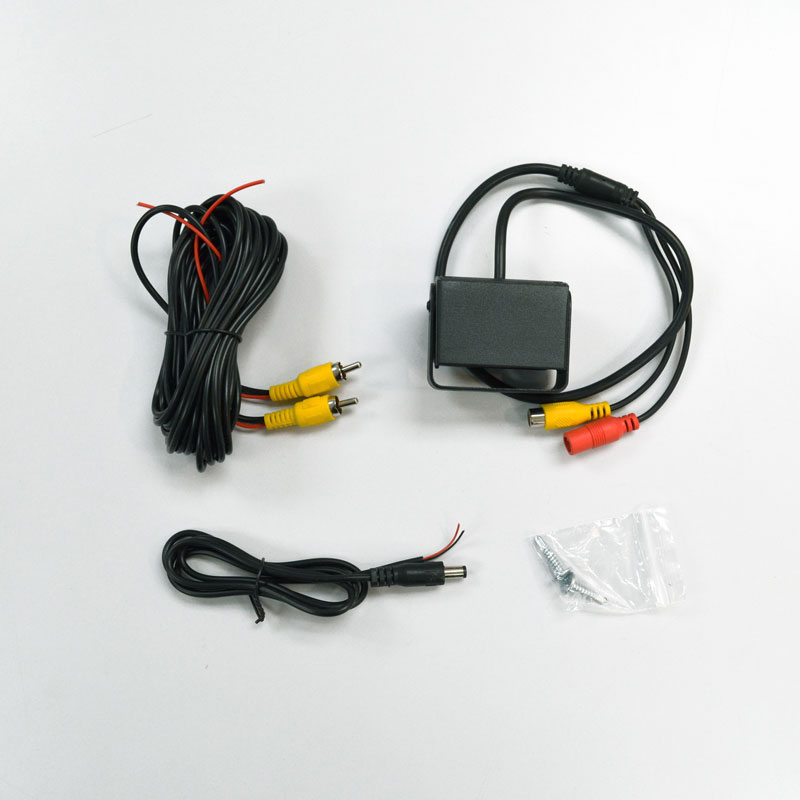

Accessories included:
• DC power supply cable
• 5m video lead
• Mounting kit

Suggested Products

Suggested product image
Professional Ultra Low Light Weather Resistant Dome Camera
MSCAM-MDA
Suggested product image
Heavy Duty Wireless Reversing Camera / Monitor Kit
MSKIT-WRC
Suggested product image
4.3’’ TFT Dashboard Flip Monitor for Vehicles
MSMON-4
Suggested product image
7.0’’ TFT Dash Monitor for Vehicles
MSMON-7

Links and Downloads

Specifications

General
Camera Style
Weather Resistant Heavy Duty
Image Sensor
1/4 CMOS
Effective Pixels
628 (H) x 582 (V)
Mirrored
Yes
Camera
Lens
2.8mm
Minimum Illumination
0.5 Lux
Maximum Infrared Range
30m
Video
Resolution
420TVL
Video Output
1 channel RCA (1.0Vp-p, 75 ohm)
Environment
Ingress Protection
IP67
Vandal Resistant
Yes
Power Input
12V ~ 14V
Power Consumption
< 80mA
Operating Environment
-10° to 50°C / RH95% (max)
Dimensions
58 x 58 x 41mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.30 kg
