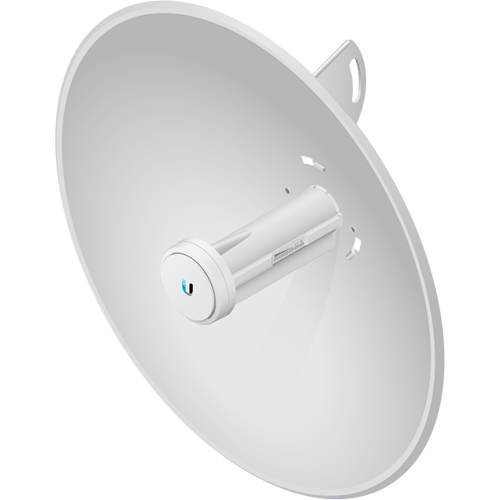

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna

Brand logo
SKU WT5-UPBAC4
Brand logo

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna

SKU WT5-UPBAC4

Stock may be limited. Please contact us for availability or for an alternative item.

Incorporating a dish reflector design with proprietary technology, the WT5-UPBAC4 is ideal for CPE deployments requiring maximum performance. Ubiquiti’s technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna - ultimately improving performance as cable losses are eliminated. The WT5-UPBAC4 offers improved latency, noise immunity, scalability and significantly increased throughput performance.

Product Highlights:
- Built-in mechanical tilt, performing a 20° uptilt and 10° downtilt
- Easy removal with a detachable antenna feed
- Extensive transmission range, in which exceeds 25 kilometres
- Breakthrough throughput supports up to 450+ Mbps
- Operates with a gain measuring 25 dBi
- A frequency range reaching 5 Ghz
- 400 mm Galvanised steel dish reflector, ensuring superior corrosion resistance

Suggested Products

Suggested product image
Ethernet Surge Protector
VSETHSP
Suggested product image
Ubiquiti 400mm Powerbeam AC Antenna Radome Shield
WT5-UPBAC4D

Links and Downloads

Specifications

Channel Sizes
PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Dimensions
420 x 420 x 275 mm
Enclosure
Outdoor UV Stabilized Plastic
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Gain
25 dBi
LEDs
(1) Power, (1) LAN, (4) WLAN
Max. Power Consumption
8.5W
Max. VSWR
1.5:1
Memory
64 MB DDR2, 16 MB Flash
Mounting
Pole-Mount (Kit Included)
Networking Interface
(1) 10/100/1000 Ethernet Port
Operating Frequency
Worldwide: 5150 - 5875 MHz
Operating Humidity
5 to 95% Noncondensing
Operating Temperature
-40 to 70° C
Polarization
Dual Linear
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs
Atheros MIPS 74Kc, 560 MHz
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Supported Voltage Range
20-26VDC
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4
Vibration Test
IEC 68-2-6
Weight
1.753 kg
Wind Loading
278.4 N @ 120 km/h
Wind Survivability
120 km/h
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Wireless Approvals
FCC, IC, CE
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
459 mm
Height
261 mm
Depth
459 mm
Weight
3.22 kg
