Ubiquiti Unifi Wi-Fi 6 Mesh Access Point

Brand logo
SKU WT5-UAPU6MESH
Brand logo

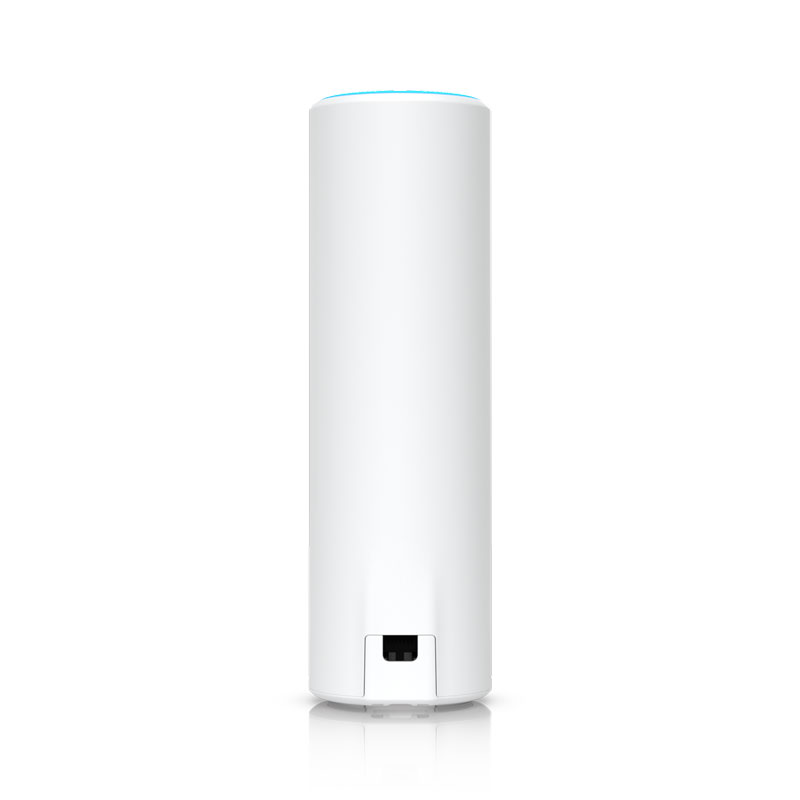

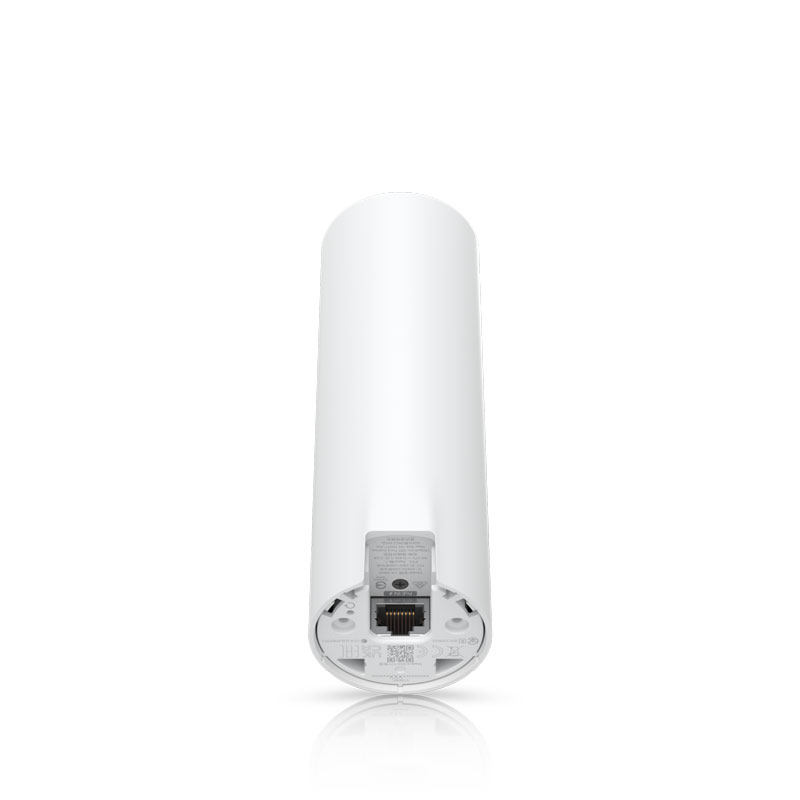

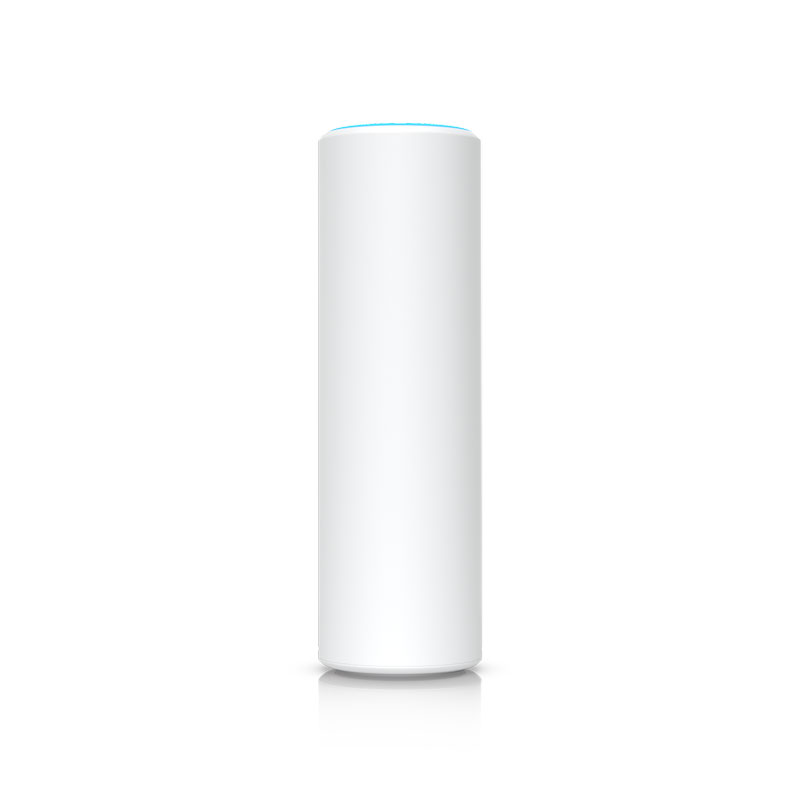

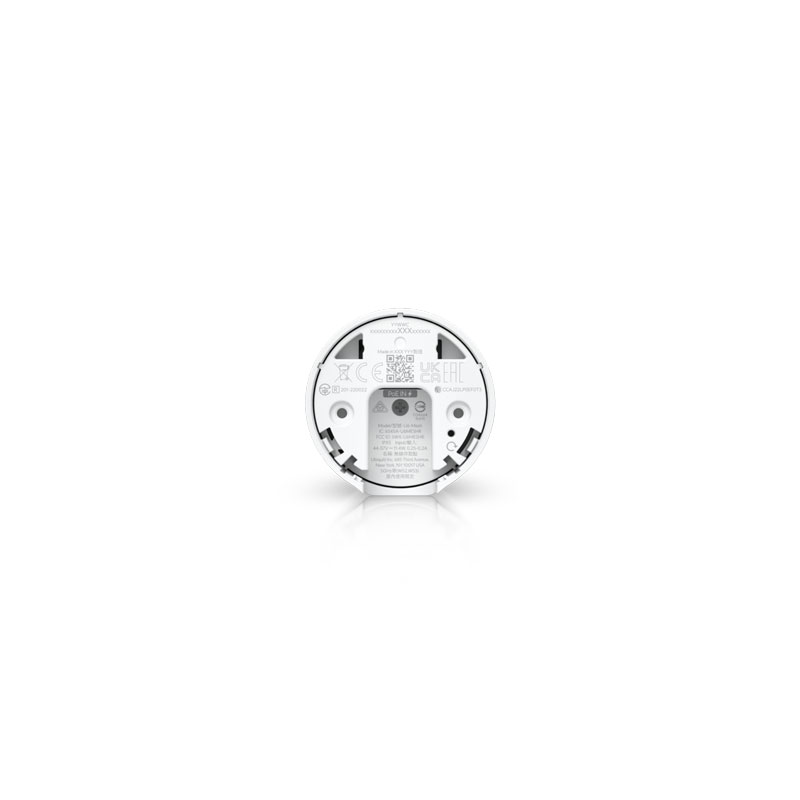

Ubiquiti Unifi Wi-Fi 6 Mesh Access Point

SKU WT5-UAPU6MESH

The Access Point WiFi 6 Mesh (U6 MESH) is a 802.11ac WiFi access point that utilises Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (802.11n, 2x2 MIMO) bands.

Sleek, powerful 802.11ac Wave 2 access point ideal for home or business use. The U6 Mesh's narrow form allows you to stage it anywhere indoors where you need stronger wireless connectivity.

You can also use the included wall or pole-mounting brackets to deploy the U6 Mesh outdoors and expand coverage throughout your entire residence or business. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

- 802.11ac Wave 2 WiFi technology
- 5 GHz (802.11ac, 4x4 MU-MIMO) band with a 4.8 Gbps throughput rate
- 2.4 GHz (802.11n, 2x2 MIMO) band with a 573.5 Mbps throughput rate
- Can be deployed inside or outdoors
- Included tabletop, wall, and pole mounting brackets

Links and Downloads

Product Datasheet (PDF) 0.28 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Network
Beam Width
-
Operating Frequency
2.4 GHz / 5 GHz
Networking Interface
1 x 10/100/1000 Ethernet Port
Antenna Gain
3dBi (2.4GHz) / 5dBi (5GHz)
VSWR
-
Power
Power Consumption
11.4W
Power Supply
48V, 0.32A Gigabit PoE Adapter
Power Method
802.3af
Output Power
-
Environment
System Memory
-
Operating Temperature
-30 to 60° C
Operating Humidity
5 to 95% Noncondensing
Wind Tolerance
-
Dimensions
Ø 48.50 x 159.5 mm (1.90 x 6.28")
Weight
400 g (0.88 lb)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
49 mm
Height
49 mm
Depth
160 mm
Weight
1.00 kg
