Ubiquiti Dual Band WiFi 7 Long Range (PoE) Access Point

Brand logo
SKU WT5-U7LR
Brand logo

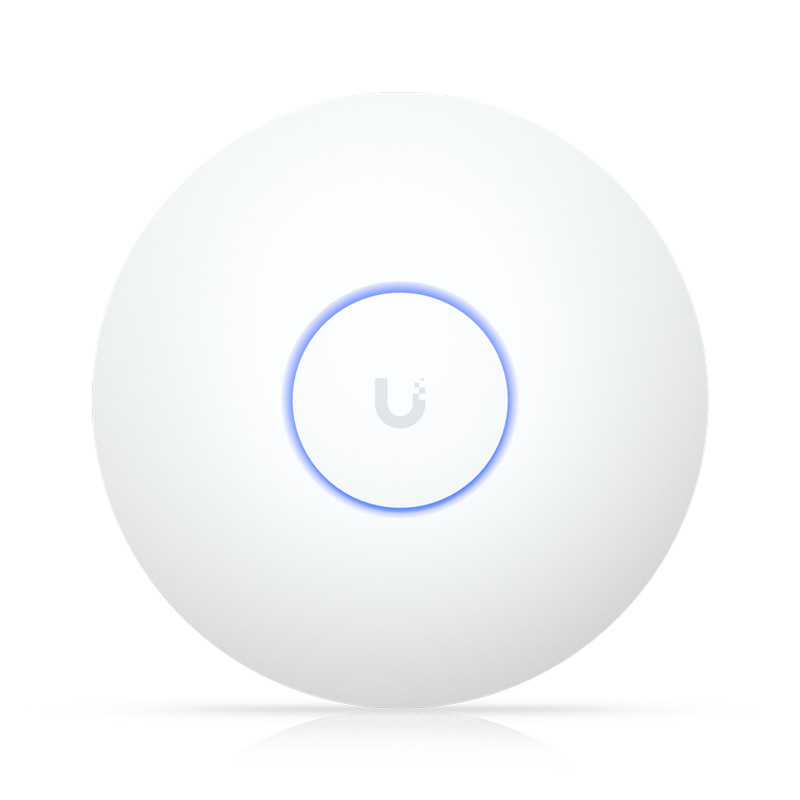

Ubiquiti Dual Band WiFi 7 Long Range (PoE) Access Point

SKU WT5-U7LR

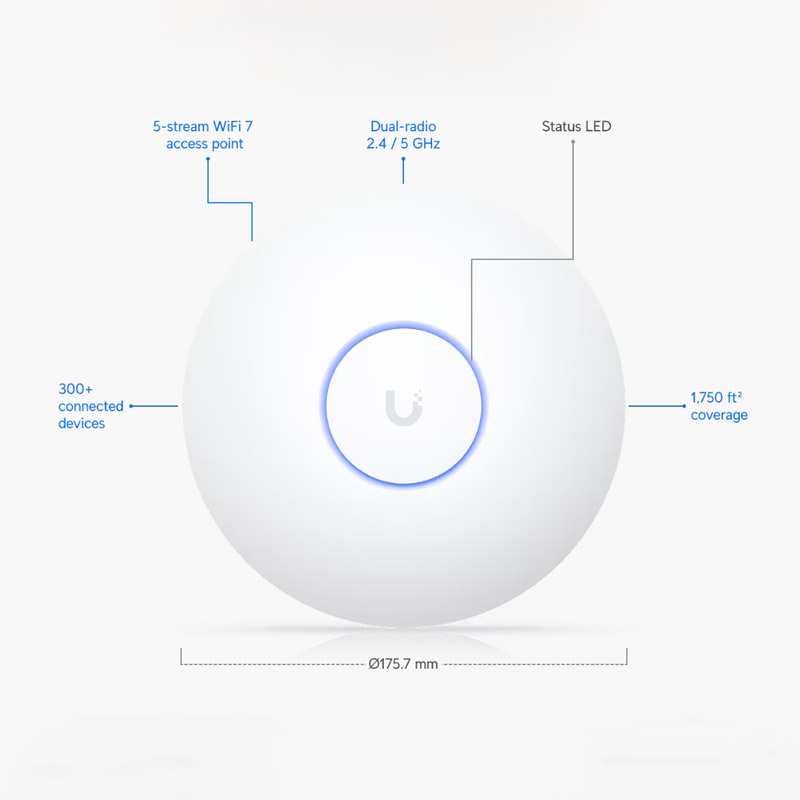

The WT5-U7LR, Ubiquiti UniFi U7 Long Range, is a compact, long range, high speed access point that utilises WiFi 7 technology to provide strong and expansive wireless coverage to enterprise networking environments, up to 160m².

The WT5-U7LR is an ideal wireless access point solution for small to large sized commercial applications.

• 802.11n/ac/ax/be/ WiFi 4/5/6/7 supported WiFi standards
• 2x2 DL/UL MU-MIMO 2.4GHz 26dBm and 3x3 DL/UL MI-MIMO 5GHz 27dBm antennas
• High throughput rates up to 688Mbps (2.4GHz) and 4300Mbps (5GHz)
• Supports over 300 connected devices; concurrent clients

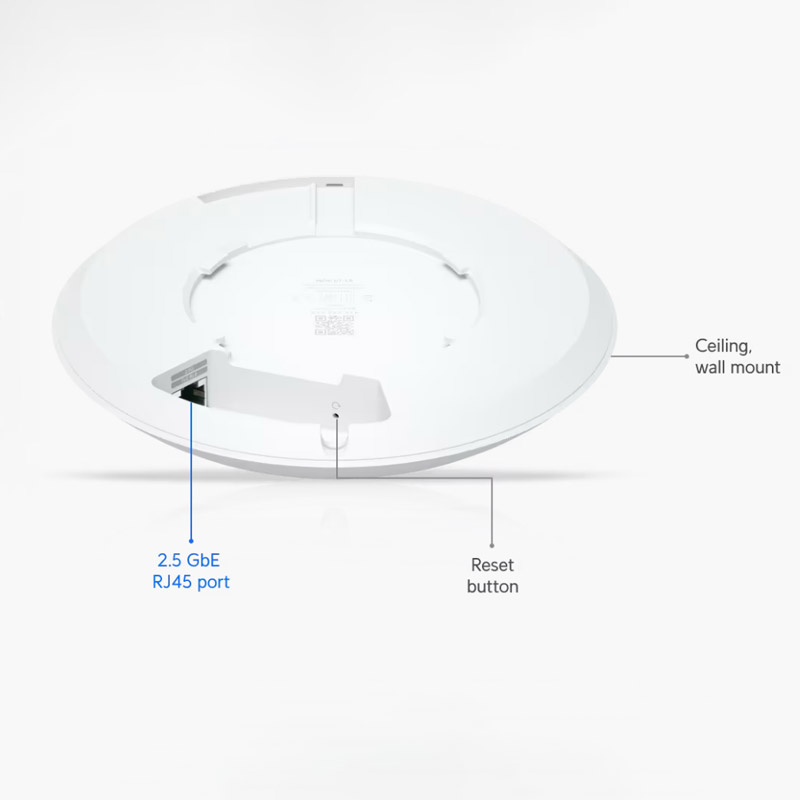

• 2.5GbE Gigabit Ethernet (2500M) RJ45 uplink/networking interface; management also via bluetooth
• PoE powered; 44~57V DC supported voltage range (PoE switch or injector sold separately)
• Polycarbonate construction with stainless steel mount plate
• Overall dimensions Ø176mm x 43mm, 448g total weight

Suggested Products

Suggested product image
30W Power Over Ethernet Injector
VSPOE-IN30
Suggested product image
8-port Unmanaged Gigabit Hi-PoE Ethernet Switch
VSPOE-SWB8G

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

General
Dimensions
Ø176mm x 43mm
Weight
448g
Enclosure
Polycarbonate Enclosure, Stainless Steel Mount Plate
LED Indicators
White/Blue LED
Buttons
Factory Reset Button

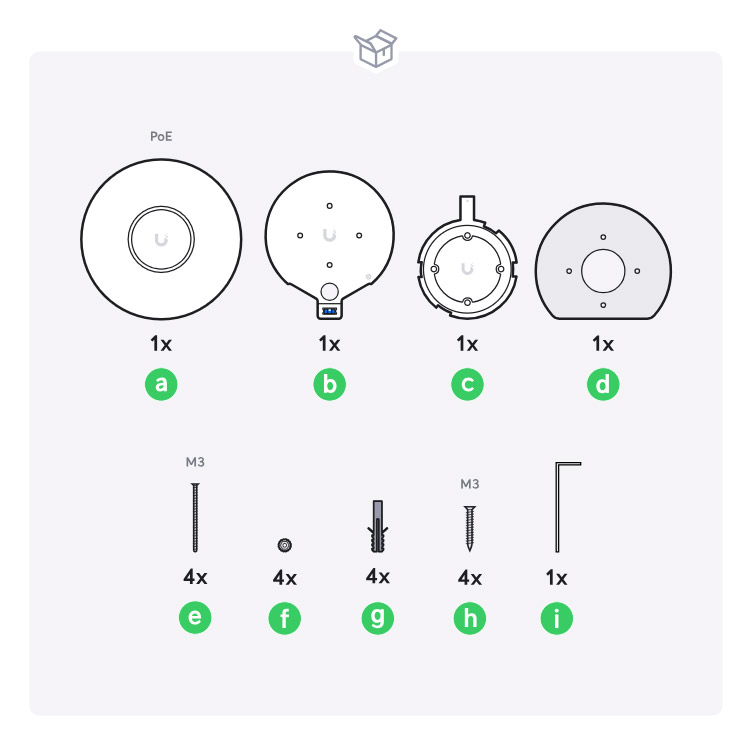

Mounting Components
Wall, Ceiling Mount (included)
Weather Resistance
N/A
Operating Temperature
-30 ~ 50°C
Operating Humidity
5 ~ 95% (non-condensing)
Certifications
CE, FCC, IC
Interface
Network
1 x 2.5GbE RJ45 port
Management
Ethernet
Power
Power Method
PoE
Power Supply
PoE Injector or Switch, 48V 0.5A PoE Adapter (not included)
Supported Voltage Range
42.5 ~ 57VDC
Max. Power Consumption
14W
Performance
Max. Coverage
160m²
Max. Transmission Power
27dBm (5GHz) / 26dBm (2.4GHz)
MIMO Configuration
3 x 3 (5GHz), 2 x 2 (2.4GHz)
Throughput Rate
600Mbps (2.4GHz), 4300Mbps (5GHz)
Antenna Gain
4dBi (2.4GHz), 6dBi (5GHz)
Software
WiFi Standards
802.11n/ac/ax/be
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per Radio
VLAN
802.1Q
Advanced QoS
Per-user Rate Limiting
Guest Traffic Isolation
Supported
Zero-wait DFS
N/A
Concurrent Clients
300+
Management Application
UniFi Network Version 6.0.34 and later
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
90 mm
Height
260 mm
Depth
260 mm
Weight
1.70 kg
