VIP Vision Unmanaged Gigabit 8-Port PoE Switch with 2-Port Uplink (1000M)

Brand logo
SKU VSPOE-SWB8U
Brand logo

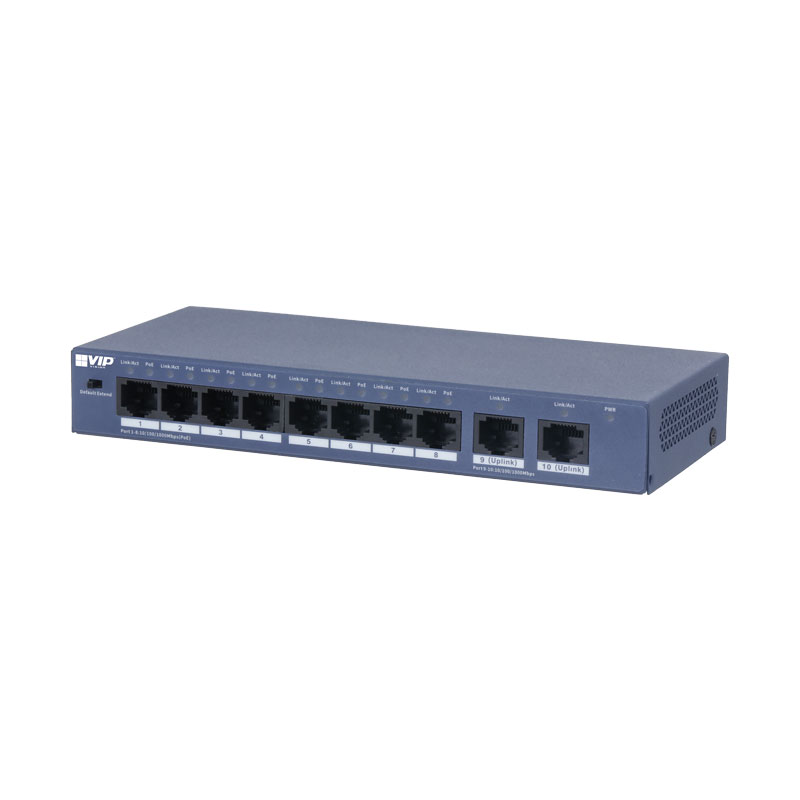

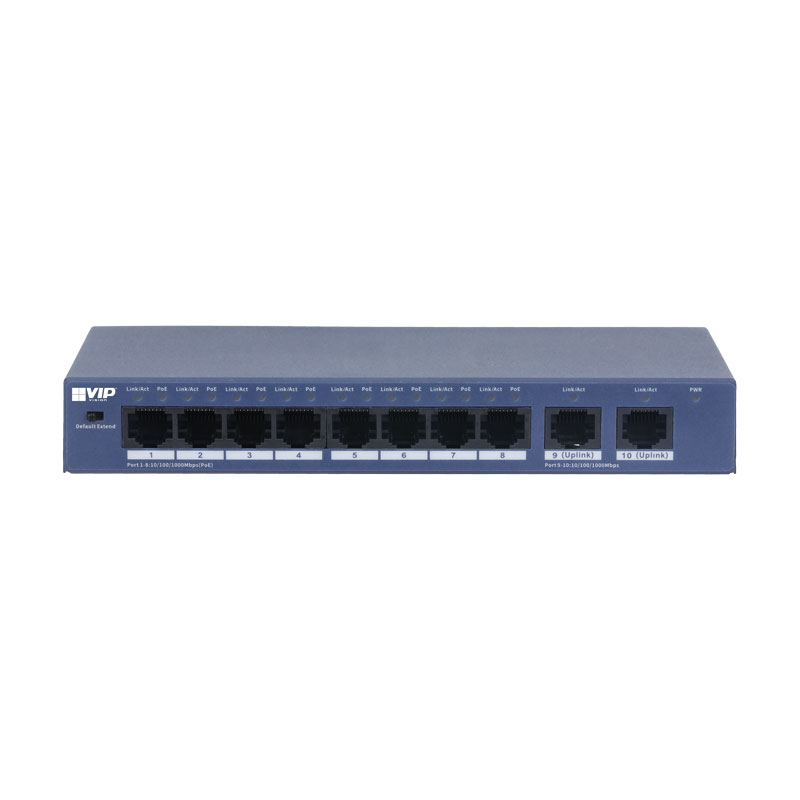

VIP Vision Unmanaged Gigabit 8-Port PoE Switch with 2-Port Uplink (1000M)

SKU VSPOE-SWB8U

This product is Coming Soon. Please contact us for more information.

The VSPOE-SWA8U is a desktop gigabit (1000M) PoE switch with 8 device ports and 2 uplink ports. This switch is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

• 8 x Gigabit PoE+ 10/100/1000Mbps RJ45 Device Ports
• 2 x Gigabit 10/100/1000Mbps RJ45 Uplink Ports
• PoE+ power load up to 30W per port; 90W switch total power load
• Extend mode switch for PoE power via Ethernet up to 250m (10Mbps transfer rate only)
• Unmanaged switch, plug and play for easy deployment
• Professional appearance full metal enclosure
• 53VDC power supply included
• Lightning overvoltage protection up to 6kV

Links and Downloads

SWBU Series Datasheet (PDF) 2.40 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
8 ports
Speed
Gigabit 10/100/1000
Device Ports
8 x 10/100/1000 PoE RJ45
Uplink Ports
2 x 10/100/1000 RJ45
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
Exchange Mode
-
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at)
Switch Power Load
Port 1-4: ≤30W / Total: ≤90W
Management
Switch Management
N/A
MAC Address Capacity
N/A
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range at 10Mbps
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
53VDC
Lightning Protection
Common Mode: 6kV / Differential Mode: 1kV
Mounting Options
Rackmount Tabs (1RU) / Desktop Mount
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
0.3kg
Dimensions
184.6 x 77.4 x 27mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
240 mm
Height
80 mm
Depth
270 mm
Weight
0.90 kg
