16-port Managed Gigabit Hi-PoE Network Switch

Brand logo
SKU VSPOE-SWB16G
Brand logo

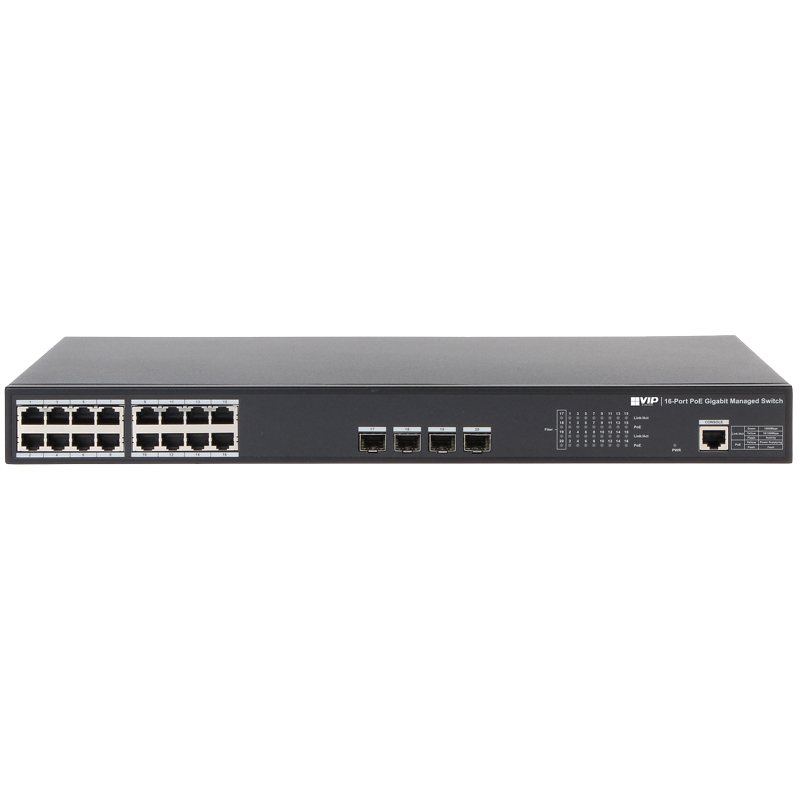

16-port Managed Gigabit Hi-PoE Network Switch

SKU VSPOE-SWB16G

Stock may be limited. Please contact us for availability or for an alternative item.

The VSPOE-SWB16G is a 16-port managed Gigabit PoE network switch. Each port on this L2 managed switch is 10/100/1000 Base-T, allowing for ultra fast 1000Mbps downlink speeds for the most demanding of network applications, including fibre-optics.

Product features:
• 16 x 10/100/1000 PoE+ Base-T ports
• 4 x 1000 Base-X ports for optical fibre integration
• Supports IEEE802.3af and IEEE802.3at protocols
• Transmit power and data up to 250m
• 56Gbps switching capacity
• 29.76Mpps packet forwarding rate
• PoE management with PoE Settings and Event Statistics
• Support web management
• Sturdy full metal casing

Suggested Products

Suggested product image
Power Over Ethernet Extender for Midspans
VSPOE-EX
Suggested product image
60W Power Over Ethernet Midspan
VSPOE-MS
Suggested product image
24-port Managed Gigabit Hi-PoE Network Switch
VSPOE-SWB24G
Suggested product image
8-port Unmanaged Gigabit Hi-PoE Ethernet Switch
VSPOE-SWB8G

Links and Downloads

Specifications

Switch Specification
Ports
16 ports
Speed
Gigabit 10/100/1000
Device Ports
16 x 10/100/1000 Base-T (PoE power supply ports)
Uplink Ports
4 x 1000 Base-X
Switching Capacity
56Gbps
Packet Forwarding Rate
29.76Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at)
Switch Power Load
Each port: ≤30W / Total: ≤250W
Management
Switch Management
Managed
MAC Address Capacity
8K
Virtual LAN
802.1Q Standard VLAN
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
Manual aggregation
Port Mirroring
Many-to-one port mirroring
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Security Features
IP+MAC binding based on port, IP source address protection, ARP detection
System Maintenance
Configuration file upload/download / Supports updated packet upload / System log
Quality of Service
Diff-Serv QoS / 4 output queue per port / 802.1p/DSCP priority mapping
Network Management
WEB (HTTP protocol)
PoE Management
N/A
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 2kV / Differential Mode: 0.5kV
Mounting Options
Rackmount Tabs (1RU)
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
3.75kg
Dimensions
440 x 260 x 44mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
95 mm
Height
510 mm
Depth
385 mm
Weight
5.05 kg
