VSPOE-SWA24C: 24-port Fast Hi-PoE Ethernet Switch

Specifications

Switch Specification

Ports

24 ports

Speed

Fast 10/100

Device Ports

24 x 10/100 Base-T (PoE power supply ports)

Uplink Ports

2 x 10/100/1000 RJ45 Base-T (combo port) / 2 x 1000 SFP Base-X (combo port)

Switching Capacity

8.8Gbps

Packet Forwarding Rate

6.5Mbps

Exchange Mode

Store & forward

Power over Ethernet

PoE

Yes

PoE Protocol

PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)

Switch Power Load

Port 1-2: ≤90W / Port 3-24: ≤30W / Total: ≤375W

Management

Switch Management

N/A

MAC Address Capacity

Virtual LAN

N/A

Network Time Protocol

N/A

Spanning Tree Protocol

N/A

Port Aggregation

N/A

Port Mirroring

N/A

LLDP

N/A

DHCP

N/A

Extend Mode

Up to 250m range at 10Mbps

Flow Control

N/A

Security Features

N/A

System Maintenance

N/A

Quality of Service

N/A

Network Management

N/A

PoE Management

N/A

Environmental

Input Power

100 ~ 240VAC

Lightning Protection

Common Mode: 4kV / Differential Mode: 2kV

Mounting Options

Rackmount Tabs (1RU)

Operating Environment

Rackmount Tabs / Desktop mount

Weight

3.62kg

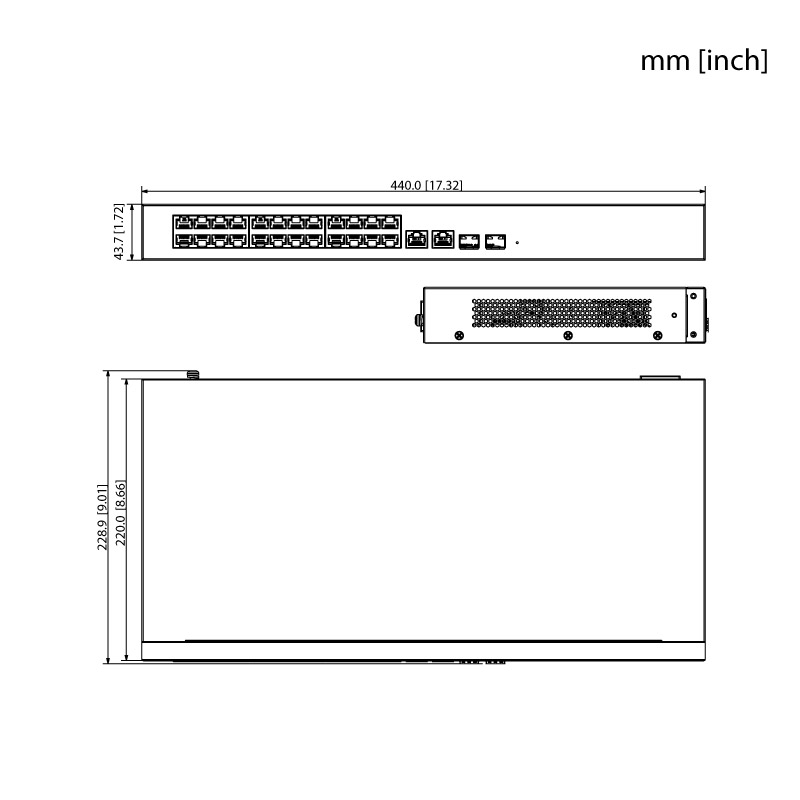

Dimensions

440 x 220 x 44mm

Warranty (Years)
