Ultimate AI Series 4.0MP Motorised Turret

Brand logo
SKU VSIPU-4DIRMG-I
Brand logo

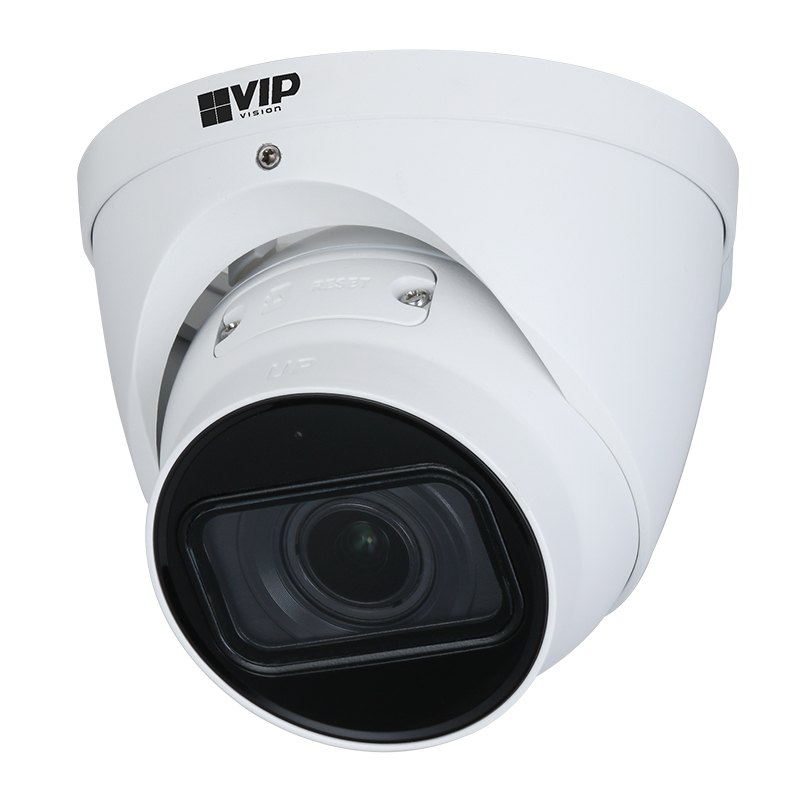

Ultimate AI Series 4.0MP Motorised Turret

SKU VSIPU-4DIRMG-I

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
• H.265 encoding for efficient storage & streaming
• 40m infrared range; true day/night (auto ICR)
• Back/highlight compensation & true WDR (140dB)
• MicroSD slot for recording at the edge up to 256GB
• Internal face detection & capture to extend recognition
• Perimeter Protection to identify people & vehicles
• Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR
• Intelligent AI-enhanced people counting for retail capacity management and flow control
• Extend PoE up to 800m (requires ePoE NVR/switch)
• IP67 weather rated

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C

Links and Downloads

Specifications

Camera
Image Sensor
1/1.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.003 Lux / F1.8 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 114°~47°, Vertical: 62°~26°
Focus
Auto Focus / 1.2m Min. Focus Distance
DORI
Detect (25px/m)
58m (wide) / 131m (tele)
Observe (63px/m)
23m (wide) / 52m (tele)
Recognise (125px/m)
12m (wide) / 26m (tele)
Identify (250px/m)
6m (wide) / 13m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H / MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built in MIC/ Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption
<6.9W
Operating Conditions
-30°C ~ +60°C, ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Ultimate AI Series
Camera Type
Turret
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
Yes
Dimensions
Ø122mm x 108mm
Net Weight
0.74kg
Other
Category
Network Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
135 mm
Depth
155 mm
Weight
0.74 kg
