Camera
Image Sensor
Channel 1–3: 1/2.8" CMOS
Max. Resolution
1920 × 1080
Effective Pixels
1920 (H) × 1080 (V)
RAM / ROM
2GB / 4MB
Min Illumination
0.0004 lux @ F1.6 (B/W, 30 IRE)
S/N Ratio
>56 dB
Infrared System
Built-in IR illumination, up to 120 m
Lens
Lens Type
Fixed-focal
Lens / Iris
Channel 1: 3.6 mm F1.6, Channel 2: 12 mm F2.0, Channel 3: 25 mm F2.8, Iris: Fixed (Channel 1–3)
Field of View
Channel 1: H 85.9°, V 46.7°, Channel 2: H 25.7°, V 14.4°, Channel 3: H 13°, V 7.4°
Focus
Fixed focus
DORI
Detect (25px/m)
Ch 1: 53.7m, Ch 2: 172.4m, Ch 3: 331.0m
Observe (63px/m)
Ch 1: 21.5m, Ch 2: 69.0m, Ch 3: 132.4 m
Recognise (125px/m)
Ch 1: 10.7m, Ch 2: 34.5m, Ch 3: 66.2m
Identify (250px/m)
Ch 1: 5.4m, Ch 2: 17.2,m Ch 3: 33.1m
Video
Resolution
Channel 1–3: 1080p (1920 × 1080)
Frame Rate (Main)
1920 × 1080 @ 1–25 fps
Frame Rate (Sub)
704 × 576 @ 1–25 fps
Frame Rate (Third)
N/A
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG (MJPEG sub-stream only)
Bit Rate
3 kbps – 8192 kbps
Bit Rate Control
VBR / CBR
Day/Night
Auto (ICR) / Colour / B/W
Lighting Compensation
BLC / HLC / WDR / SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip / Rotation (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart IR, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Human & Vehicle classification supported)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Change, Network Disconnection, IP Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Smart search via NVR, search tripwire & intrusion events by human or vehicle
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ONVIF (S/G/T), CGI, SDK
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Interface
Video Interface
Network (IP)
Audio Interface
1 In / 1 Out, built-in microphone and speaker (two-way audio)
Alarm Interface
2 In / 2 Out
RS485
N/A
Edge Storage
Micro SD card slot, up to 1 TB
Interoperability
ONVIF (Profile S / G / T), CGI, SDK
Environmental
Power Supply
12 V DC ±30%, PoE+, ePoE
Power Consumption
4.3 W (12 V DC) / 5.5 W (PoE)
Operating Conditions
Temperature: –40 °C to +60 °C, Humidity: ≤95% RH (non-condensing)
Ingress Protection
IP67
Vandal Resistance
IK10
Series
VIP Vision Triple-Sight
Camera Type
Triple-Sight AI Perimeter Protection Network Camera
Housing
Metal
Pan/Tilt/Rotation
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
ePoE
Yes

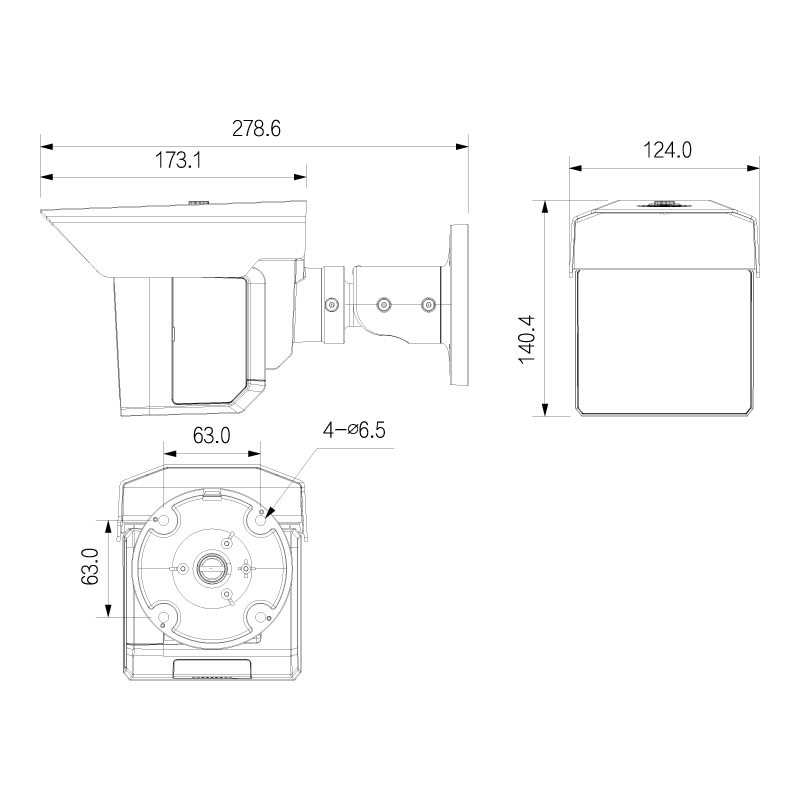

Dimensions
278.6 × 124.0 × 140.4 mm (L × W × H)
Net Weight
2.0 kg
Warranty (Years)
3
