Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) x 1440 (V)
RAM / ROM
128MB / 128MB
Min Illumination
0.01 lux/F1.6 (Color), 0.001 lux/F1.6 (B/W, 30 IRE), 0 lux (IR on)
S/N Ratio
> 40dB
Illumination System
1 x 20m Warm White LED, 1 x 30m Infrared LED, Auto/Manual Control, Smart Dual Light: Night infrared illumination until triggered via AI person/vehicle detection (SMD)
Lens
Lens Type
Fixed
Lens / Iris
3.6mm F1.6 Fixed Lens
Field of View
Horizontal: 78.4°, Vertical: 42.4°, Diagonal: 92.4°
Focus
Fixed Focus, 1.5m Min. Focus Distance
DORI
Detect (25px/m)
78m
Observe (63px/m)
31m
Recognise (125px/m)
16m
Identify (250px/m)
8m
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 15fps)
Frame Rate (Sub)
640 x 360 (1 ~ 15fps)
Frame Rate (Third)
N/A
Video Compression
H.265
Bit Rate
32 ~ 4096Kbps
Bit Rate Control
Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / Digital WDR
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D Noise Reduction
Picture Control
180° Image Rotation
AI / Intelligent Functions
Human/Vehicle Detection
SMD (Smart Motion Detection)
Face Recognition
N/A
Face Capture
N/A
People Counting
N/A
Number Plate Recognition
N/A
Auto Tracking
N/A
Video Functions
Motion Detection
Event Triggers
Filter motion detection alarms, recognises humans and vehicles from other moving objects
Intelligent Search
AI Event Search
PTZ
Pan / Tilt Range
N/A
PTZ Speed
N/A
Modes / Presets
N/A
Start-up Action
N/A
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic & Loudspeaker
Alarm Interface
Built-in White LED Spotlight & Deterrence Siren; PIR Motion Detector
RS485
N/A
Edge Storage
MicroSD card slot (up to 512GB), includes 128GB microSD card
Interoperability
N/A
Environmental
Power Supply
12VDC
Power Consumption
Super Power Saving Mode: 36mW (4G keep-alive), Always-on-Video Mode: 260mW (1 frame every 2 seconds, SD card recording, 4G keep-alive), Performance Mode 1: 1.33W (4G streaming, SD card recording, PTZ static, illuminator off)
Operating Conditions
-30°C ~ +60°C, ≤95% Relative Humidity
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Specialist AI Series
Camera Type
Solar
Housing
Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
N/A

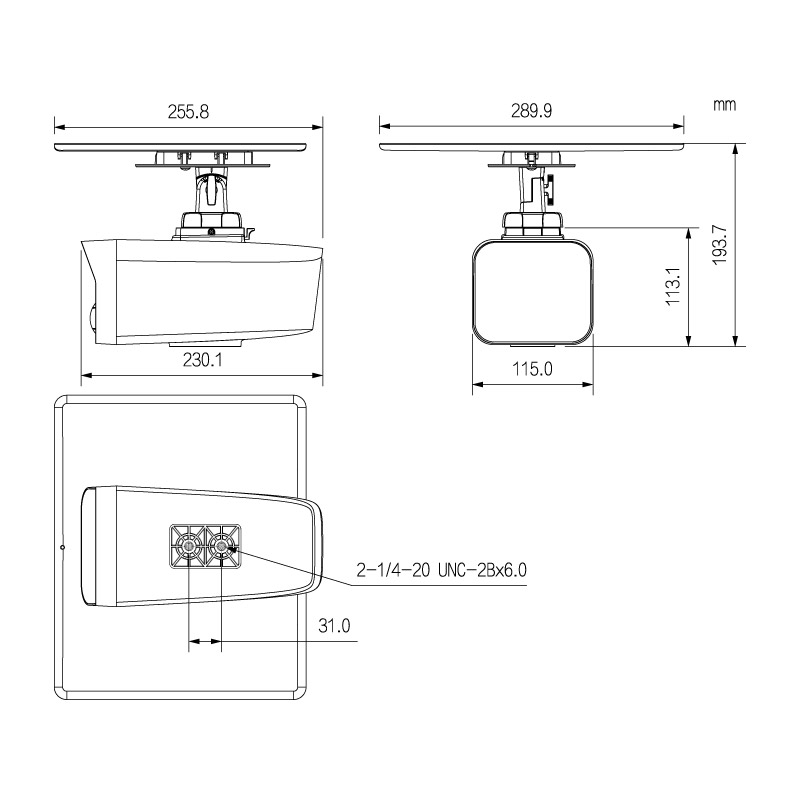

Dimensions
256 x 290 x 197mm (Camera), 285 x 235 x 2.5mm (Panel) (L x W x H)
Net Weight
1.36kg
Other
4G Carrier Frequency
B1/3/5/7/8/20/28 (FDD)
Battery
6.4V 64Wh LiFePO4 Battery (Lithium Iron Phospate)
Camera Uptime
AOV Mode: 10 Days (30 daily alarms <15s each) / Performance Mode: 2 Days (continuous recording)
Solar Panel
Monocrystalline Silicon Solar Panel, 10.5W Max Power, >1000 Cycles Lifespan
Warranty (Years)
4
