Camera
Image Sensor
Overview: 1/2.8’’ CMOS, PTZ: 1/2.8’ CMOS
Max. Resolution
Overview: 3.0 Megapixel, PTZ: 3.0 Megapixel
Effective Pixels
Overview: 2304 (H) x 1296 (V) PTZ: 2304 (H) x 1296 (V)
RAM / ROM
Overview: 256 MB / 256 MB, PTZ: 256 MB / 256 MB
Min Illumination
0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)
S/N Ratio
> 56dB
Infrared System
Overview: 4 x LED Spotlight (Warm White) 30m range, PTZ: 4 x LED Spotlight (Warm White) 50m range
Lens
Lens Type
Fixed
Lens / Iris
Overview: 2.8mm F1.0 Fixed Lens PTZ: 3.6mm & 8.4mm F1.0 Fixed Lenses
Field of View
Overview: Horizontal: 94°, Vertical: 52°, Diagonal: 110°, PTZ: 3.6mm Lens: Horizontal: 82°, Vertical: 44°, Diagonal: 96°, 8.4mm Lens: Horizontal: 15.1°, Vertical: 8.4°, Diagonal: 17.8°
Focus
Overview: Fixed / 1.0m Min. Focus Distance PTZ: Auto/Semi-Auto/Manual Control, 3.6 mm: 1.7m, 8.4 mm: 6m Min. Focus Dist
DORI
Detect (25px/m)
Overview: 40m, PTZ: 51m (W), 1200m (T)
Observe (63px/m)
Overview: 16m, PTZ: 20m (W), 47m (T)
Recognise (125px/m)
Overview: 8m, PTZ: 10m (W), 24m (T)
Identify (250px/m)
Overview: 4m, PTZ: 5m (W), 12m (T)
PTZ
Pan / Tilt Range
Pan: 0 ~ 350° (endless) / Tilt: -0 ~ 90°
PTZ Speed
Preset: Pan: 40°/s, Tilt: 40°/s, Manual: Pan: 40°/s, Tilt: 40°/s
Modes / Presets
Up to 50 presets / 8 Tour (32 presets per tour)
Start-up Action
Supported
Video
Resolution
Overview: 3.0MP (2304 x 1296) to 640 x 360, PTZ: 3.0MP (2304 x 1296) to 640 x 360
Frame Rate (Main)
Overview: 3.0MP/1080p/720p/640 x 360 (15 fps), PTZ, 3.0MP/1080p/720p/640 x 360 (15 fps)
Frame Rate (Sub)
N/A
Frame Rate (Third)
N/A
Video Compression
Smart H.265+
Bit Rate
H265: 54 kbps–1280 kbps
Bit Rate Control
Variable bit rate (VBR)
Day/Night
Color and B&W Day/Night
Lighting Compensation
Digital WDR
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
180° Image Rotation
Artificial Intelligence
Face Recognition
N/A
Face Capture
N/A
Perimeter Protection
Tripwire & intrusion (add recognition of humans & vehicles)
Auto Tracking
Supported
Metadata
Search via people or vehicle detection events
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Motion detection
Event Triggers
Filter motion detection alarms, recognises humans and vehicles from other moving objects
Region of Interest
N/A
Optical Defog
N/A
Digital Zoom
Supported
Privacy Masking
N/A
Image Stabilisation
N/A
Network
Ethernet
N/A
Protocol
N/A
Streaming Method
N/A
Max. User Access
N/A
Interface
Video Interface
N/A
Audio Interface
Built-in Mic & Loudspeaker
Alarm Interface
Built-in White LED Spotlight & Deterrence Siren
RS485
N/A
Edge Storage
MicroSD card slot (up to 512GB), includes 128GB microSD card
Interoperability
N/A
Environmental
Power Supply

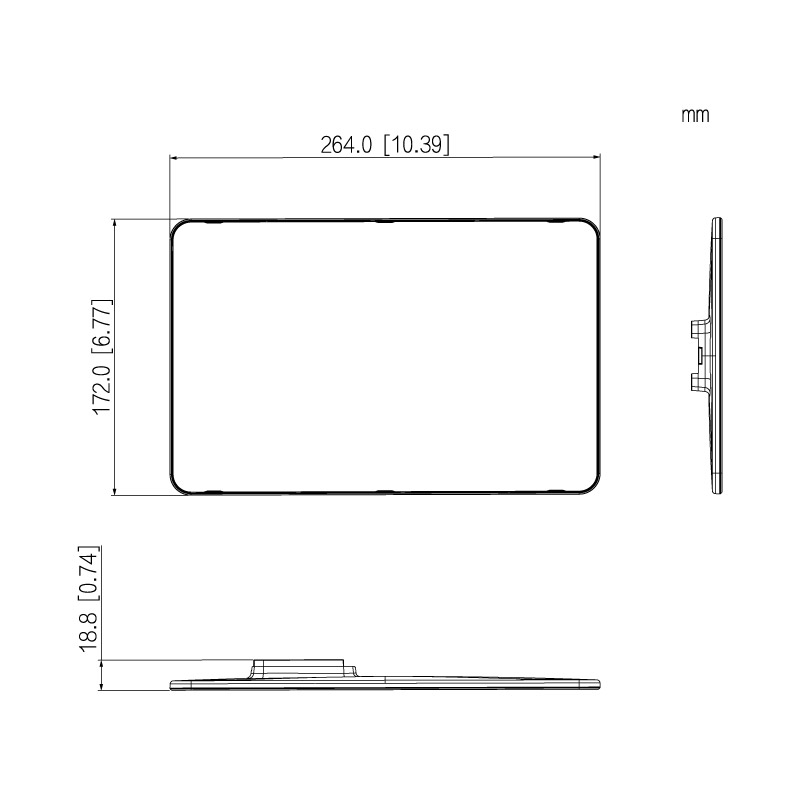

65Wh lithium battery / 8W solar panel / Supports USB Type-C power supply
Power Consumption
Super Power Saving Mode: 40 mW (4G keep-alive), Always-on-Video Mode: 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive), Performance Mode 1: 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off), Performance Mode 2: 3.7 W (4G streaming, SD card recording, PTZ static, illuminator on), Max. Power Consumption: 8.0W (4G streaming, SD card recording, PTZ moving, illuminator on, speaker on)
Operating Conditions
Camera & Solar Panel: –10 °C ~ +50 °C / ≤95% RH, battery: –20 °C ~ +60 °C / ≤95% RH
Ingress Protection
IP66, TVS 2000V Lightning Proof, Surge Protection, Voltage Transient Protection
Vandal Resistance
N/A
Series
Specialist AI Series
Camera Type
Turret & PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No

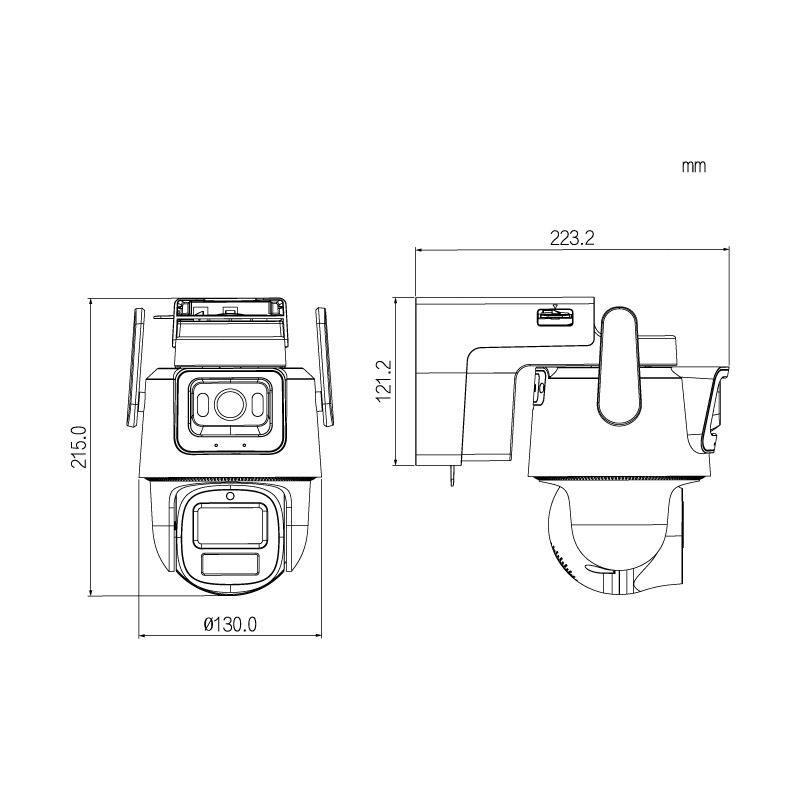

Dimensions
223.2 mm x 130.0 mm x 215.0 mm
Net Weight
1.8 kg
Other
4G Carrier Frequency
B1/3/5/7/8/20/28 (FDD), B38/40/41 (TDD)
Management Software
DMSS (Android & IOS)
Transmission Power
4G: Power Class 3: 23 dBm ± 2.7 dB
Warranty (Years)
4
