Specialist AI Series 4.0MP 4x Zoom PTZ Dome

Brand logo
SKU VSIPPTZ-4IRM-I
Brand logo

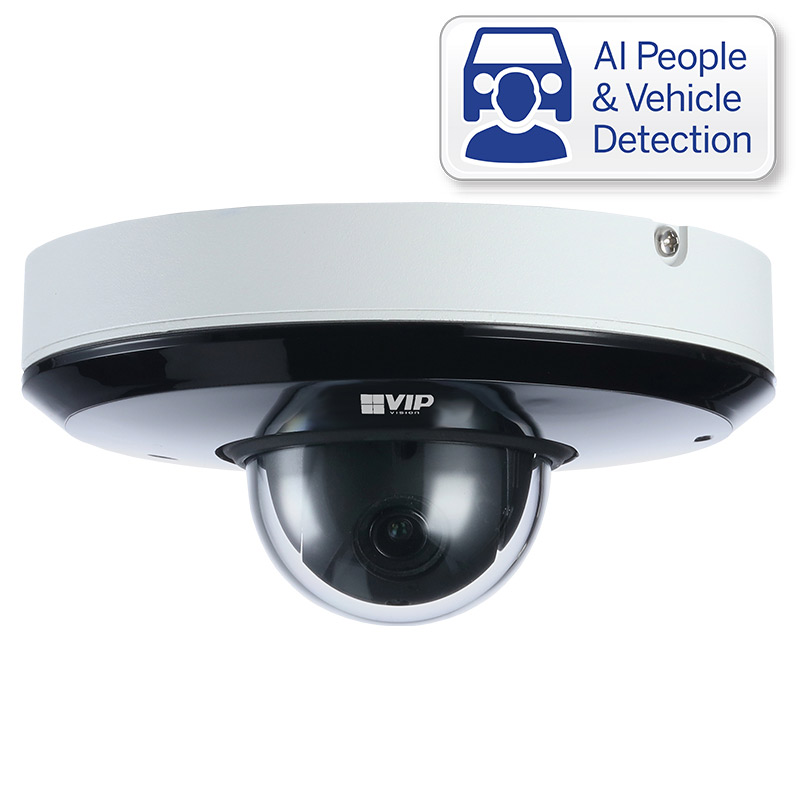

Specialist AI Series 4.0MP 4x Zoom PTZ Dome

SKU VSIPPTZ-4IRM-I

Small in size but big on features, the PTZ AI Dome combines the flexibility and coverage of PTZ with the power of smart AI technology. The PTZ AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time.

Camera features:
• Stream up to 4.0MP (2560 x 1440) at 25fps
• 4x optical zoom lens (96.9 ~ 31.6° H viewing angles)
• H.265 encoding for efficient storage & streaming
• Low light colour performance at 0.005lx; 15m infrared
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• 355° panning with tilt adjust; flip 180°
• MicroSD card slot for recording up to 256GB
• Supports power via PoE (802.3af)
• IP66 weather & IK08 vandal rated resistant housing

Suggested Products

Suggested product image
Professional AI 32 Channel Network Video Recorder with ePoE (320Mbps)
NVR32PRO16P-I
Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA107
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA120
Suggested product image

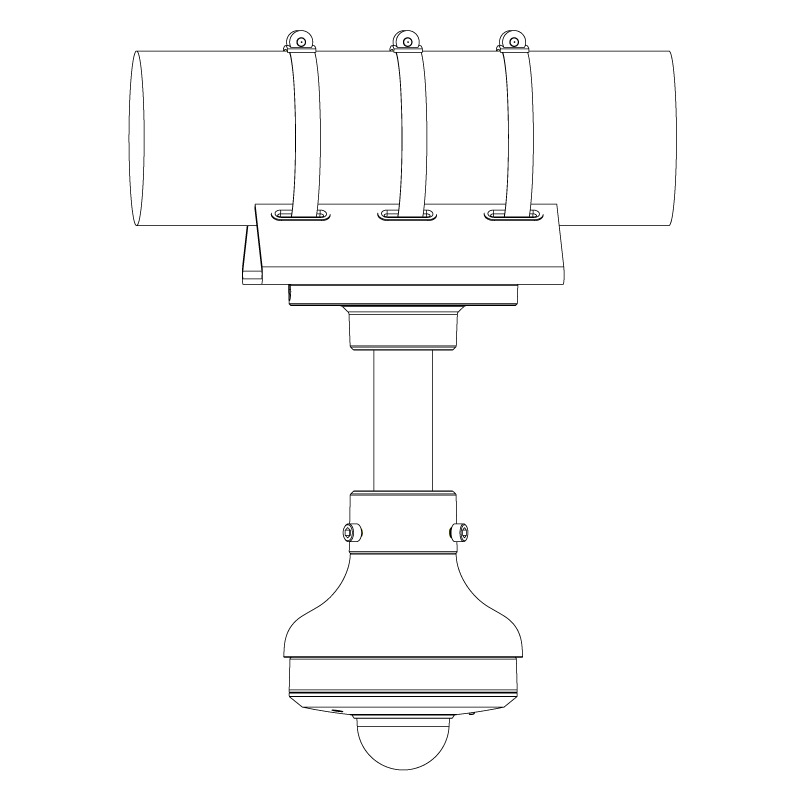

Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image

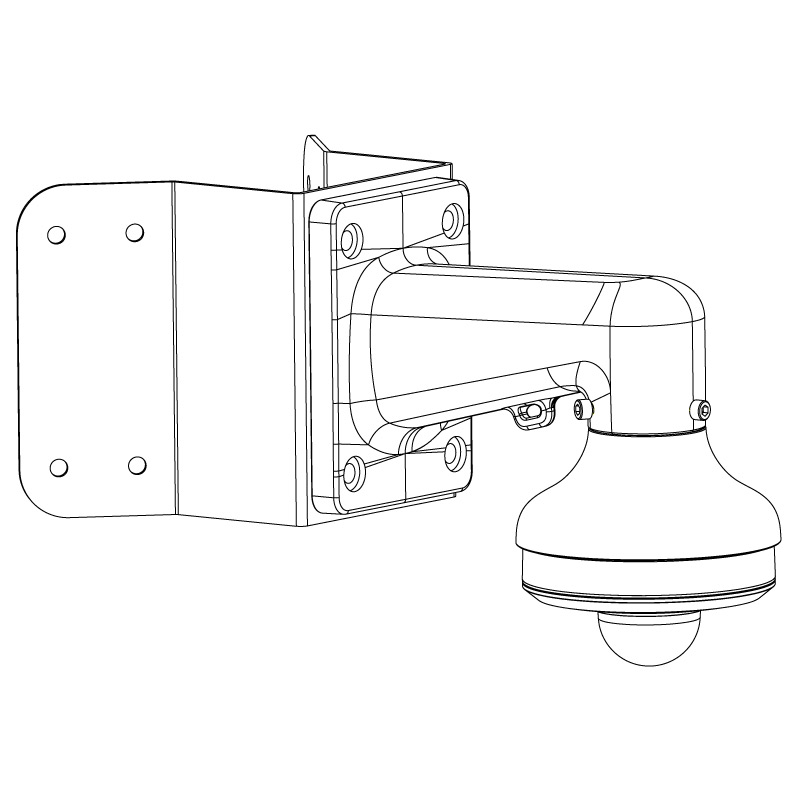

Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image

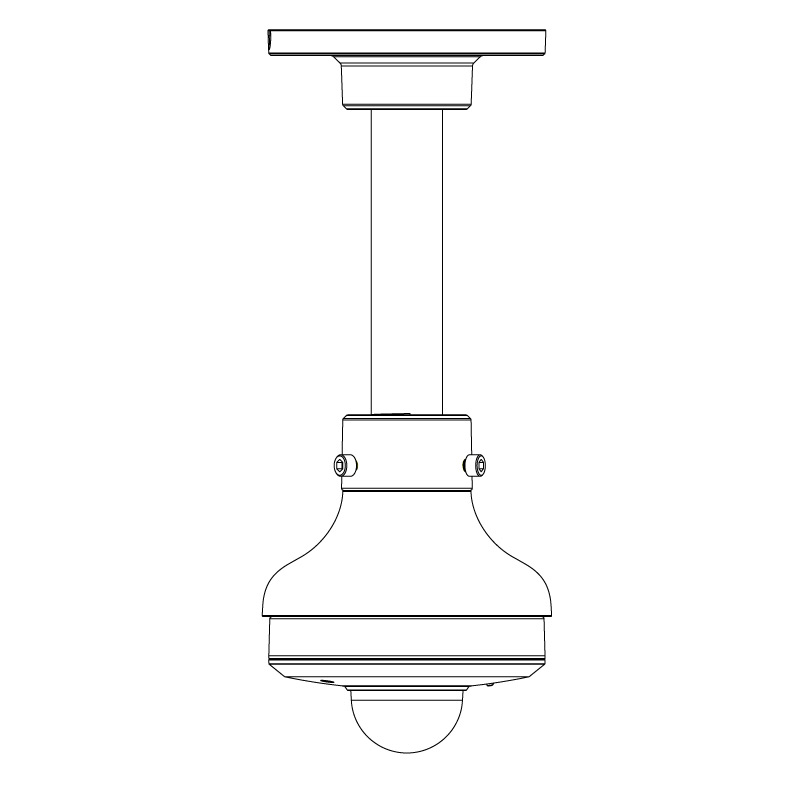

760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image

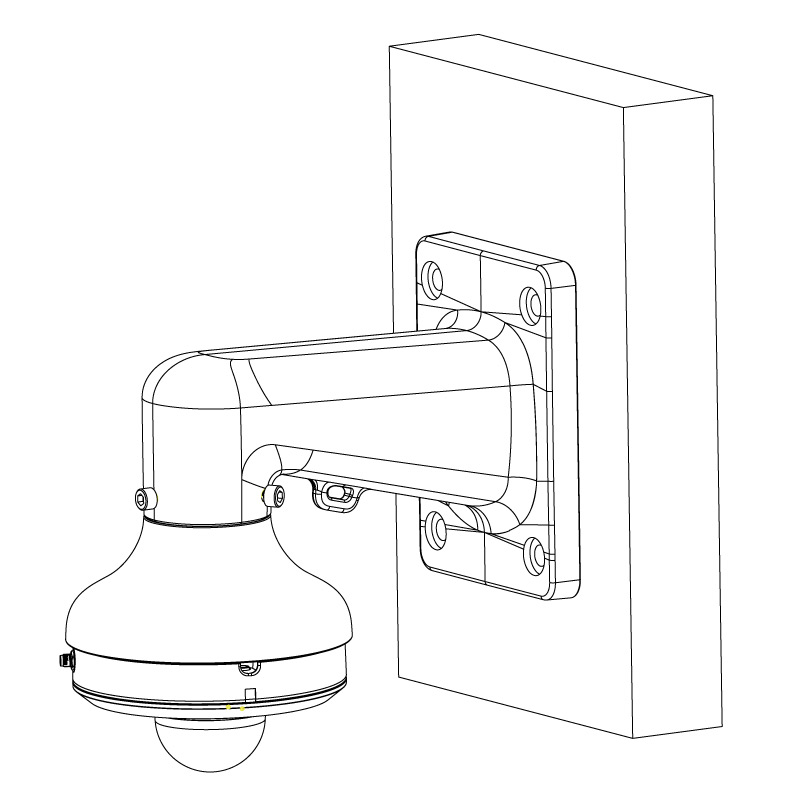

Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Specifications

Camera
Image Sensor
1/2.8" 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) x 1440 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
S/N Ratio
N/A
Infrared System
3 x Infrared LED, 15m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
Field of View
Horizontal: 97°~32°, Vertical: 51°~18° (4x Optical Zoom)
Focus
Auto/Manual / 0.2m Min. Focus Distance
DORI
Detect (25px/m)
147m
Observe (63px/m)
59m
Recognise (125px/m)
29m
Identify (250px/m)
15m
PTZ
Pan / Tilt Range
Pan: 0 ~ 355° / Tilt: 5 ~ 90°
PTZ Speed
Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
Modes / Presets
Up to 300 presets / 8 tour
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
4.0MP (2560 x 1440) to CIF(352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
D1 (1 ~ 25fps) / 720p (1 ~ 25fps)
Video Compression
H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG (Sub Stream); H.265+; H.264+
Bit Rate
H.264 /H.265 /MJPEG: 3 ~ 20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
Face Capture
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
N/A
Metadata
People Counting
Supports Line Crossing/Region/Queuing People Counting, Report Generation
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Event Triggers
Region of Interest
Optical Defog
Digital Zoom
Privacy Masking
Image Stabilisation
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / FTP / P2P
Interoperability
ONVIF/ CGI
Environmental
Power Supply
12VDC / 1.5A / PoE (802.3af)
Power Consumption
<3W / <8.5W (IR on)
Operating Conditions
-30° ~ +60° C / ≤95% RH
Ingress Protection
IP66
Vandal Resistance
IK08
Series
Specialist AI Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
N/A
ePoE
No
Dimensions

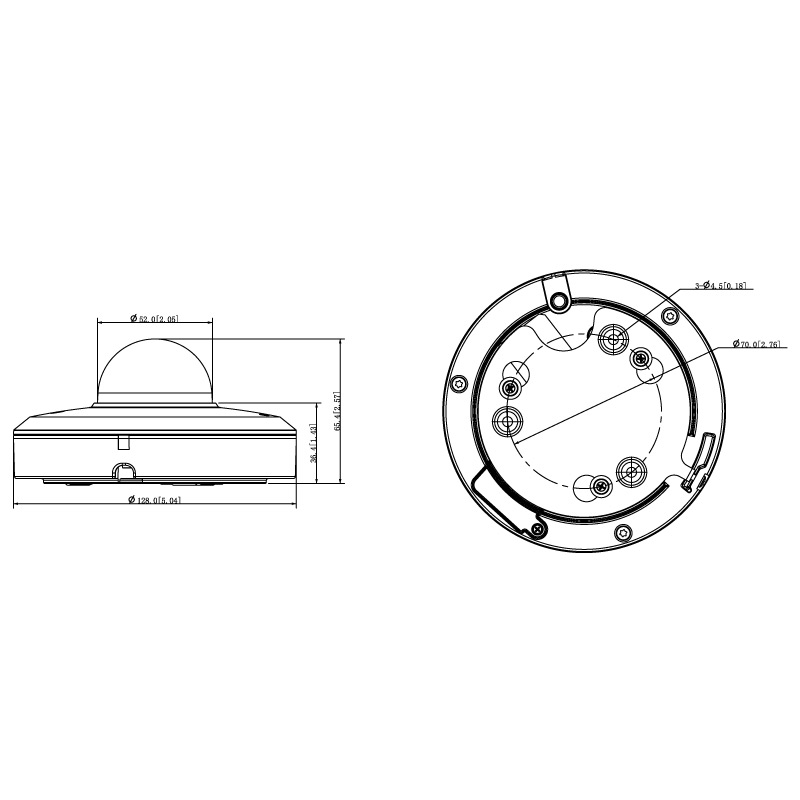

Ø128mm x 65mm
Net Weight
0.49kg
Other
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
135 mm
Height
80 mm
Depth
135 mm
Weight
0.70 kg
