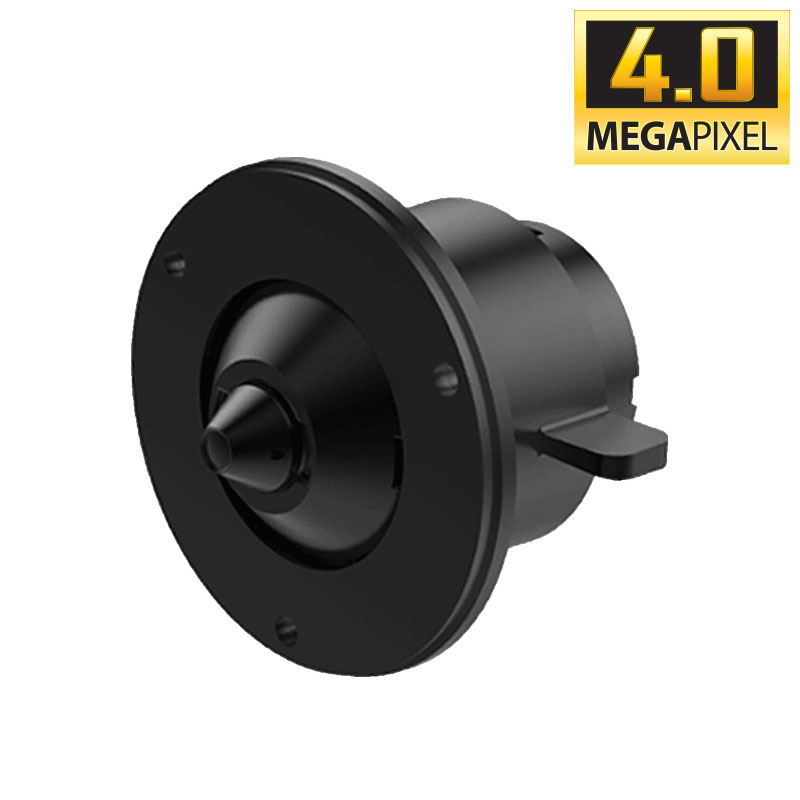

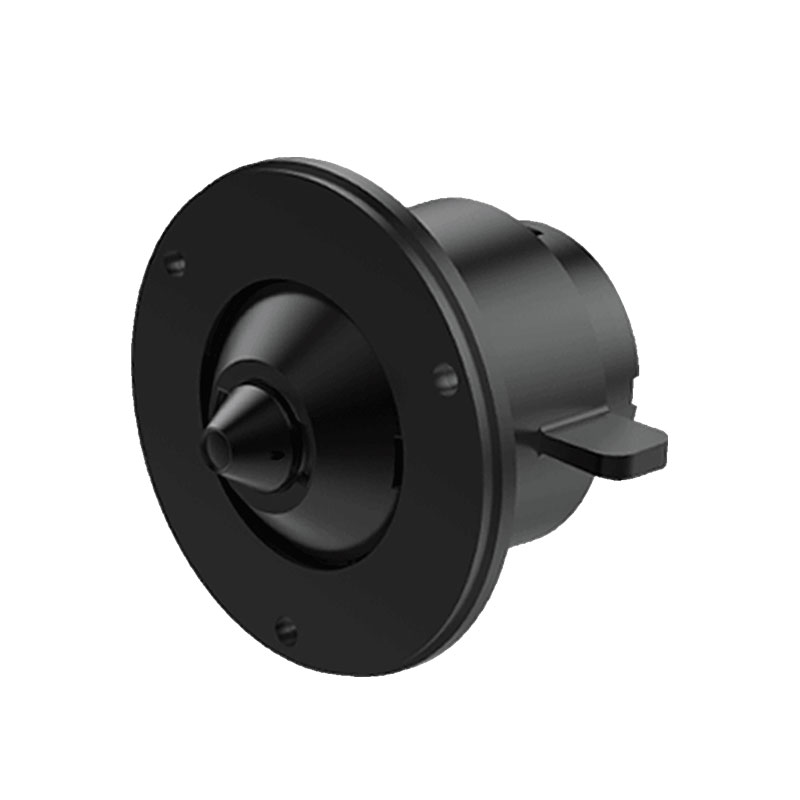

Pinhole Series 4.0MP Pinhole Camera - Lens Module

SKU VSIPPH-4L

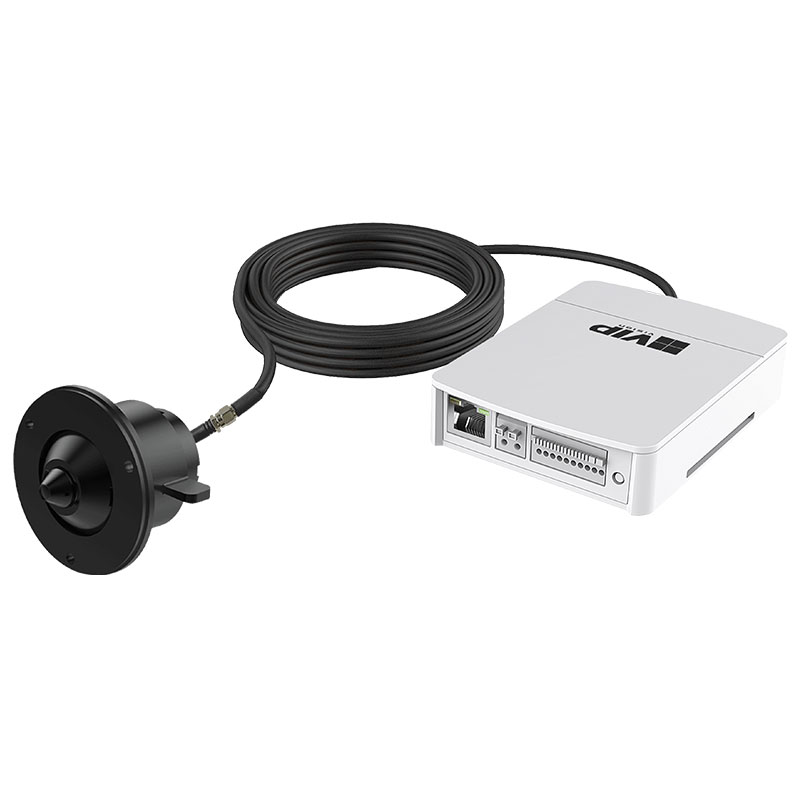

The VSIPPH-4L is a pinhole camera lens, requiring a VIP Vision main control unit. Designed for low profile surveillance applications, Pinhole Series cameras are ideal for controlled ingress points, in-shelf surveillance, in vehicles, ATMs & more.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with wide 101° viewing angle
• Low light colour at 0.005 lux
• Backlight/highlight compensation with true WDR (120dB)
• Day/night (electronic), 3D noise reduction & auto white balance
• Smart detection support incl. face detection, tripwire & intrusion
• Audio & alarm input/output
• MicroSD card slot for at-the-edge recording, up to 256GB
• Power via 12VDC or Power over Ethernet (802.3af)

*Requires the VSIPPH-4M main control unit.

Suggested Products

Suggested product image
Pinhole Series 4.0MP Pinhole Camera - Main Module
VSIPPH-4M

Links and Downloads

Specifications

Camera
Image Sensor
1/2.7” 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.005 Lux at F2.0 (Colour) / 0.0005 Lux at F2.0 (B&W)
S/N Ratio
> 56dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed Lens
Field of View
Horizontal: 101°, Vertical: 57°
Focus
Fixed / 0.8m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
61m
Observe (63px/m)
24m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream)
Bit Rate
H.265: 3~20480Kbps / H.264: 3~20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
Yes
Intelligent Functions
Face Detection, Tripwire, Intrusion, Fast Moving, Loitering Detection, People Gathering, Parking Detection, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output (3.5mm jack) / Compression: G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface
2 Inputs (5mA 3V-5VDC) / 2 Output (1000mA 30VDC / 500mA 50VDC)
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / FTP / SFTP / NAS
Interoperability
ONVIF (Profile S/Profile G/Profile T) / CGI / P2P / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Basic: 2.4W (12VDC), 3W (PoE) / Max. (AI + WDR): 3.9W (12VDC), 4.8W (PoE)
Operating Conditions
-40° ~ +60° C / ≤95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions

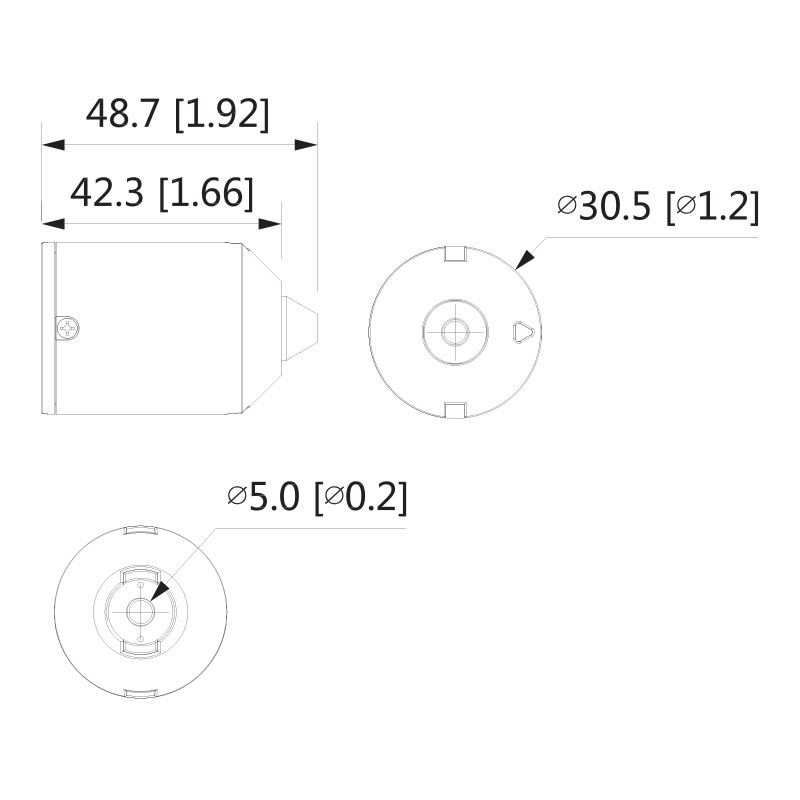

Camera: Ø30.5 mm x 48.7 mm / Control Unit: 100 x 83 x 24mm
Net Weight
0.21kg
Other
RS232
1 Port
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
145 mm
Height
70 mm
Depth
185 mm
Weight
0.49 kg
