Camera
Image Sensor
1/2.7’’ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 256MB
Min Illumination
0.007 Lux/F1.4 (Color), 0.0007 lux/F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio
> 56dB
Infrared System
4x warm LED light (40m range), 2 x Infrared LED (50m range), Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 114°~32°, Vertical: 58°~17°
Focus
Auto Focus / 0.1m Min. Focus Distance
DORI
Detect (25px/m)
85m (wide) / 280m (tele)
Observe (63px/m)
34m (wide) / 112m (tele)
Recognise (125px/m)
17m (wide) / 56m (tele)
Identify (250px/m)
8m (wide) / 28m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+; Smart H.264+; AI H.265; AI H.264
Bit Rate
H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method
Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 512GB) / NAS
Interoperability
ONVIF / P2P / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Max: <8.2W (12VDC), 9.8W (PoE)
Operating Conditions
-30°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series

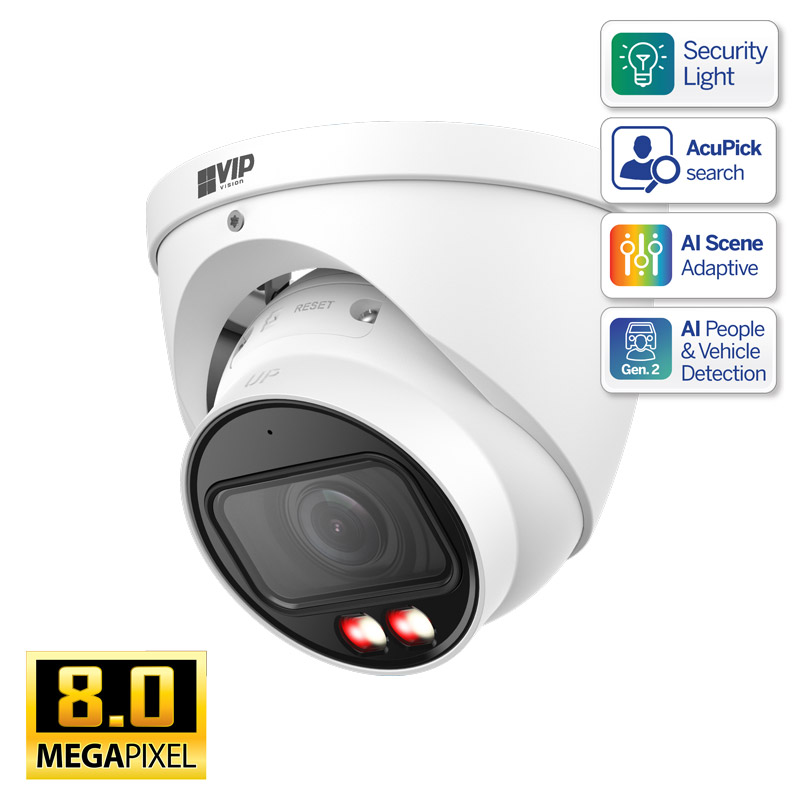

Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø108mm x 122mm
Net Weight
0.69kg
Warranty (Years)
4
