Professional AI Series 8.0MP 180° Active Deterrence Turret

Brand logo
SKU VSIPP-8DD-ID3
Brand logo

Professional AI Series 8.0MP 180° Active Deterrence Turret

SKU VSIPP-8DD-ID3

This product is Coming Soon. Please contact us for more information.

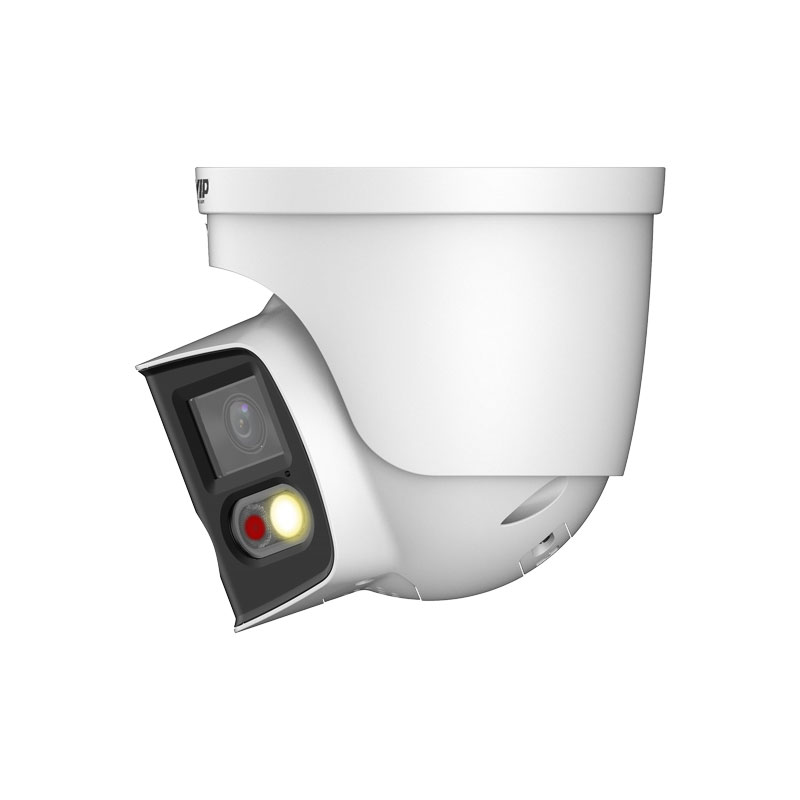

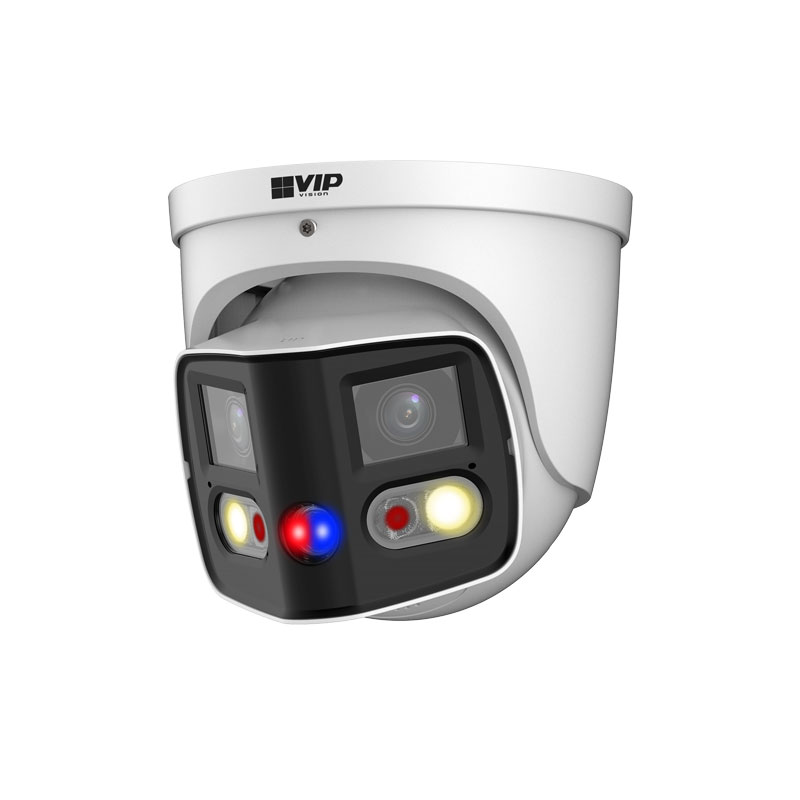

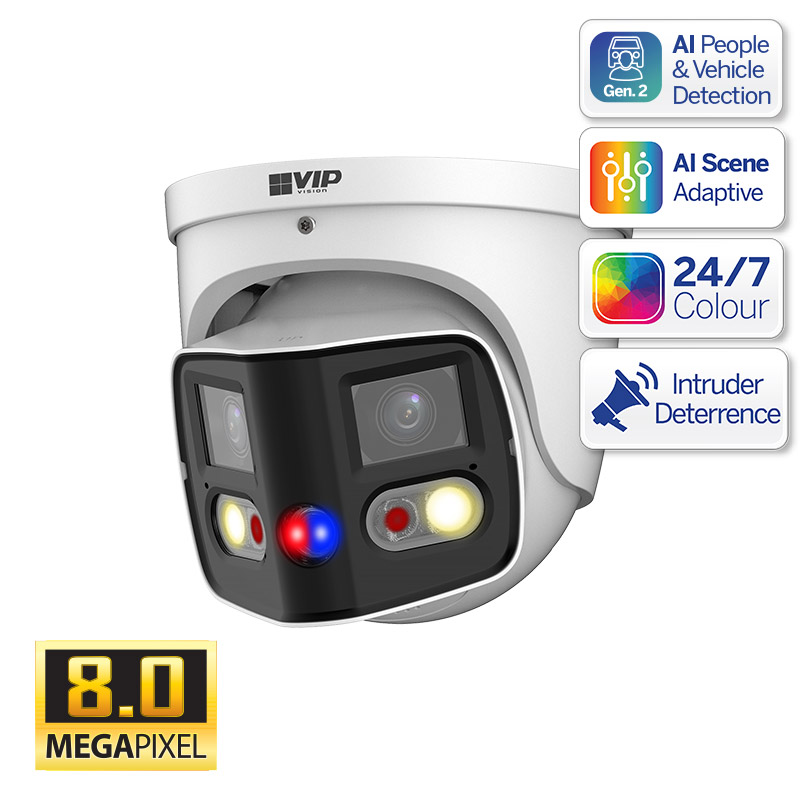

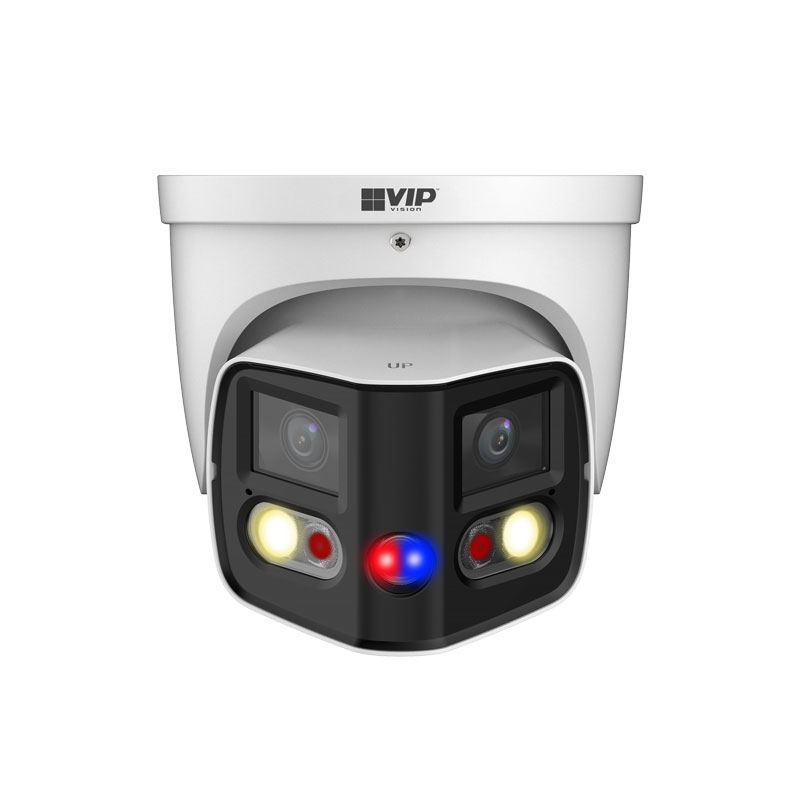

The VIP Vision VSIPP-8DD-ID3 in the Pro AI Series delivers 180° site-wide coverage and a suite of AI detection and active deterrence features to secure homes and business. Perform the job of multiple cameras in a single camera with panoramic field of view from twin 4.0 megapixel 2.8mm lenses and unique electronic PTZ mobility functions via your NVR.

This active deterrence model incorporates AI detection and a variety of in-camera features to deter intruders. Upon a human or vehicle detection event, these cameras can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone to deter intruders. They are ideal for active security across a variety of residential and commercial applications.

Camera features:
• Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
• Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
• 24/7 Colour low light performance at with colour 0.005lx minimum illumination
• 25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
• Adjustable lighting modes with backlight/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• Built-in microphone and loudspeaker for 2-way talking
• 1 Audio In/Output (RCA)
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA109
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Wall Mount Camera Bracket
VSBKTB205W-E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB206W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Professional AI Series 6.0MP Fixed Deterrence Turret
VSIPP-6DG-ID3
Suggested product image
Professional AI Series 8.0MP 180° Active Deterrence Bullet
VSIPP-8BD-ID3
Suggested product image
Professional AI Series 8.0MP Fixed Deterrence Turret
VSIPP-8DG-ID3

Links and Downloads

Specifications

Camera
Image Sensor
Dual 1/2.7” 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
4096 (H) x 1860 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 25m range, Auto/manual on/off control
White Light LED
2 x Warm White LED, 20m range, Auto/manual on/off control
Active Deterrence
1 x Red & Blue Strobe, 1 x Siren Loudspeaker
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.4 Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 180°, Vertical: 86°
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
50m
Observe (63px/m)
20m
Recognise (125px/m)
10m
Identify (250px/m)
5m
Video
Resolution
8.0MP (4096 x 1860) to 960 x 432
Frame Rate (Main)
8.0MP (1 ~ 20fps)
Frame Rate (Sub)
1200 x 530 (1 ~ 20fps)
Frame Rate (Third)
1920 x 860 (1 ~ 20fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
Bit Rate
H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
N/A
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog
Perimeter Protection
Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method
Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
N/A
Audio Interface
Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface
1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S, Profile G, Profile T) / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Deterrence: <8.7W (12VDC), <10.85W (PoE)
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 77°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø 122mm x 135mm
Net Weight
0.99kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
160 mm
Depth
310 mm
Weight
1.15 kg
