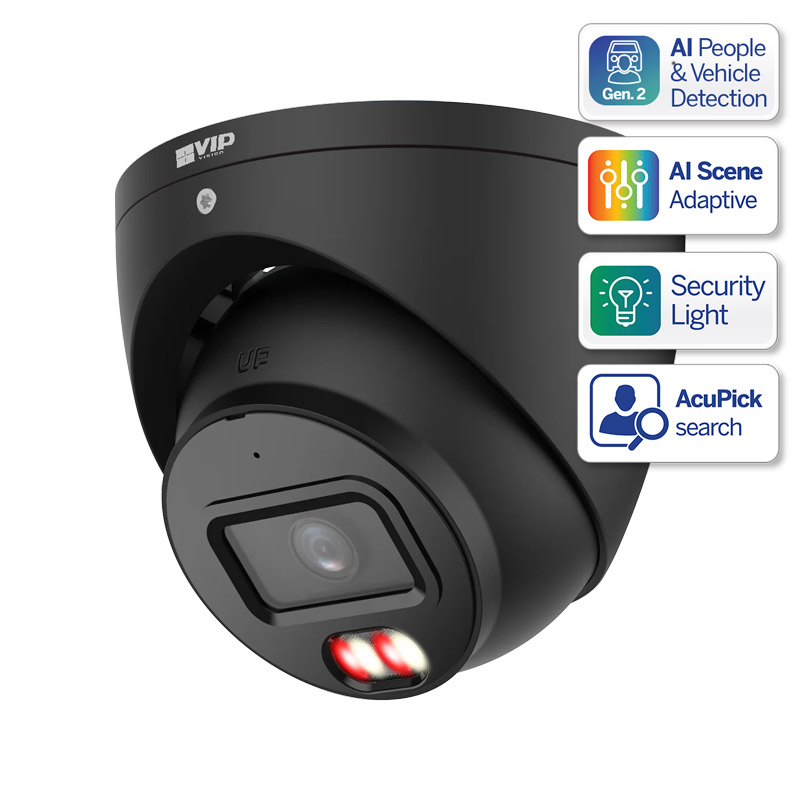

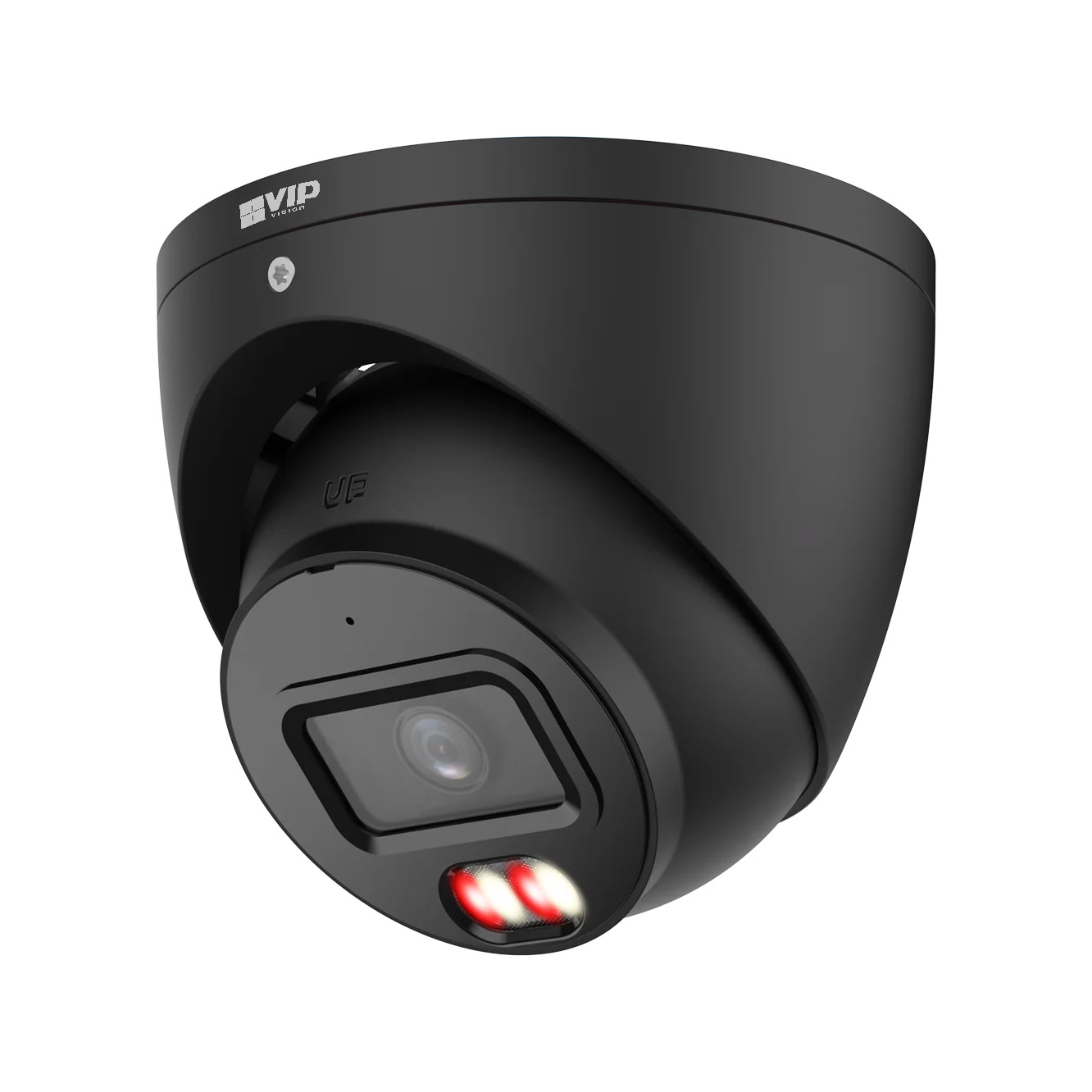

Professional AI Series 6.0MP Fixed Turret (Black)

Brand logo
SKU VSIPP-6DIRG-I3-B
Brand logo

Professional AI Series 6.0MP Fixed Turret (Black)

SKU VSIPP-6DIRG-I3-B

This product is Coming Soon. Please contact us for more information.

The Professional AI CCTV camera range combines the latest in AI surveillance and a security light into one housing. During AI people and vehicle detection events, the camera will trigger a warm LED light to deter intruders and capture footage in full colour. Quickly search and track people & vehicles throughout entire sites across all Acupick CCTV cameras in your security system.

Camera features:
• Stream up to 6.0MP (3288 x 1850) at 25fps
• 2.8mm fixed lens with 110° viewing angle
• Intelligent search across all Acupick cameras
• Warm LED light triggers on person/vehicle detection
• H.265 encoding for efficient storage & streaming
• Up to 30m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• IP67 weather rated housing for outdoor use

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras (Black)
VSBKTA139-B
Suggested product image
Right Angle Wall Mount Camera Bracket (Black)
VSBKTB204W-B

Links and Downloads

VIP Vision Professional AI Series Fixed Turret (PDF) 2.05 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7” 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3288 (H) x 1850 (V)
RAM / ROM
1GB / 256MB
Min Illumination
0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio
> 56dB
Infrared System
2x warm LED light, 2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 110°, Vertical: 58°
Focus
Focus / 1.4m Min. Focus Distance
DORI
Detect (25px/m)
85m
Observe (63px/m)
34m
Recognise (125px/m)
17m
Identify (250px/m)
8m
Video
Resolution
6.0MP (3288 x 1850) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 25fps) / 4.0MP (1 ~25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264H / H.264 / H.264B / MJPEG / AI H.265; AI H.264
Bit Rate
H.265: 19 ~ 16384Kbps / H.264: 32 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 512GB) / NAS
Interoperability
ONVIF / P2P / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Max: <7.4W (12VDC), 9.5W (PoE)
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No

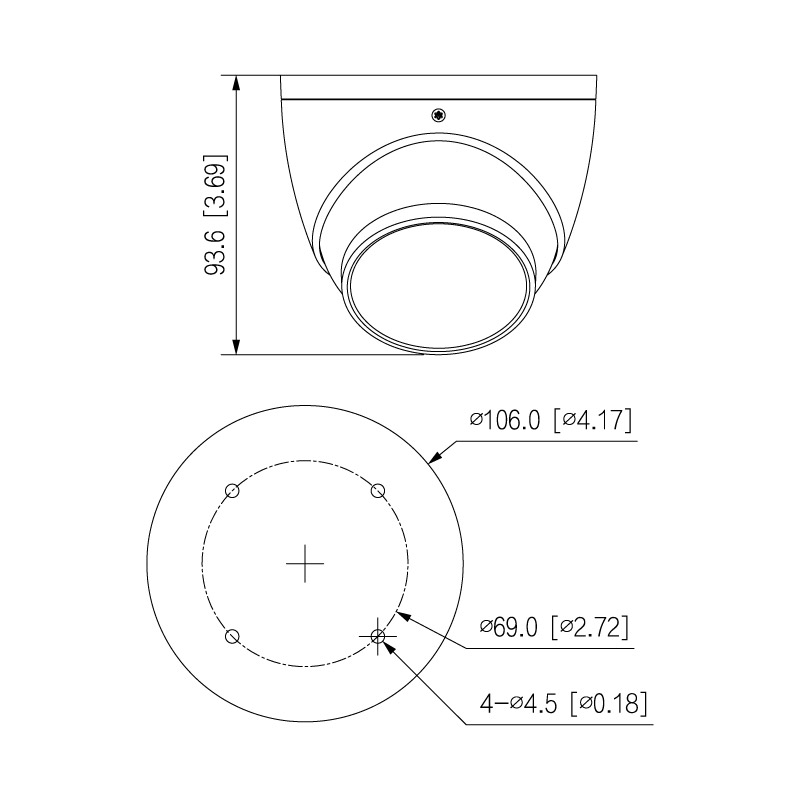

Dimensions
Ø94mm x 106mm
Net Weight
0.53kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
160 mm
Depth
150 mm
Weight
0.70 kg
