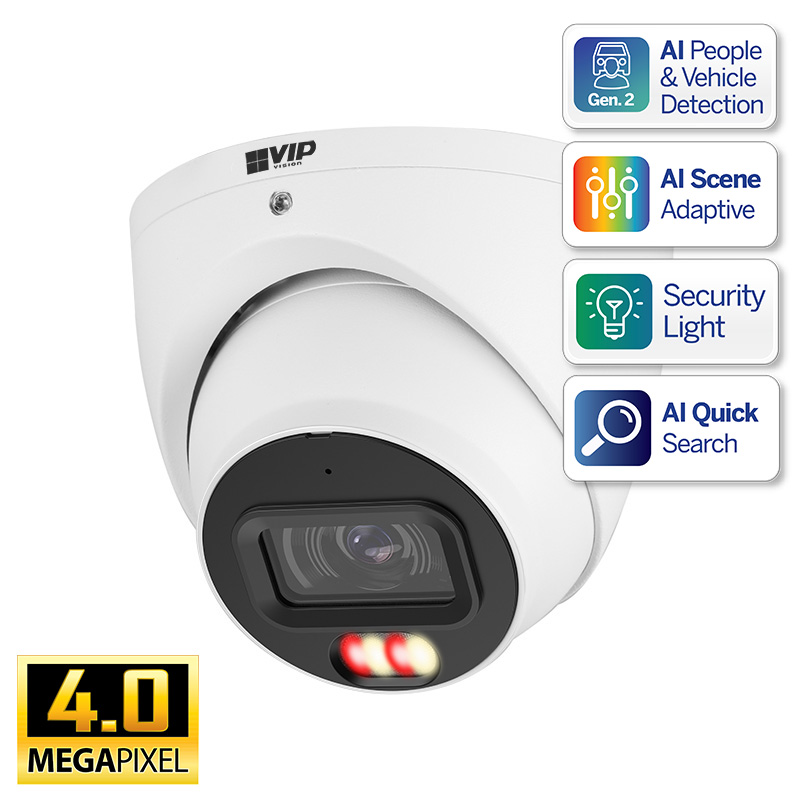

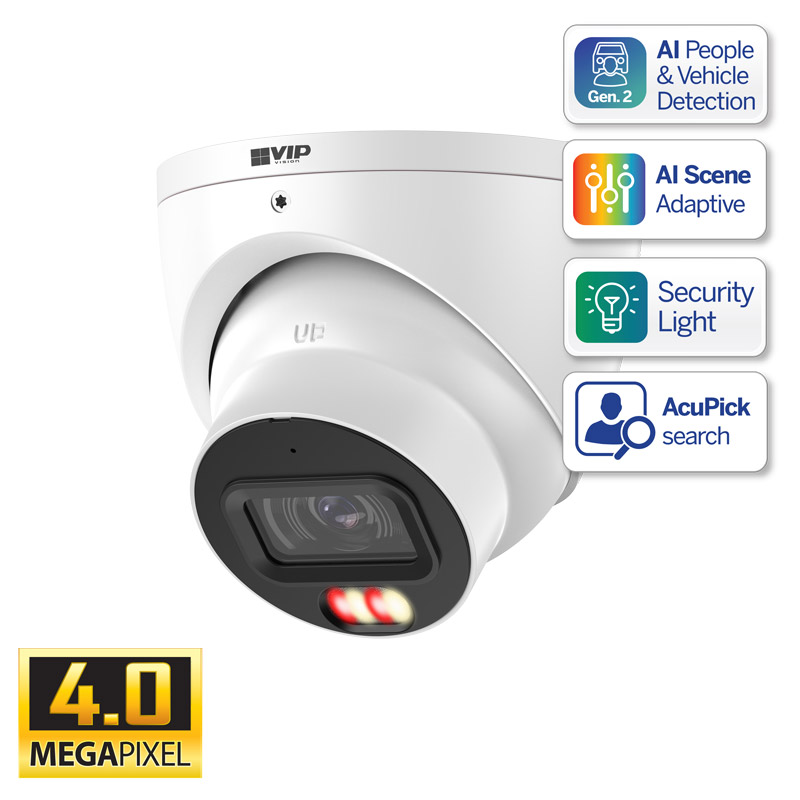

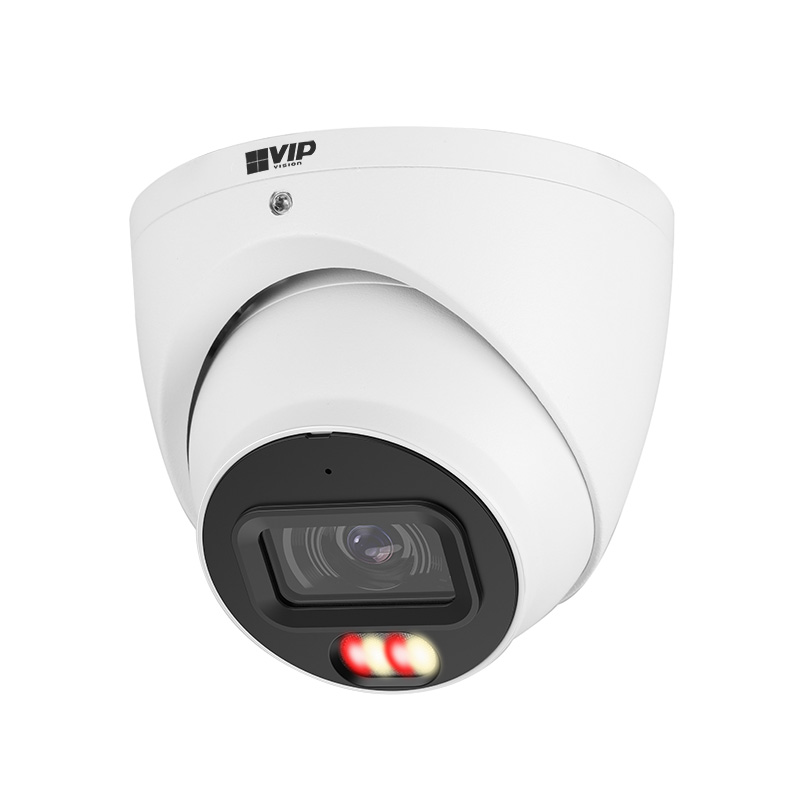

Professional AI Series 4.0MP Fixed Turret

SKU VSIPP-4DIRG-I3

This product is Coming Soon. Please contact us for more information.

The Professional AI CCTV camera range combines the latest in AI surveillance and a security light into one housing. During AI people and vehicle detection events, the camera will trigger a warm LED light to deter intruders and capture footage in full colour. Quickly search and track people & vehicles throughout entire sites across all Acupick CCTV cameras in your security system.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 100° viewing angle
• Intelligent search across all Acupick cameras
• Warm LED light triggers on person/vehicle detection
• H.265 encoding for efficient storage & streaming
• Up to 50m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• IP67 weather rated housing for outdoor use

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB204W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

VSIPP-xDIRG-I3.pdf 0.94 MB
VIP Vision Professional AI Series Fixed Turret (PDF) 0.94 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.9” 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 256MB
Min Illumination
0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio
> 56dB
Infrared System
2x warm LED light, 2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 100°, Vertical: 56°
Focus
Focus / 1.0m Min. Focus Distance
DORI
Detect (25px/m)
62m
Observe (63px/m)
25m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 4.0MP (1 ~25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264H / H.264 / H.264B / MJPEG / AI H.265; AI H.264
Bit Rate
H.265: 19 ~ 16384Kbps / H.264: 32 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 512GB) / NAS
Interoperability
ONVIF / P2P / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Max: <7.1W (12VDC), 9.2W (PoE)
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø94mm x 106mm
Net Weight
0.53kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
160 mm
Depth
160 mm
Weight
0.70 kg
