Professional AI Series 1080p Fixed Deterrence Turret

Brand logo
SKU VSIPP-2DG-ID
Brand logo

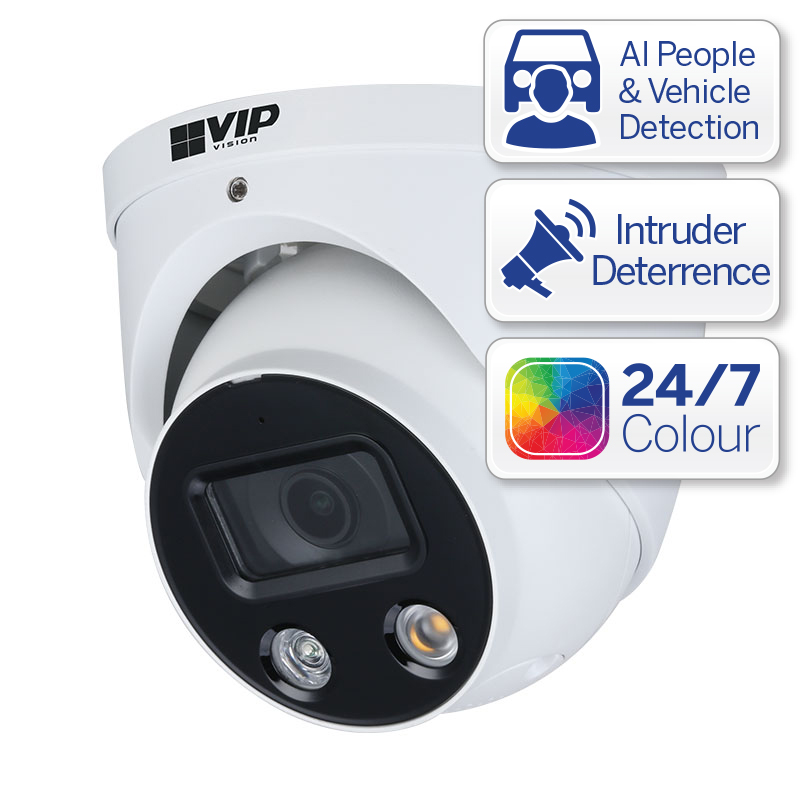

Professional AI Series 1080p Fixed Deterrence Turret

SKU VSIPP-2DG-ID

Featuring a built-in strobe light & siren, as well as smart person/vehicle detection to prevent false alarms, the VSIPP-2DG-ID is an excellent security solution for off-hours property protection. The camera's alarm system activates in response to recorder events (eg. motion detection) to deter intruders - the recorder can then send real-time mobile alerts to any users.

This camera also features 24/7 Colour at night to capture colour detail in the dark and Tripwire/Intrusion detection to detect people & vehicles in specific areas.

Camera features:
• Stream up to Full HD 1080p (1920 x 1080) at 25fps
• 2.8mm fixed lens with 107° viewing angle
• Flashing red & blue light and siren for recorder events
• H.265 encoding for efficient storage & streaming
• 24/7 Colour low light performance at 0.0015lx
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection that identifies people and vehicles
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W

Links and Downloads

VIP Vision Pro AI Series Deterrence Domes Datasheet (PDF) 0.71 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
Active Deterrence Quick Start Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8” 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.0015 Lux/F1.0 (Color)
S/N Ratio
> 56dB
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 107°, Vertical: 55°
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
47m
Observe (63px/m)
19m
Recognise (125px/m)
9m
Identify (250px/m)
5m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
704 x 576 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 17fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
Bit Rate
H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
Perimeter Protection
Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Built-in Speaker / Audio Compression - G.711a; G.711Mu; G726; AAC; G723
Alarm Interface
1 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S, Profile G) / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.3W
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø122mm x 111mm
Net Weight
0.75kg
Other
LED Illumination
1 x Strobe LED (Red & Blue)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
31 mm
Height
117 mm
Depth
15 mm
Weight
0.09 kg
