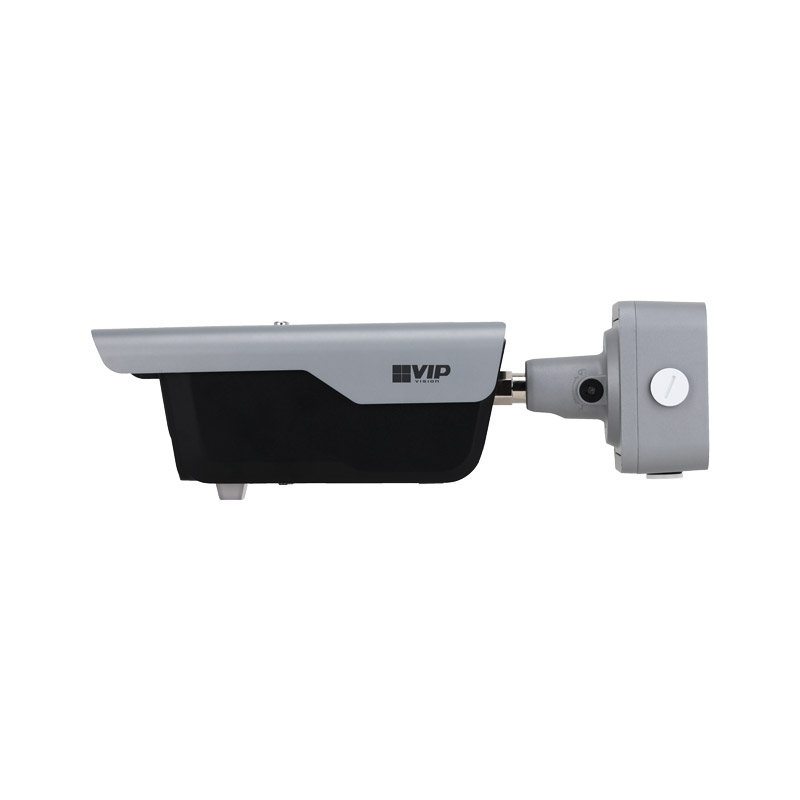

Traffic AI Series 4.0MP Motorised AI ANPR Bullet

Brand logo
SKU VSIPNP-4BIRM-I3
Brand logo

Traffic AI Series 4.0MP Motorised AI ANPR Bullet

SKU VSIPNP-4BIRM-I3

Specially designed for number plate enhancement, Traffic AI Series number plate cameras are designed to obtain video evidence with vehicle identification in controlled environments with challenging lighting conditions. Enhanced with AI, this series has superior plate recognition compared to earlier ANPR models and additional smart features.

Product features:
- Stream beyond HD 4.0MP (2688 x 1520) at 25fps
- Lens/Iris: 2.7~12mm F1.4 Motorized Varifocal Lens with Auto Iris
- Automatic number-plate recognition (ANPR)
- AI-enhanced plate capture and vehicle detection
- Edge enhancement for number plate detail & legibility
- Supports shutter speed windowing; set min/max speed
- Highlight compensation removes headlight glare
- Capture number plates for vehicles going up to 80km/h
- Identify vehicle size, colour & direction with AI
- IP67 weather & vandal resistant metal housing

Suggested Products

Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150

Links and Downloads

Specifications

Camera
Image Sensor
1/1.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1 GB / 4 GB
Min Illumination
0.001 Lux/F1.4 (Color), 0.0002 Lux/F1.4 (IR on)
S/N Ratio
>56 dB
Infrared System
4 x Infrared LED, 10m range (ANPR) 30m range (video), Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal Lens
Lens / Iris
2.7 ~ 12mm F1.4 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 92°~46°, Vertical: 49°~26°, Diagonal: 109°~ 53°
Focus
Auto / Manual / Area Focus
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
720p (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264M / H.264H / H.264B / H.265 / MJPEG / H .264M
Bit Rate
H.264B / H.264M / H.264H / H.265: 2,179 kbps–13,074 kbps, MJPEG: 6,537 kbps–39,223 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W / IR filter
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Manual / Regional Custom / Outdoor / Natural / Street Lamp
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Speed, Colour, Type etc.)
Vehicle Colour Detection
Yes
Vehicle Size Detection
Yes
Network
Ethernet
RJ-45 (10/100/1000 Base-T)
Protocol
HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic (3m Pick-up Distance) & Built-in Speaker
Alarm Interface
2 Input / 2 Output
RS485
2x ports
Edge Storage
MicroSD Card Slot (up to 256GB)
Interoperability
ONVIF / ITSAPI / CGI / P2P
Environmental
Power Supply
12VDC / PoE+ (802.3at)
Power Consumption
<6W (standby), <12W (light), <17W (Speaker and Red/Blue lights)
Operating Conditions
-30° ~ +65° C / 10 ~ 90% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Traffic AI Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No

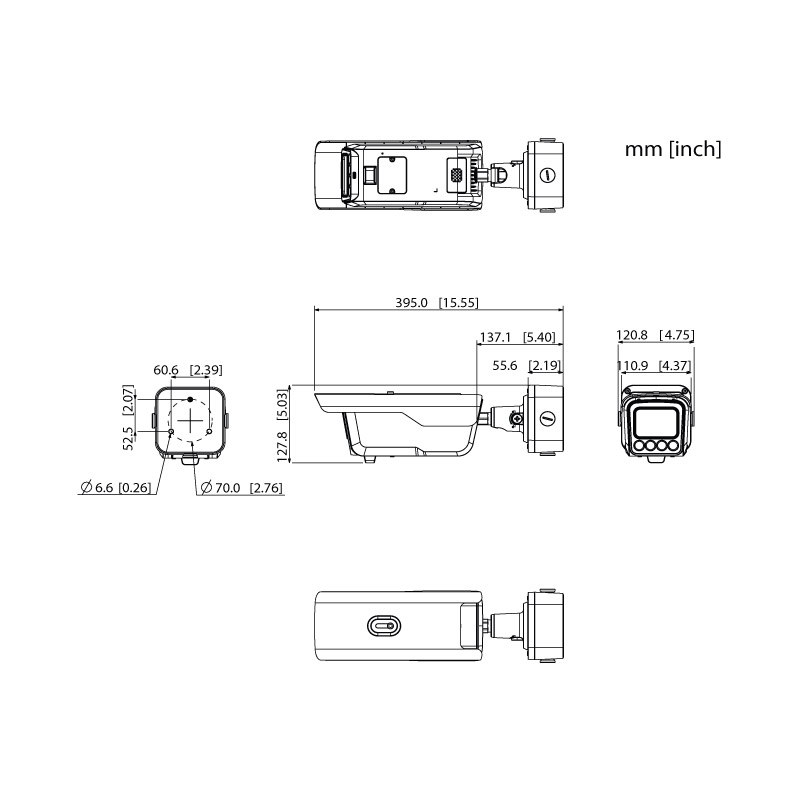

Dimensions
395 x 121 x 128mm
Net Weight
2.3kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
240 mm
Height
233 mm
Depth
447 mm
Weight
3.50 kg
