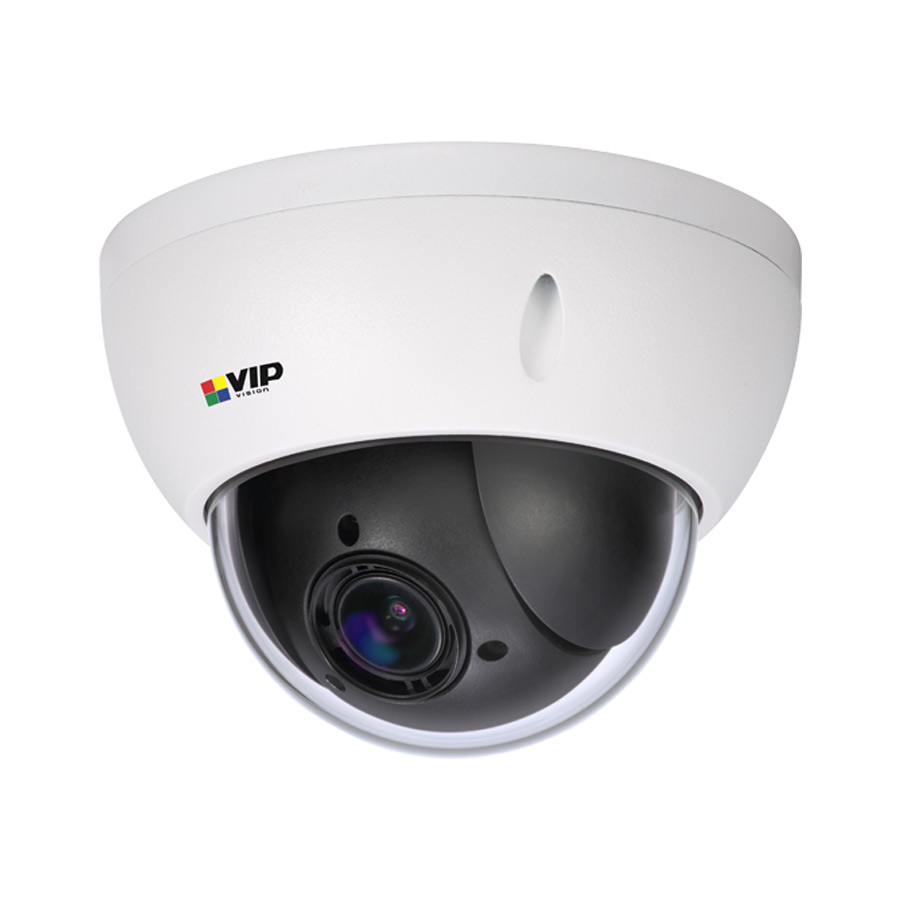

Professional Series 4.0MP 4x Zoom Mini PTZ Dome

Brand logo
SKU VSIP4MPPTZMINI
Brand logo

Professional Series 4.0MP 4x Zoom Mini PTZ Dome

SKU VSIP4MPPTZMINI

Stock may be limited. Please contact us for availability or for an alternative item.

No larger than a standard fixed lens dome, this miniature network PTZ dome offers incredible functionality for its size. Deliver a compact PTZ solution with 4x optical zoom and true WDR in a vandal resistant dome, at a compact 122mm footprint for easy installs.

Camera features:
• Stream up to 4.0MP (2592 x 1520) at 25fps
• 2.7 ~ 11mm 4x optical zoom lens (112.5° ~ 30° viewing angles)
• WDR (120dB) & back/highlight compensation
• MicroSD slot for recording at the edge up to 256GB
• 355° panning and 0° ~ 90° tilt adjustable
• Face detection & intelligent video analytic functions
• 3D digital noise reduction & auto white balance
• IP66/IK10 weather/vandal rated housing

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Recessed Ceiling Mount Bracket
VSBKTB200C
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Specifications

Camera
Image Sensor
1/3" 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2592 (H) x 1520 (V)
RAM / ROM
256MB / 128MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux/F1.6 (Color), 0.005 Lux/F1.6 (B/W)
S/N Ratio
> 50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 11mm F1.6 ~ F2.8 Motorised Lens
Field of View
Horizontal: 112.5° ~ 30° (4x Optical Zoom)
Focus
Auto/Manual / 1m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
180m
Observe (63px/m)
72m
Recognise (125px/m)
36m
Identify (250px/m)
18m
PTZ
Pan / Tilt Range
Pan: 0° ~ 355° / Tilt: 0° ~ 90° / Auto-flip 180°
PTZ Speed
Manual: Pan: 100°/s; Tilt: 60°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Auto Tracking
N/A
Video
Resolution
4.0MP (2592 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264 / MJPEG
Bit Rate
H.265/H.264: 448 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180°
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Privacy Masking (24 zones), Defog
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC/1.5A / PoE (802.3af)
Power Consumption
<10W
Operating Conditions
-30° ~ +60° C / Less than 90% RH
Ingress Protection
IP66
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Professional Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 355 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
Yes
ePoE
No

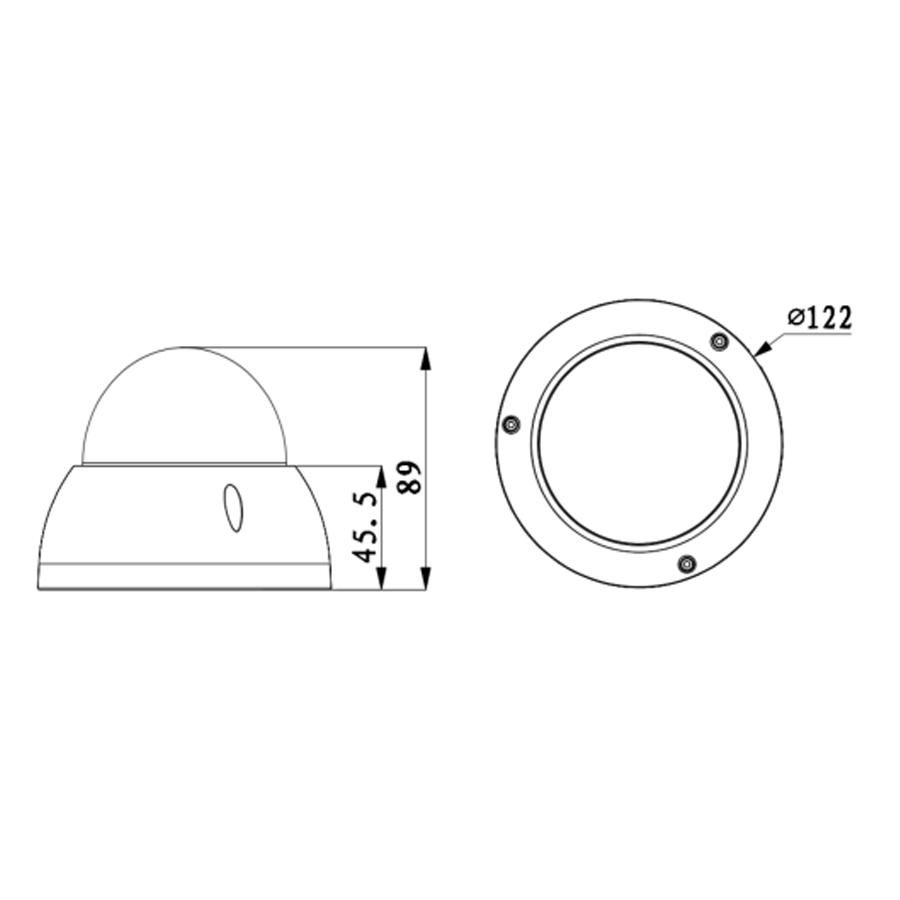

Dimensions
Ø122mm x 89mm
Net Weight
0.66kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
155 mm
Depth
135 mm
Weight
0.65 kg
