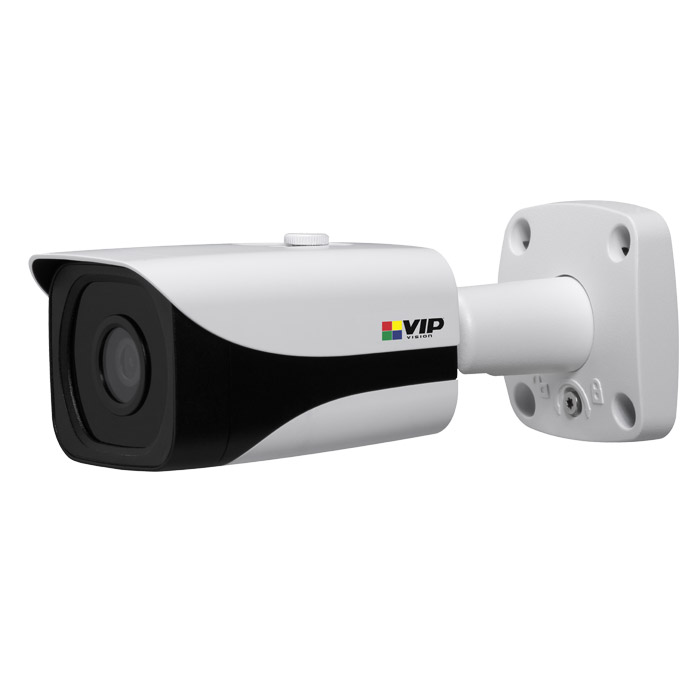

4.0 Megapixel WDR Infrared Fixed Mini Bullet

Brand logo
SKU VSIP4MPFBMINIIR
Brand logo

4.0 Megapixel WDR Infrared Fixed Mini Bullet

SKU VSIP4MPFBMINIIR

Takes fixed-lens IP surveillance to professional standards. Experience twice the resolution of full HD 1080p, wide dynamic range and smart detection features such as face detection.

Camera Features:
• Stream up to 4.0 megapixel (2560 x 1440) at 20fps
• 3.6mm fixed lens with 84° viewing angle
• Day/night (auto ICR) with 40m maximum infrared range
• Wide dynamic range (120db) with back/highlight compensation
• 3D digital noise reduction and auto white balance
• Power via 12VDC or Power over Ethernet (802.3af)
• Supports triple stream and smart detection technologies
• IP67 weather resistant housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

Specifications

Alarm Interface
N/A
Angle of View
84°
Audio Compression
N/A
Audio Input
N/A
Backlight Compensation
BLC / HLC / WDR (120dB)
Bit Rate
H.264: 32K ~ 10Mbps
Camera Style
Weather Resistant Mini Bullet
Camera Type
Bullet
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
70 x 70 x 180mm
Effective Pixels
2688 (H) x 1520 (V)
Electronic Shutter
Auto / Manual (1/3 ~ 1/10000s)
Frame Rate - Main
4.0MP (1~20fps) / 3.0MP and lower (1~25fps)
Frame Rate - Sub
D1 and lower (1 ~ 25fps)
Frame Rate - Third
720p and lower (1~5fps WDR on) / (1~18fps WDR off)
Gain Control
Auto / Manual
Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS
Ingress Protection
IP67
Lens
3.6mm F2.1 Fixed Lens
Lens Type
Fixed
Max. Resolution
4.0 Megapixel
Maximum Infrared Range
40m
Memory Slot
N/A
Minimum Illumination
0.01 Lux at F2.1 (Colour) / 0 Lux at F2.1 (IR on)
Network Interface
RJ45 (10/100 Base-T)
Noise Reduction
3D Digital Noise Reduction
ONVIF Conformance
ONVIF, PSIA, CGI Compliant
Operating Environment
-40° to 60°C / RH95% (max)
Power Consumption
< 6W
Power Input
12VDC / PoE (802.3af)
Signal Noise Ratio
> 50dB
Smart Functions
Scene Change / Face Detection
Tri-Axis Mounting
No
Tri-Axis Mounting
No
Vandal Resistant
N/A
Video Compression
H.264 / H.264B / H.264H / MJPEG
Video Output
N/A
Video Resolution
Configurable from 4.0MP (2560 x 1440) to CIF (352 x 288)
Weight
0.40kg
White Balance
Auto / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
106 mm
Height
206 mm
Depth
96 mm
Weight
0.51 kg
