Mobile Series 1080p Fixed HDCVI Flush Mount Bumper Camera

Brand logo
SKU VSCVIM-2BT
Brand logo

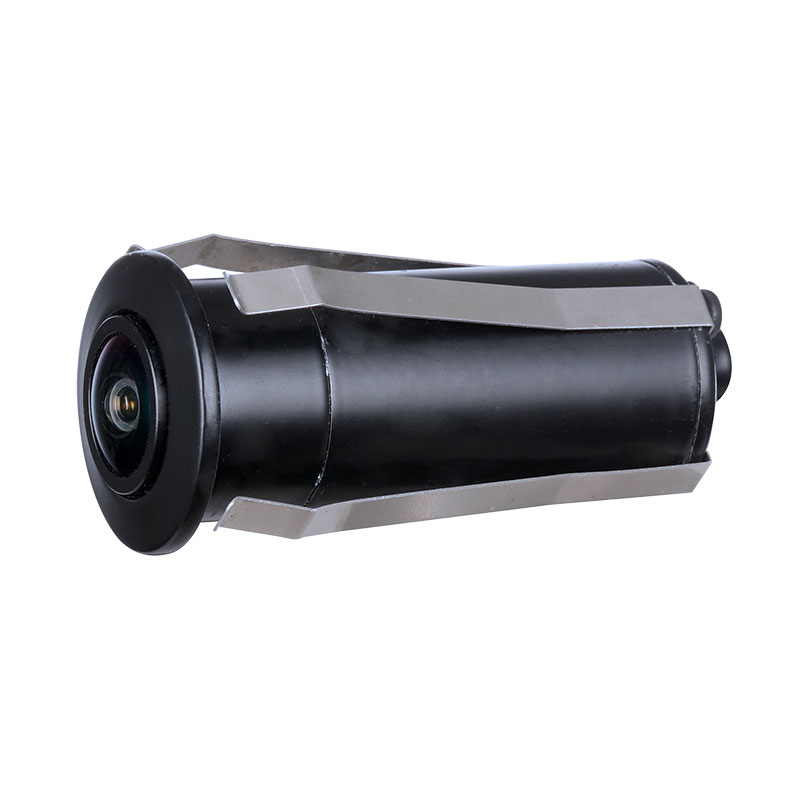

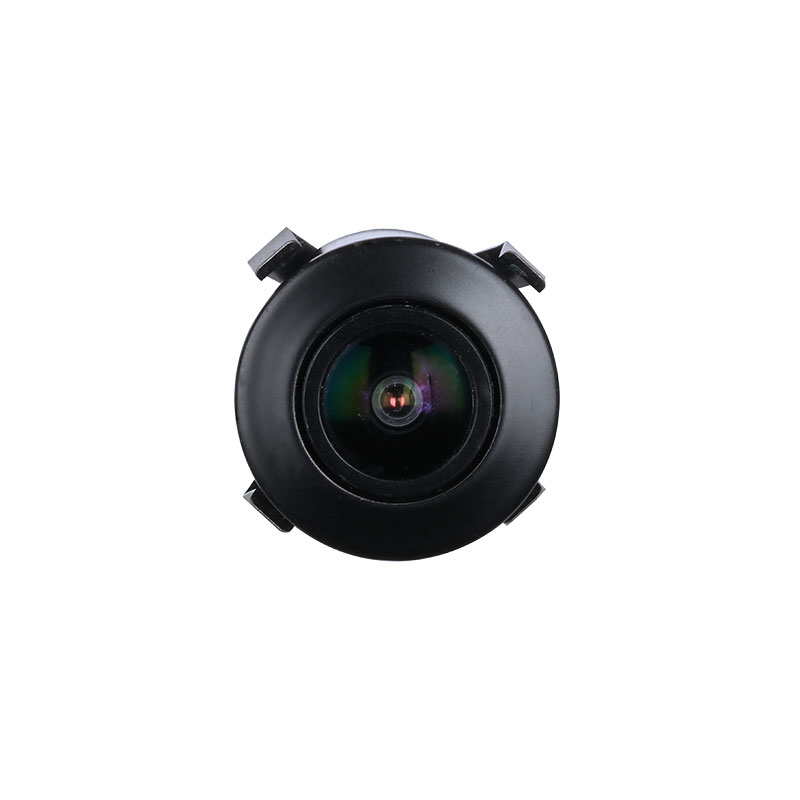

Mobile Series 1080p Fixed HDCVI Flush Mount Bumper Camera

SKU VSCVIM-2BT

Every angle of your vehicle covered with the Securview VSCVIM-2BT. This camera delivers a wide field of view and 1080p Full HD video streaming, in a durable and compact shock-resistant housing. Ideal for flush mount in-bumper placement.

Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 2.8mm lens; 117° viewing angle
• Up to 500m HD video transmission over coax
• IP67 weather resistance
• Auto white balance & 2D noise reduction
• Shock-resistant metal chassis & cable connectors

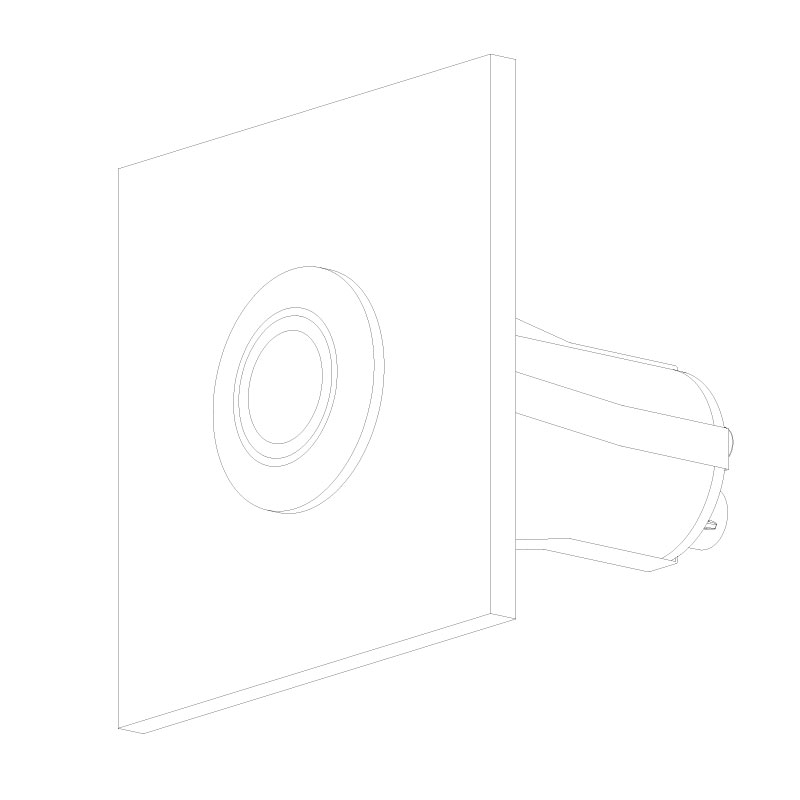

• Ø30mm hole cut size

Suggested Products

Suggested product image
Securview 4 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi Modules
MCVR-GPS4GW
Suggested product image
Securview 8 Channel Mobile HDCVI DVR with GPS, 4G & WiFi
MCVR-GPS8GW

Links and Downloads

Specifications

General
Image Sensor
1/2.7” 2.0 Megapixel CMOS
Max. Resolution
1080p Full HD
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.8mm F2.0 Fixed Lens
Lens Type
Fixed
Angle of View
117° (H), 63° (V), 135° (D)
Focus
Fixed / 0.5m Min. Focus Distance
Minimum Illumination
0.02 Lux at F2.0 (Colour)
Electronic Shutter
1/25 ~ 1/100000s
Day/Night
Auto (ICR) / Manual
Infrared Range
N/A
White Balance
Auto / Manual
Noise Reduction
2D
Gain Control
Auto
Lighting Compensation
BLC / HLC / DWDR
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
40m
Observe (63px/m)
16m
Recognise (125px/m)
8m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
1 x BNC HDCVI/CVBS/AHD/TVI switchable video output (aviation connector)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Mobile Series
Housing
Metal
Camera Type
Flush Bullet
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
<1.1W

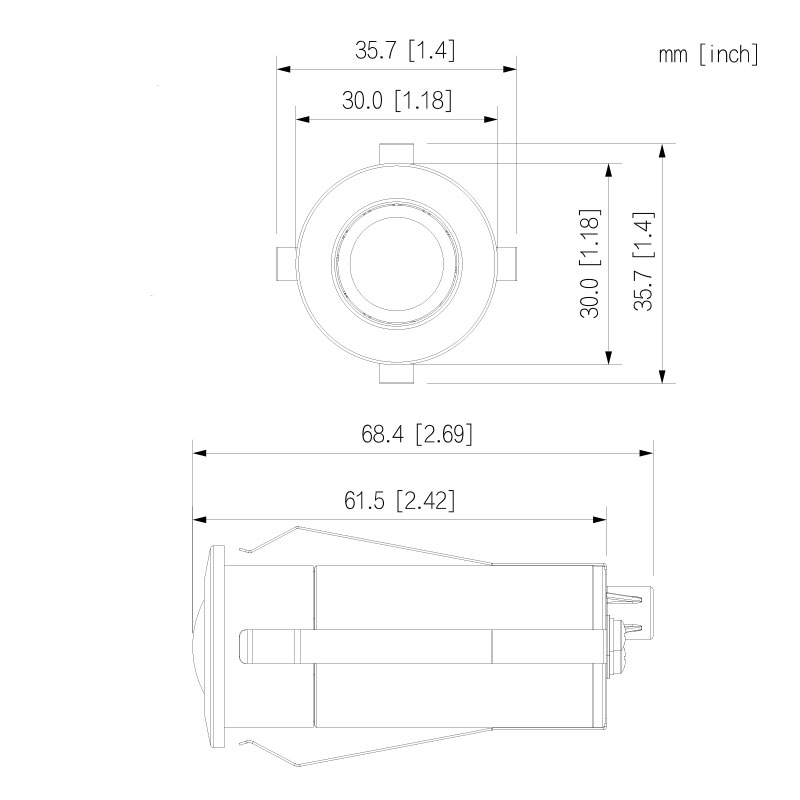

Dimensions
Ø36 x 68mm
Weight
0.07kg
Operating Environment
-40° to 70°C / RH90% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
139 mm
Height
116 mm
Depth
138 mm
Weight
0.42 kg
