Value Series 720p Fixed HDCVI Mini Bullet

Brand logo
SKU VSCVI1MPFBIRP
Brand logo

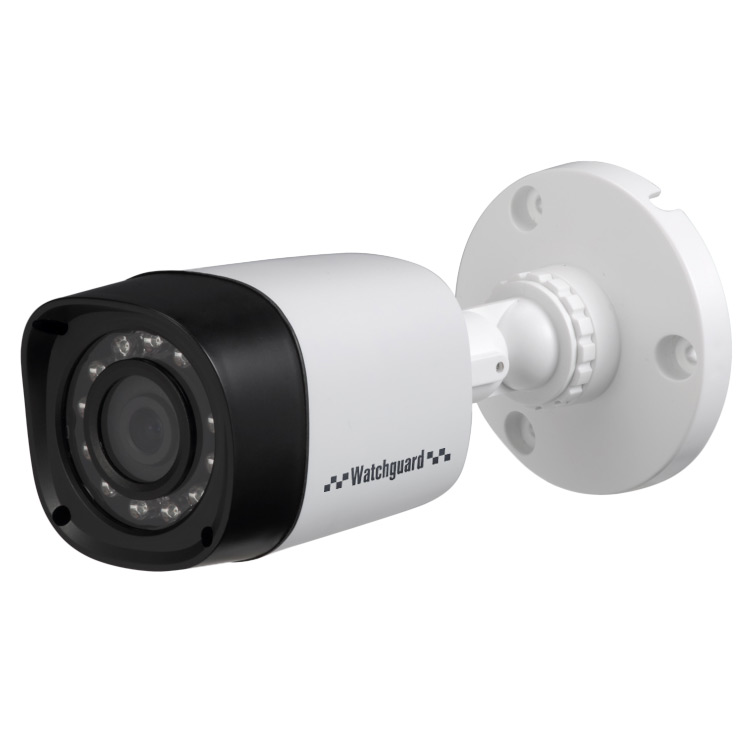

Value Series 720p Fixed HDCVI Mini Bullet

SKU VSCVI1MPFBIRP

Double your image resolution with the Watchguard range of compact HDCVI cameras. Stream in real-time at 720p HD with this weather resistant surveillance camera.

Camera Features:
• Streams HD 720p/1.0MP (1280 x 720)
• Fixed 3.6mm lens; 88° viewing angle
• Up to 800m HD video transmission over coax
• Infrared illumination up to 20m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• Plastic construction housing

Suggested Products

Suggested product image
4 Channel 720p HDCVI Complete Surveillance Kit (2 Domes, 2 Bullets)
CVR4EPACK2
Suggested product image
8 Channel 720p HDCVI Complete Surveillance Kit (4 Domes, 4 Bullets)
CVR8EPACK2
Suggested product image
Value Series 720p Indoor Fixed HDCVI Mini Dome
VSCVI1MPDIRP

Links and Downloads

Specifications

Alarm Interface
N/A
Angle of View
88°
Audio Compression
H.264
Audio Input
N/A
Backlight Compensation
BLC
Camera Lens
3.6mm Fixed Lens
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
Ø70 x 154mm
Effective Pixels
1280 (H) × 720 (V)
Electronic Shutter
1/50 ~ 1/100,000s
Frame Rate
25fps (720p and lower)
Gain Control
Auto
Image Sensor
1/2.9” 1.0 Megapixel CMOS
Ingress Protection
IP67
Maximum Infrared Range
20m
Minimum Illumination
0.05 Lux at F1.6 (Colour) / 0 Lux IR Active
Noise Reduction
2D
Operating Environment
-30° to 60°C / RH95% (max)
Power Consumption
<2.2W
Power Input
12VDC
Signal Noise Ratio
> 50dB
Transmission Distance
Over 800m via 75-3 coaxial cable
Vandal Resistant
No
Video Compression
H.264
Video Output
BNC CVI HD output
Video Resolution
720p (1280 x 720) to CIF (352 x 288)
Weight
0.15kg
White Balance
Auto
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
100 mm
Depth
200 mm
Weight
0.05 kg
