VSBKTB220C: 760mm Ceiling Mount Dome Bracket

Our people, our products: Dedicated to winning you more business™

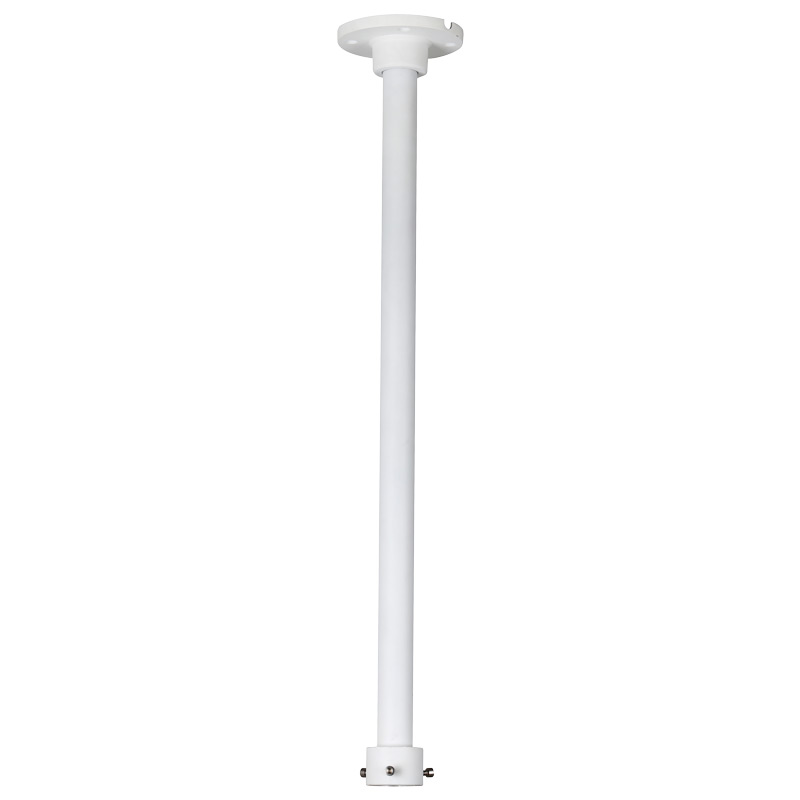

760mm Ceiling Mount Dome Bracket

SKU VSBKTB220C

760mm Ceiling Mount Dome Bracket

SKU VSBKTB220C

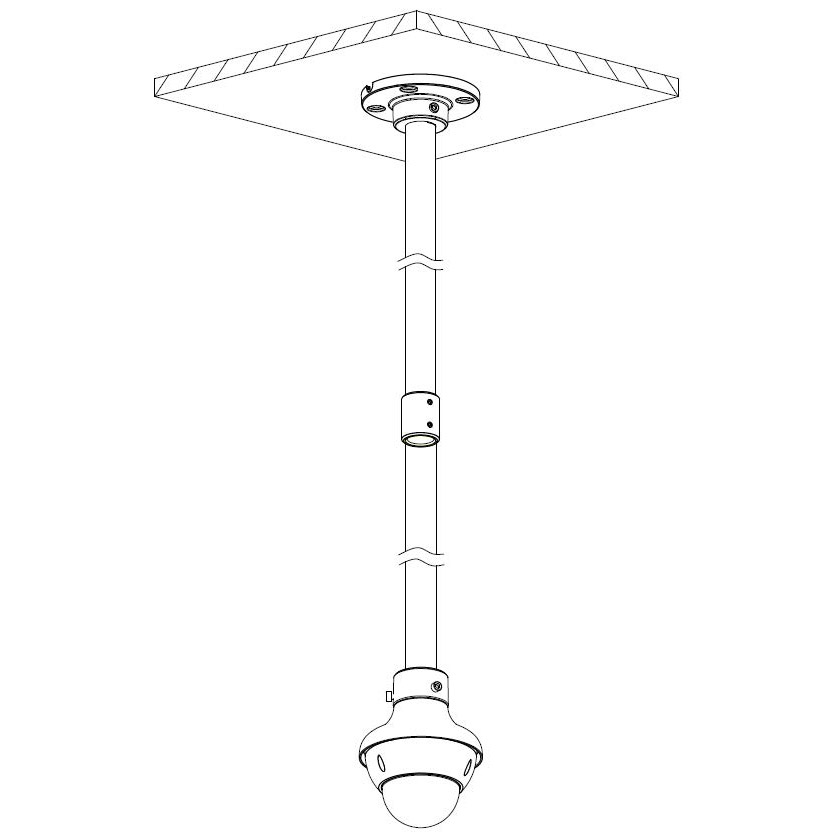

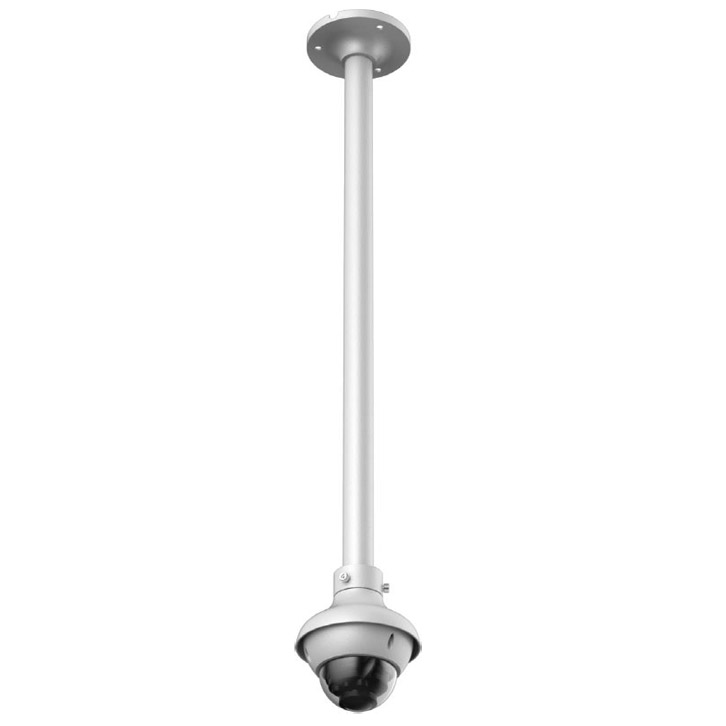

Ceiling drop down bracket for most small domes from VIP Vision & Securview. Drop cameras over 1.4m from high ceilings and past other ceiling mounted objects to get the best view possible.

For use with the VSBKTA106. Extendable with the VSBKTA117.

See bracket compatibility guide below for product compatibility.

Suggested Products

Adapter for Ceiling & Wall Mount Brackets
VSBKTA106

780mm Extender for Ceiling Mount Bracket
VSBKTA117

Links and Downloads

VSBKTB220C & VSBKTA117 - Product Brochure (PDF) 0.12 MB

Accessory Compatibility Guide 2023 (PDF) 1.60 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Connection

Bracket Type

Connector

Load Bearing Capacity

2kg

Pipe Thread

N/A

General

Materials

Aluminium

Weather Resistance

N/A

Operating Conditions

-40° ~ 60°C / 90% RH (max)

Dimensions

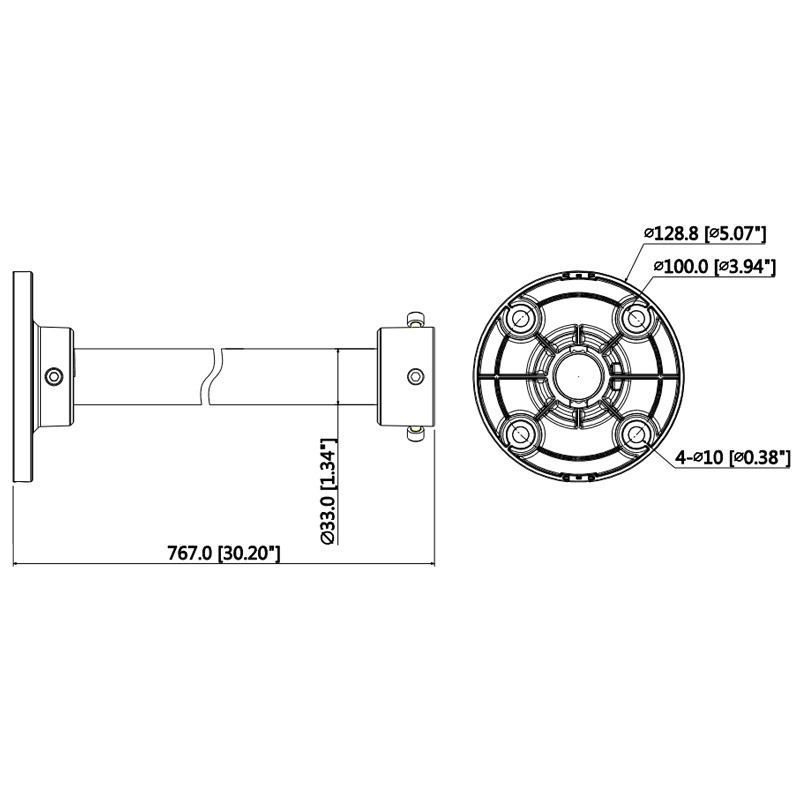

Ø128.8 x 767mm

Weight

0.9kg

Warranty (Years)

4

Shipping Weight and Dimensions

Includes product packaging

Width

180 mm

Height

840 mm

Depth

200 mm

Weight

2.00 kg
