1000VA Online Li-Ion Rackmount/Tower UPS - 1000W

Brand logo
SKU UPS1000VA-ORM
Brand logo

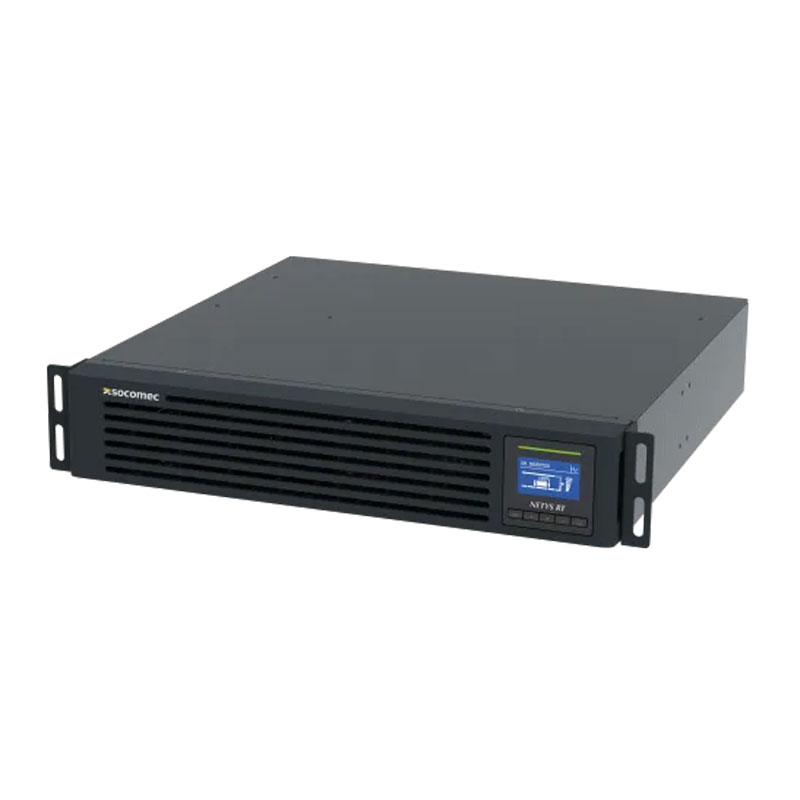

1000VA Online Li-Ion Rackmount/Tower UPS - 1000W

SKU UPS1000VA-ORM

Available by special order only. Please contact us for lead times.

The UPS1000VA-ORM is an pure sinewave, lithium-ion, online uninterruptible power supply, with a max capacity of 1000VA / 1000W and features 8 x IEC 320-C13 power outputs. At only 2U height and 445mm depth, it is an incredibly compact solution UPS solution that can fit into small rackmount cabinets.

The UPS1000VA-ORM is an online UPS (also known as voltage-frequency independent, or double-conversion), meaning your devices are connected to the UPS backup power at all times. Should main power be lost or compromised, connected devices are switched to battery backup power with zero-second transfer delay, ensuring no loss or corruption of data. This UPS also features overload, overcharge and ESD protection.

Product features:
• Ideal solution for protecting small servers, networking devices, surveillance and peripherals.
• Assures service continuity to critical security systems and applications.
• The space and time-saving tower/rack conversion option means it can be installed easily either in tower mode or inside standard 19” rack cabinets depending on the user’s needs.
• No configuration needed on first startup.
• Compact footprint (2U/86 mm) for installation in rack cabinets.
• USB port and HID protocol as standard for direct interfacing with Windows systems®, without the need for additional specialist software. Protection for your data line
• Load segmentation function to prioritize loads and manage critical situations.
• Power off the UPS remotely
• Connect up to 2 battery extension modules for greater capacity and uptime

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Battery
Battery Type
Integrated Lithium Battery (LiFePO4)
Capacity
1000VA / 1000W
Frequency Range (Battery Mode)
50Hz / 60Hz
Est. Backup Time
~50min@200W
Input
Rated input Voltage
110 ~ 300VAC
Rated input Frequency
40 ~ 70Hz
Output
AC Voltage Regulation
Yes
Rated output Voltage
200 ~ 240VAC
Rated output Frequency
50 ~ 60Hz
Waveform (Batt. Mode)
Pure Sine Wave
Protection
Overload, Overcharge, ESD
Output Sockets
8 x 10A IEC 320-C13
Alarm Output
Yes
Communication
Interface
LCD Screen (Load level / Alarm / Battery fault / Overload / Battery capacity / Battery mode / AV/Regulation active / Configuration / UPS Test)
Local Communication Software
RS232 (MODBUS protocol), COMM slot, EPO input (RJ11 port), USB port and HID protocol as standard for direct interfacing with Windows systems®
General
UPS Type
Online
Dimensions
2U, 438 x 445 x 86 mm (WxDxH)
Weight
15.1kg
Other
Noise level
<50dB
Operating Environment
0 ~ 40°C / 5% ~ 95%RH
Power Factor
0.9
Recharge Time
3 hours to 90% capacity (Average)
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
89 mm
Height
440 mm
Depth
333 mm
Weight
13.00 kg
