650VA Line Interactive UPS - 360W

Brand logo
SKU UPS-U650-L
Brand logo

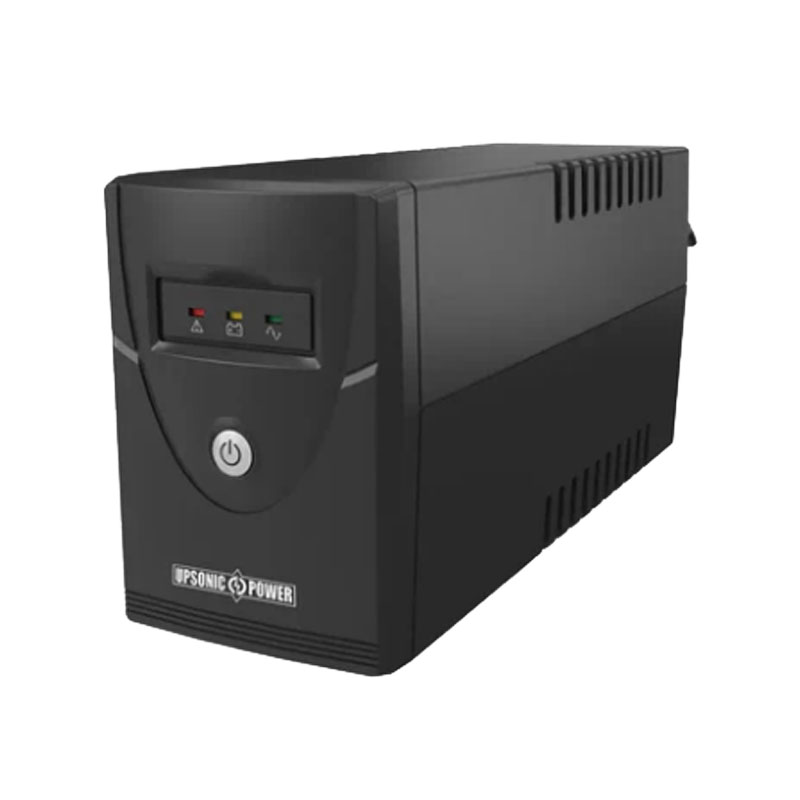

650VA Line Interactive UPS - 360W

SKU UPS-U650-L

Provide short-term battery power for your security systems during power outages with the Uninterruptible Power Supply range. This UPS protects electronics from overloads and overcharges, while also providing temporary backup power during outages. Manage the system via USB connection to any PC, Mac or Linux computer.

Features:
• Line interactive UPS with modified sinewave outputs
• Backup & protection for up to two Australian 3-Pin devices
• Optional Surge Protection for LAN/Phone/Modern Line
• Super fast charging time - 2 to 4 hours
• Tiny Load Sensing technology to prevent deep discharge problems in battery

Links and Downloads

UPS-U650-L Datasheet (PDF) 0.49 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Capacity
650VA / 360W
Operation
Line Interactive
Protection
Optional Surge Protection, Tiny Load Sensing
Input
Input Voltage
220-240VAC
Voltage Range
220-240VAC
Frequency Range
45/55Hz
Output
Output Voltage Range
±15%
Frequency Range (Battery Mode)
50/60Hz ±1Hz
Transfer Time
3-8ms
Waveform (Batt. Mode)
Modified Sinewave
Output Sockets
2 x AUS Power Sockets
Battery
Battery Voltage
12VDC
Battery Type
1 x 12V/7Ah
Recharge Time
2-4 hours
Interface
Indicators
AC Mode, Battery Mode, Load Level, Battery Level
Alarm
N/A
Management
USB (Windows 2000 to 10, Linux, Unix, MAC)
Environment
Noise Level
<40dB
Operating Environment
0 ~ 40°C
Dimensions
100 x 148 x 300mm
Weight
4.2kg
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
120 mm
Depth
300 mm
Weight
4.20 kg
