SMODET4-N: Photoelectric 4-Wire Smoke Detector

Our people, our products: Dedicated to winning you more business™

Photoelectric 4-Wire Smoke Detector

SKU SMODET4-N

Photoelectric 4-Wire Smoke Detector

SKU SMODET4-N

Available by special order only. Please contact us for lead times.

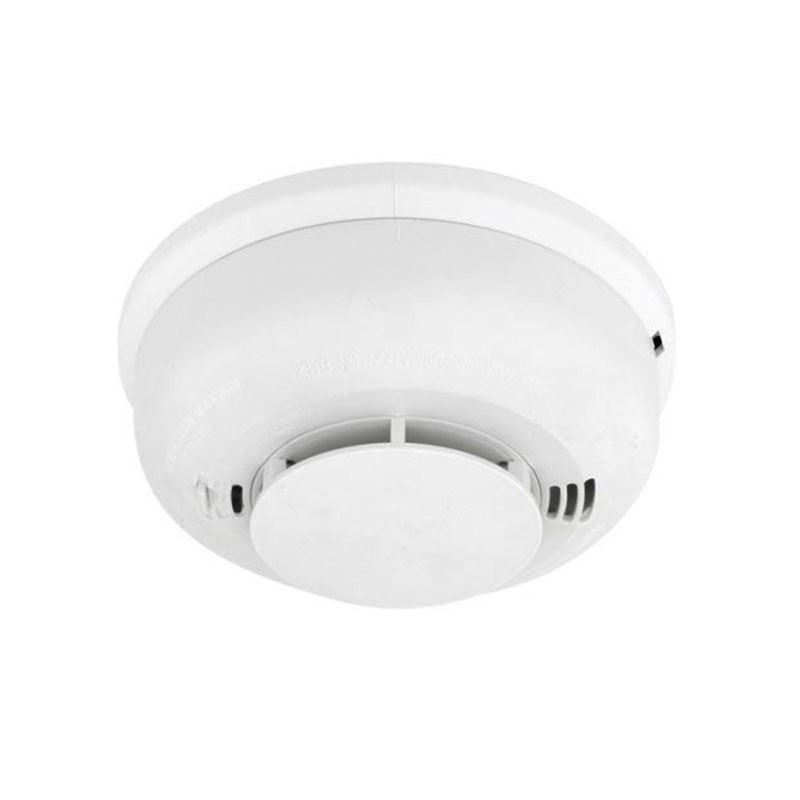

The SMODET4-N is a hardwired photoelectric 4-wire smoke detector with integral temp-3 sounder that is designed for open area protection.

• 9V to 24V DC Operation
• NO/NC Change over alarm relay contacts
• 8 second alarm verification feature Audible emergency evacuation signal (ISO8201)
• ‘HUSH’ / Test Push Button

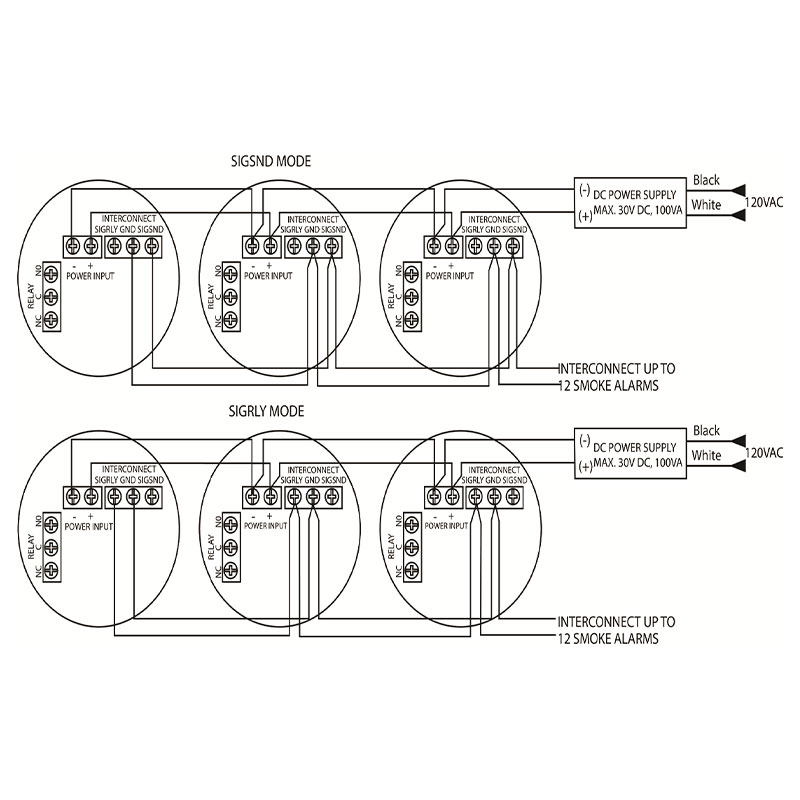

• Interconnects up to 24 smoke alarms
• Certified to AS3786:2014 standard
• Dimensions: Ø135 x 55mm, Weight: 220g

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

Type

Smoke Detector

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

140 mm

Height

150 mm

Depth

70 mm

Weight

0.40 kg
