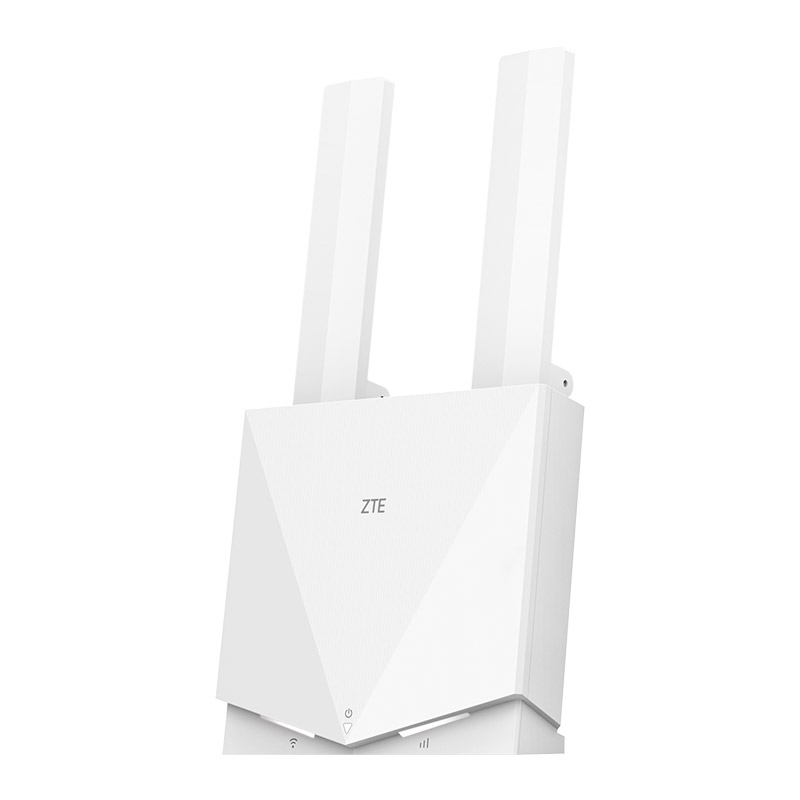

Compact 4G Wireless Modem Router with Backup Battery

Brand logo
SKU RTR-ZS

Compact 4G Wireless Modem Router with Backup Battery

SKU RTR-ZS

The RTR-ZS is a compact 4G wireless modem router, ideal for small offices or home users. It offers reliable 4G LTE connectivity with 2600mAh battery backup, ensuring uninterrupted service during power outages. With WiFi 6 support, up to 32 concurrent users, and a portable form factor, it’s a great portable choice for mobile internet requirements at exhibitions or remote working.

• 4G/LTE CAT4 with support for nano sized SIM card
• 4G max. data throughput 150/50Mbps download/upload*
• FDD LTE: B1/2/3/5/7/8/20/28, TDD LTE: B38/40/41 band support
• WiFi 6, 802.11 b/g/n/ax standard, 2.4GHz MIMO 2x2 antenna
• 2.4GHz 574Mbps* WiFi max. data throughput
• WEP/WPA/WPA2/WPA3-PSK WiFi security protocols
• 1 x RJ45 100M Ethernet LAN/WAN port
• Supports up to 32 simultaneous wireless users
• Large twin external antennas for WiFi and 4G
• 2600mAh backup battery; 12VDC/1A input power
• Manage router configuration via Web UI or Smartlife app

* Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary

Suggested Products

Suggested product image
Ultra 5G/4G Dual Band Wireless Modem Router
RTR-ZL
Suggested product image
Desktop 4G Dual Band Wireless Modem Router
RTR-ZM

Links and Downloads

RTR-Z Series Datasheet (PDF) 0.73 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Device Hardware
Network Interface

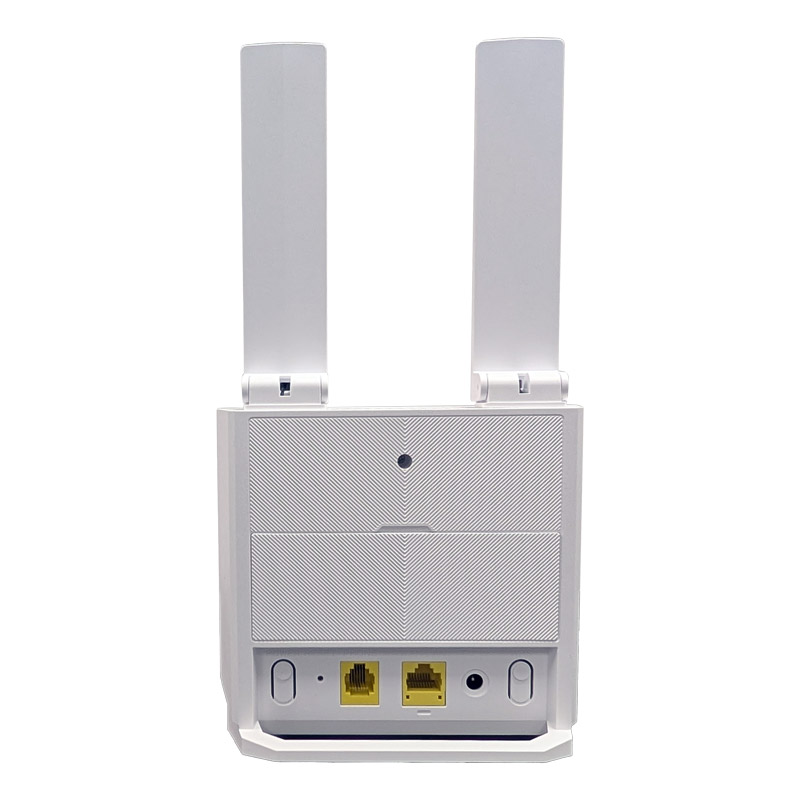

1 x RJ45 (100M) WAN/LAN Port,1 x Nano SIM Slot, 1 x RJ11
Device Indicators
Power/WiFi/Network LED Indicators, Power/WPS/Reset Buttons
Input Power
12VDC 1.0A
Backup Battery
2600mAh (Li-ion)
Dimensions
136 x 125 x 37mm (excl. antennas)
Weight
270g (incl. battery)
Operating Environment
0-40°C Temperature, 5-95% Humidity
Certifications
CE, WEEE, RoHS, REACH, WiFi
WiFi Performance
WiFi Standard
IEEE 802.11b/g/n/ax (WiFi 6)
WiFi Antenna
2x2 MIMO 2.4GHz 20dBm@2.4GHz
WiFi Data Rate
2.4GHz 574Mbps*
WiFi Security
WEP/WPA/WPA2/WPA3-PSK
WiFi Concurrent Users
32
Cellular Performance
Cellular Category
4G/LTE CAT4
Max. Data Throughput (Down/Up)
FDD-LTE 150/50Mbps, TDD-LTE 110+/11+Mbps*
Support Frequencies
FDD-LTE B1/2/3/5/7/8/20/28, TDD-LTE B38/40/41
Cellular Antenna
Built-in or External LTE Antennas, 23±2 dBm Max. Tx Power
Software Features
Software Functions
Port forwarding, IP filtering, DMZ, UPnP, VPN Pass-through, VoLTE, SMS via Web UI, IPV4/IPV6, OTA Updates
Management Platform
Web UI, Smartlife App
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
290 mm
Depth
80 mm
Weight
1.00 kg
