RTR-ZM: ZTE Network Router 4G MF296R

Our people, our products: Dedicated to winning you more business™

ZTE Network Router 4G MF296R

SKU RTR-ZM

ZTE Network Router 4G MF296R

SKU RTR-ZM

This product is Coming Soon. Please contact us for more information.

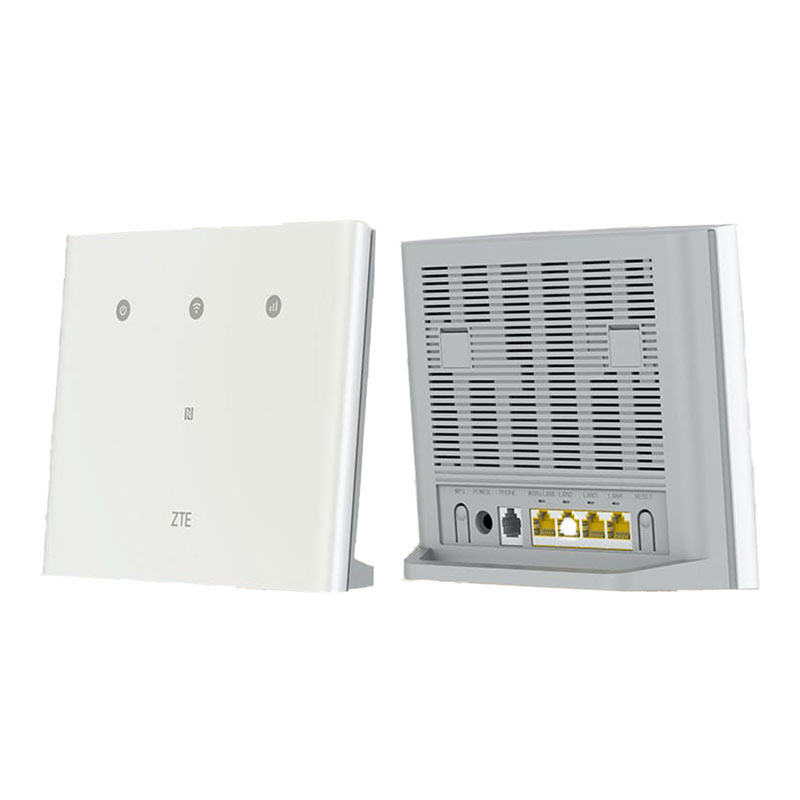

The RTR-ZM is a ZTE 4G LTE modem router for wireless and hardwired data connectivity with connection speeds of up to 1200Mbps. It can be integrated easily into existing networks with 5x 100Mbps gigabit Ethernet ports (1 x LAN/WAN port, 3 x LAN port) and fast 4G wireless connectivity. The RTR-ZM is a great solution for larger network installations where multiple devices need to be connected to a 4G network. This router also features dual band WiFi.

• 4G/LTE up to 300/50Mbps download speed, 1 x nano-SIM slot
• FDD LTE: B1/3/7/8/20/28, TDD LTE: B38/40/41
• Dual Band WiFi: 2.4GHz/5GHz, DBDC, up to 1167Mbps transmission rate
• WiFi Standard: 802.11 a/b/g/n/ac
• 5 x 1000Mbps Gigabit Ethernet ports (1 x LAN/WAN)
• Supports up to 64 simultaneous wireless users
• Internal 4G antenna, 2 x SMA input for optional LTE 2x2 MIMO antennas (sold separately)
• Power Supply: 12VDC/1.5A, 100~240VAC 50Hz~60Hz input

*Theoretical maximum speeds; telco operator dependent

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

80 mm

Height

290 mm

Depth

80 mm

Weight

1.00 kg
