Desktop 4G Dual Band Wireless Modem Router

Brand logo
SKU RTR-ZM

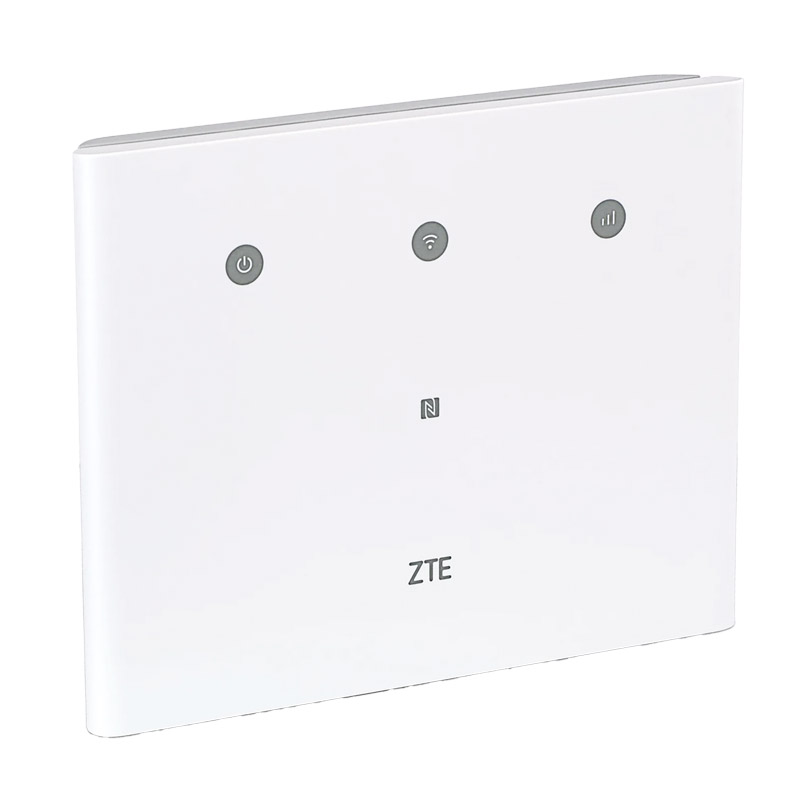

Desktop 4G Dual Band Wireless Modem Router

SKU RTR-ZM

The RTR-ZM is a desktop 4G wireless modem router with 4 x 1000M LAN ports, perfect for building your network. It is ideal for businesses requiring higher device capacity and dual-band WiFi 5 performance, with up to 64 concurrent users. Gigabit Ethernet ports and LTE Cat 6 (with carrier aggregation), ensures fast, stable connectivity for multiple devices—great for family homes, SMEs, branch offices, and shared workspaces.

• 4G/LTE CAT6 with support for carrier aggregation; nano sized SIM slot
• 4G max. data throughput 300/50Mbps download/upload*
• FDD-LTE B1/2/3/4/7/8/20/26/28/32, TDD-LTE B38/40/41 band support
• Dual band WiFi 5, 802.11 b/g/n/ac standard, 2.4GHz & 5GHz MIMO 2x2 antenna
• 2.4GHz 300Mbps* and 5GHz 1167Mbps* WiFi max. data throughput
• WPA/WPA-PSK/WPA2/WPA2-PSK WiFi security protocols
• 4 x RJ45 1000M Ethernet, including 1 x LAN/WAN port
• Supports up to 64 simultaneous wireless users (32 per WiFi band)
• Built-in WiFi & 4G antennas; 2 x SMA inputs for external antennas (not included)
• 12VDC/1.5A input power
• Manage router configuration via Web UI or Smartlife app

* Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary

Suggested Products

Suggested product image
Ultra 5G/4G Dual Band Wireless Modem Router
RTR-ZL
Suggested product image
Compact 4G Wireless Modem Router with Backup Battery
RTR-ZS

Links and Downloads

RTR-Z Series Datasheet (PDF) 0.73 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Device Hardware
Network Interface

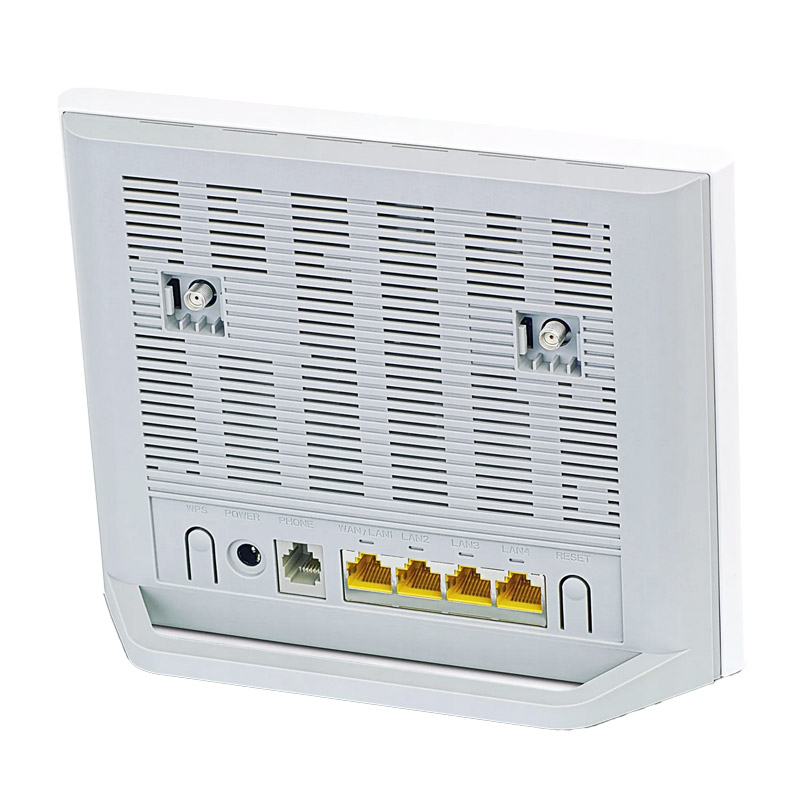

4 x RJ45 (1000M) (1 x WAN/LAN), 1 x Nano SIM Slot, 1 x RJ11
Device Indicators
Power/WiFi/Network LED Indicators, Power/WPS/Reset Buttons
Input Power
12VDC 1.5A
Backup Battery
-
Dimensions
146 x 182 x 27mm
Weight
310g
Operating Environment
-20-55°C Temperature, 5-95% Humidity
Certifications
CE, WEEE, RoHS, REACH, WiFi
WiFi Performance
WiFi Standard
IEEE 802.11b/g/n/ac (WiFi 5)
WiFi Antenna
2x2 MIMO 2.4GHz (20dBm), 2x2 MIMO 5GHz (23dBm)
WiFi Data Rate
2.4GHz 300Mbps, 5GHz 1167Mbps*
WiFi Security
WPA/WPA-PSK/WPA2/WPA2-PSK
WiFi Concurrent Users
64; 32 per 2.4GHz/5GHz
Cellular Performance
Cellular Category
4G/LTE CAT6 with 2 Carrier Aggregation
Max. Data Throughput (Down/Up)
FDD-LTE 300/50Mbps, TDD-LTE 220+/11+Mbps*
Support Frequencies
FDD-LTE B1/2/3/4/7/8/20/26/28/32, TDD-LTE B38/40/41
Cellular Antenna
Built-in Antenna, External via 2 x SMA (not incl.), 23±2.7 dBm Max. Tx Power
Software Features
Software Functions
Port forwarding, IP filtering, DMZ, UPnP, VPN Pass-through, VoLTE, SMS via Web UI, IPV4/IPV6, OTA Updates, Firewall
Management Platform
Web UI, Smartlife App
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
290 mm
Depth
80 mm
Weight
1.00 kg
