Ultra 5G/4G Dual Band Wireless Modem Router

Brand logo
SKU RTR-ZL

Ultra 5G/4G Dual Band Wireless Modem Router

SKU RTR-ZL

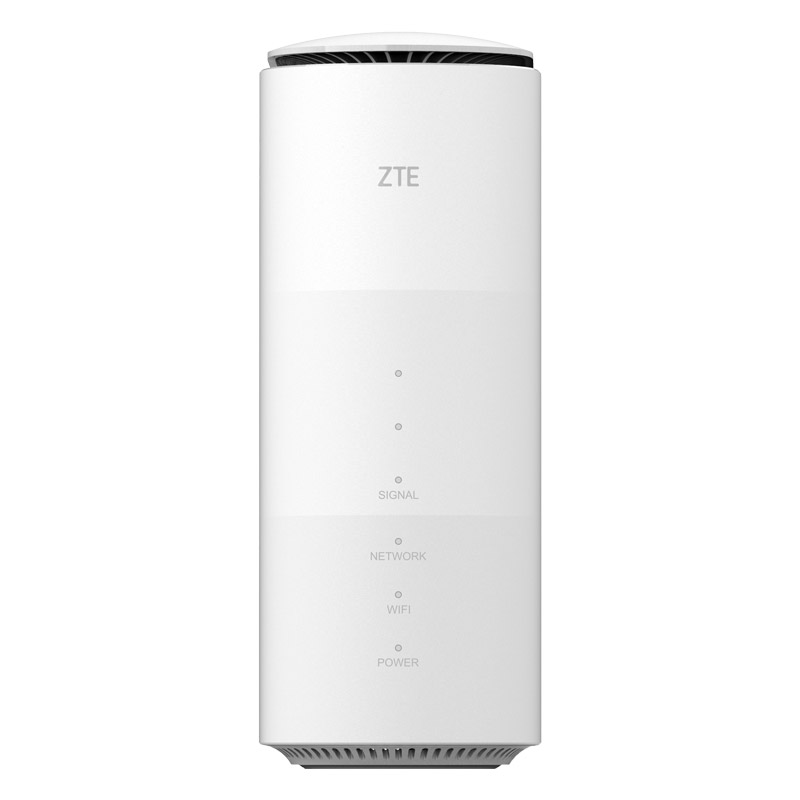

Offering flagship performance, the RTR-ZL 5G/4G wireless modem router delivers amazing mobile broadband and WiFi speeds in a stylish package. It features dual-band WiFi 6 support and can handle up to 64 simultaneous users. With maximum 5G speeds up to 3.8Gbps and LTE-Advanced 4G speeds up to 1Gbps, it is the high-bandwidth router choice for use in enterprise and enthusiast applications. Its advanced performance with 5G carrier aggregation makes it a top choice for homes or businesses requiring ultra-fast, stable wireless connectivity.

The RTR-ZL utilises the latest Snapdragon X62 chipset for superior speed, performance and reliability.

• 5G NR NSA/SA with carrier aggregation support; nano sized SIM slot
• 5G max. data throughput 3800/900Mbps download/upload*
• N1/3/7/8/20/28/38/40/41/75/77/78 5G band support
• 4G/LTE-A CAT16 with carrier aggregation support
• 4G max. data throughput 1000/150Mbps download/upload*
• FDD-LTE B1/3/4/5/7/8/20/28/32, TDD-LTE B38/40/41/42/43 4G band support
• Dual band WiFi 6, 802.11 b/g/n/ac/ax standard, 2.4GHz & 5GHz MIMO 2x2 antenna
• 2.4GHz 688Mbps* and 5GHz 2882Mbps* WiFi max. data throughput
• WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-PSK WiFi security protocols

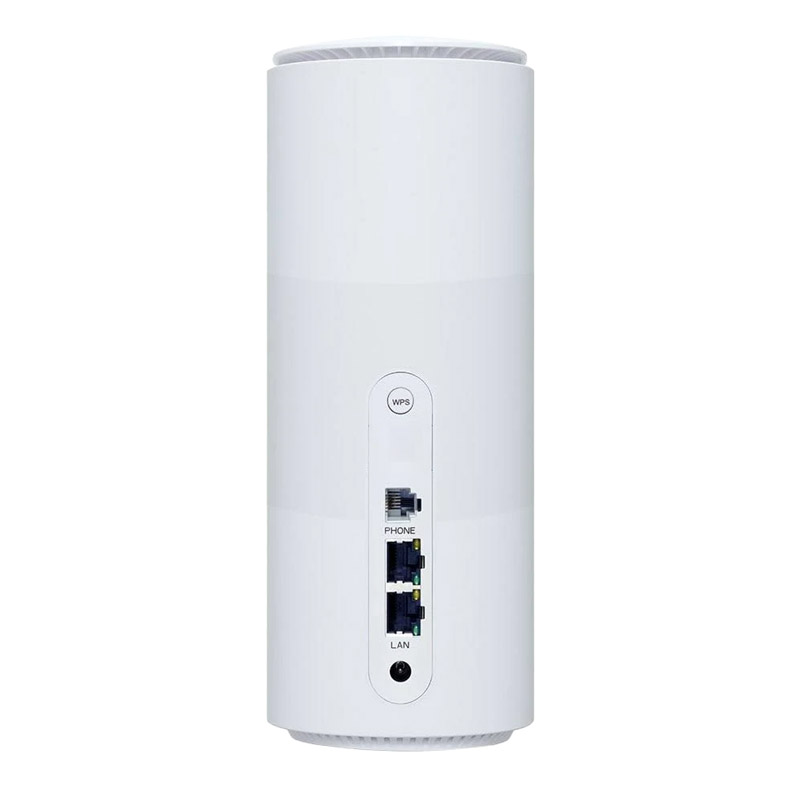

• 2 x RJ45 1000M Ethernet, including 1 x LAN/WAN port
• Supports up to 64 simultaneous wireless users
• Built-in WiFi & 5G/4G antennas
• 12VDC/1.5A input power
• Manage router configuration via Web UI or Smartlife app

* Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary

Suggested Products

Suggested product image
Desktop 4G Dual Band Wireless Modem Router
RTR-ZM
Suggested product image
Compact 4G Wireless Modem Router with Backup Battery
RTR-ZS

Links and Downloads

RTR-Z Series Datasheet (PDF) 0.73 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Device Hardware
Network Interface
2 x RJ45 (1000M) (1 x WAN/LAN), 1 x Nano SIM Slot, 1 x RJ11
Device Indicators
Power/WiFi/Network LED Indicators, WPS/Reset Buttons
Input Power
12VDC 1.5A
Backup Battery
-
Dimensions
182 x 124 x 70mm
Weight
520g
Operating Environment
-20-55°C Temperature, 5-95% Humidity
Certifications
CE, WEEE, RoHS, WiFi
WiFi Performance
WiFi Standard
IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
WiFi Antenna
2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz
WiFi Data Rate
2.4GHz 688Mbps, 5GHz 2882Mbps*
WiFi Security
WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-PSK
WiFi Concurrent Users
64
Cellular Performance
Cellular Category
5G NR NSA/SA with 5 Carrier Aggregation, 4G/LTE-Advanced CAT16
Max. Data Throughput (Down/Up)
5G 3800/900Mbps*, FDD-LTE 1000/150Mbps*
Support Frequencies
5G N1/3/7/8/20/28/38/40/41/75/77/78, FDD-LTE B1/3/4/5/7/8/20/28/32, TDD-LTE B38/40/41/42/43
Cellular Antenna
Built-in 5G/4G Antenna, 26dBm (N41/78) and 23dBm Max. Tx Power
Software Features
Software Functions
MAC address filtering, Wi-Fi encryption authentication, VPN Pass-through, IPV4/IPV6, VoLTE, VoIP, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP, APN, Firewall, Hybrid Mode (LAN/WLAN)
Management Platform
Web UI, Smartlife App
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
290 mm
Depth
80 mm
Weight
1.00 kg
