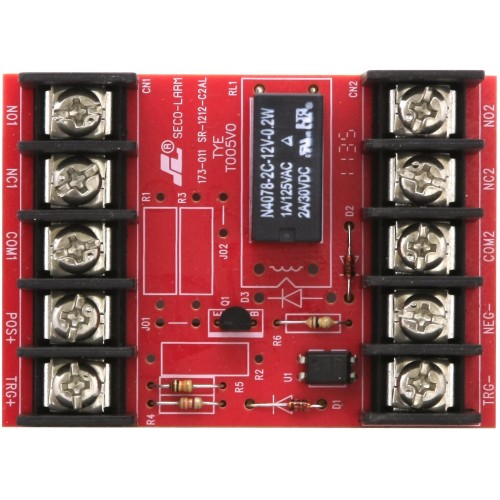

3/24VDC Relay Module (One 2A DPDT Relay)

Brand logo
SKU RLM2A-DDL
Brand logo

3/24VDC Relay Module (One 2A DPDT Relay)

SKU RLM2A-DDL

Stock may be limited. Please contact us for availability or for an alternative item.

Expand your wiring and installation options with the useful Watchguard™ range of relay modules. Featuring heavy duty, low-current, high sensitivity and break-away modules, you’ll always have the perfect relay for the job.

Series features:
• Relay modules for any application where switches are required
• Pre-wired to easy-to-install modules
• Screw terminals allow easy installation without soldering or other time-consuming connections
• Wide-selection available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity

Product features:
• 3~24VDC Low Trigger Voltage, perfect for keypads.
• Low Current Drain (15mA)
• High Sensitivity (1mA Trigger)
• One 2A Form C DPDT Relay

Suggested Products

Suggested product image
6/12VDC Relay Module (One 5A DPDT Relay)
RLM5A-DD
Suggested product image
12/24VDC 10-Pack Relay Module (One 7A SPDT Relay)
RLM7A-SD-10
Suggested product image
3/24VDC Relay Module (Two 7A SPDT Relays)
RLM7A-SDL
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864
Suggested product image
High Quality LCD Keypad for WGAP864 Alarm System
WGAP864KP

Links and Downloads

Specifications

Current Draw
15mA@12VDC / 18mA@24VDC
Dimensions
70 x 50 x 20 mm
No. of Relays
1
Operating Voltage
12/24 VDC
Relay Ratings
2A
Relay Type
DPDT
Trigger Voltage
3~24 VDC
Voltage Selection
Auto-sensing
Weight
45g
Warranty (Years)
TBA

Shipping Weight and Dimensions

Includes product packaging

Width
88 mm
Height
83 mm
Depth
48 mm
Weight
0.05 kg
