4G GPS Vehicle Tracker

Brand logo
SKU RHINOTRACKS-ST5
Brand logo

4G GPS Vehicle Tracker

SKU RHINOTRACKS-ST5

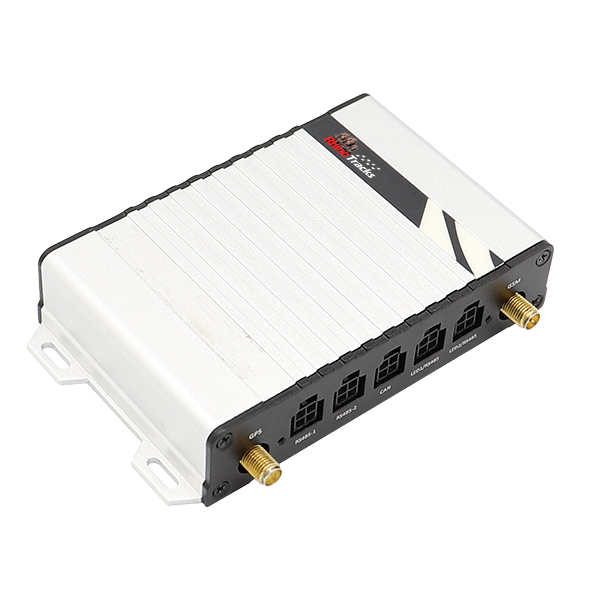

The RHINOTRACKS-ST5 is the latest GPS Vehicle Tracker supporting the 4G network. It is suitable for 11V to 36V DC vehicles and designed to keep you informed of where your vehicle is and where it has been.

It is an ideal solution for basic fleet, stolen vehicle, auto rental and other vehicle tracking applications. The stronger outer aluminium casing effectively secures the internal components from exposure to the elements and heat.

At 190g, the RHINOTRACKS-ST5 is lightweight and small enough to be securely installed in areas of minimal space.

Product Features:
• Real time tracking
• 4G Network
• Assisted-GPS
• History reports

Links and Downloads

RHINOTRACKS-ST5 Product Brochure (PDF) 0.25 MB
Rhinotracks-ST5 v1.0.pdf 0.34 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Button/Switches
1 x SOS button, 1 x power button
Dimensions (mm)
106 x 24.5 x 70mm
Frequency Band
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD:B40, WCDMA: B1/B2/B5/B8, GSM/GPRS: B2/B3/B5/B8
GPS
u-Blox 7
GPS Sensitivity
-161dB
GSM Antenna
External
I/O Port

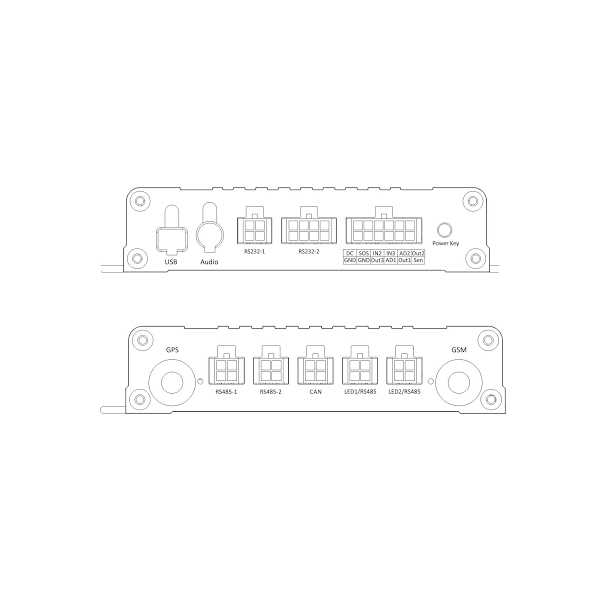

3 digital input ports, 3 output ports, 2 AD input ports, and 11-Wire digital temperature sensor port
Indicators
Green indicator: GSM signal / Blue indicator: GPS signal
Input Voltage
11.4V ~ 36V DC/1.5A
Memory
8MB buffer
Operating Environment
-20°C to 55°C / RH95% (max)
Positioning Accuracy
2.5m
Sensor
3D acceleration sensor (vibration, wake-up and towing alarms)
Standby Battery
400mAh/3.7V
Weight
190g
Working Hours
45 hours in power-saving mode, 4 hours in normal mode
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
190 mm
Depth
95 mm
Weight
0.80 kg
