POL-A6S: 6.0m Octagonal Hinged Pole

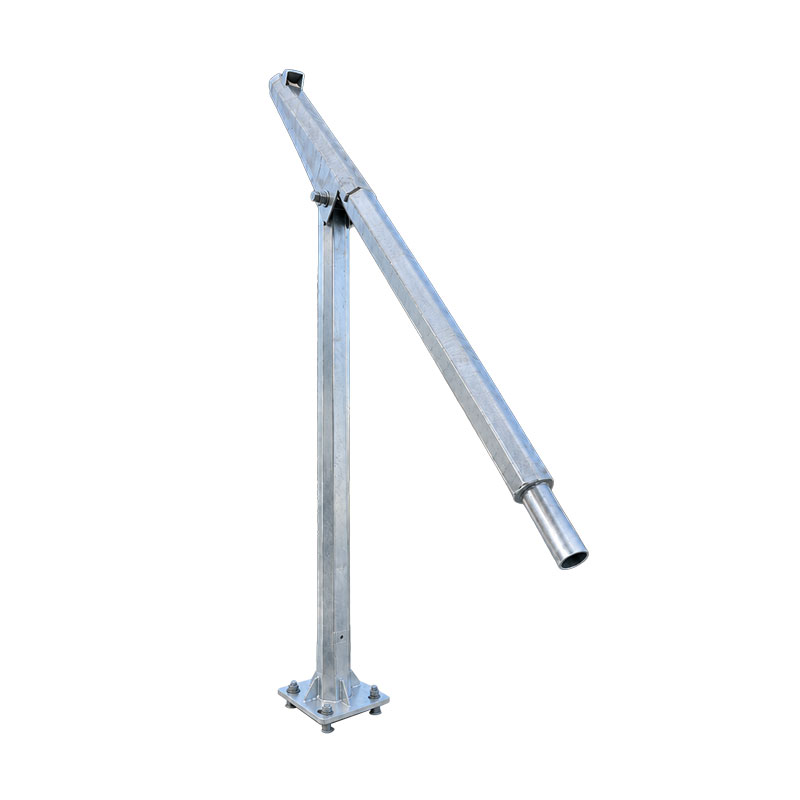

6.0m heavy-duty octagonal hinged pole designed for CCTV surveillance, solar-powered systems and outdoor lighting. Manufactured from Q355 steel with a hot-dipped galvanised finish, the hinged design allows the upper section to be lowered for easier equipment access and maintenance.

Specifications:

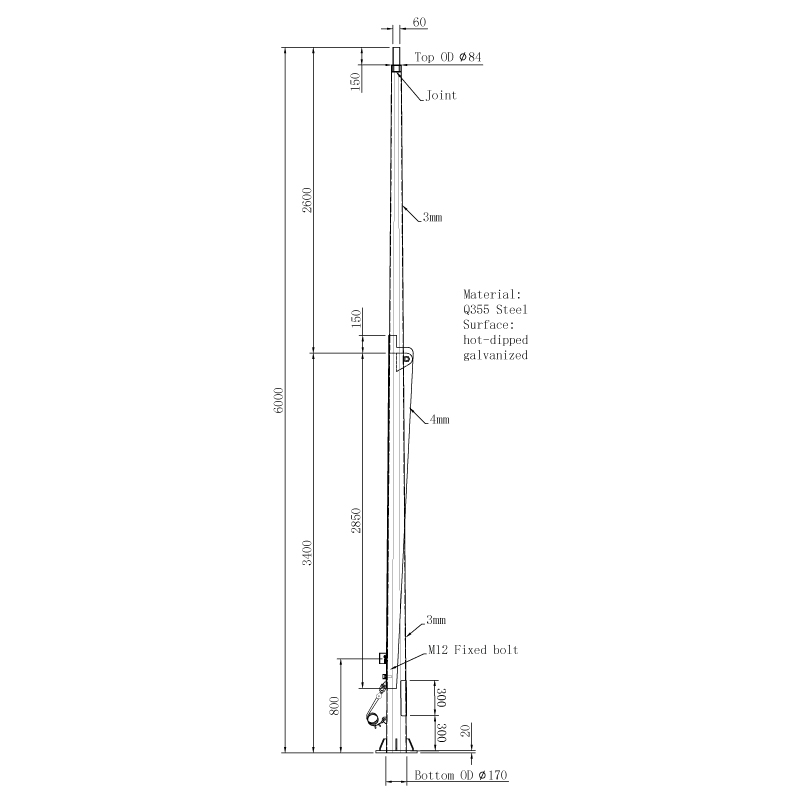

- 6.0m overall height
- Ø60mm top outside diameter
- Ø170mm bottom outside diameter
- 3400mm hinge height
- Q355 steel construction
- Hot-dipped galvanised finish

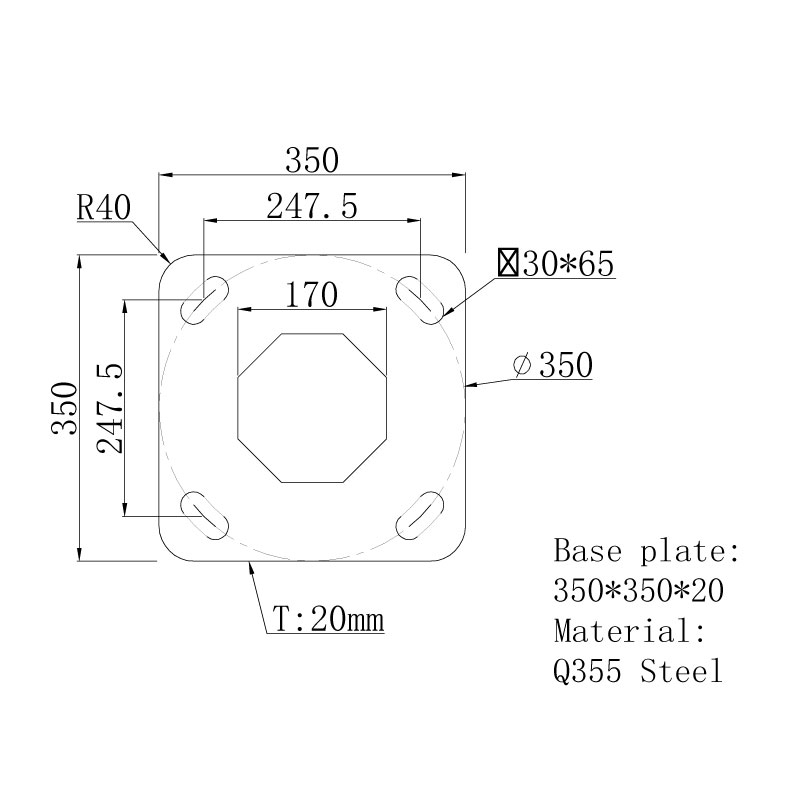

- 350 × 350 × 20mm base plate

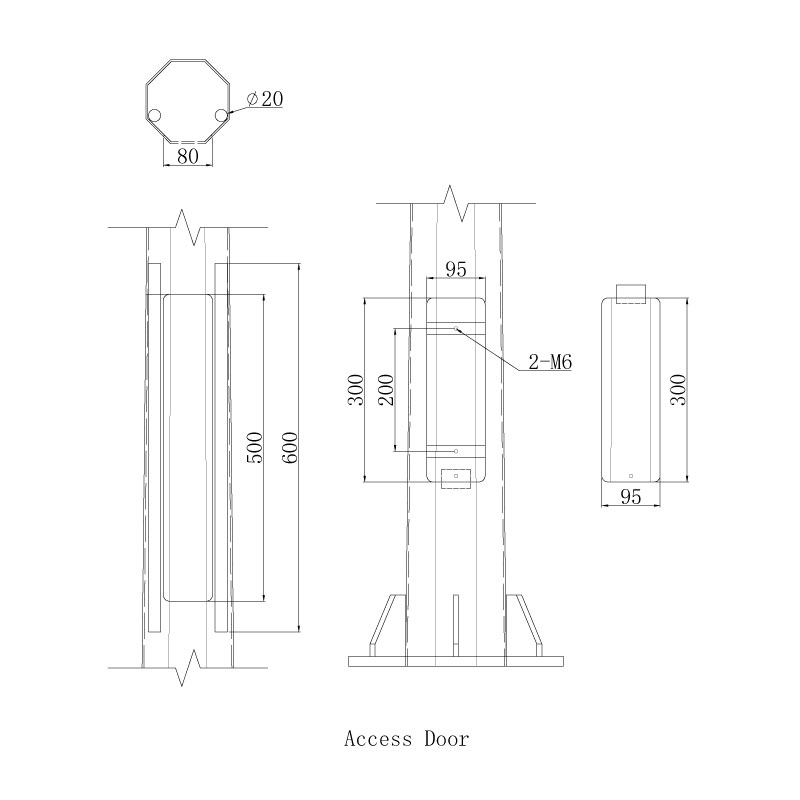

- Integrated access panel
- Compatible with M24 anchor bolt assemblies
- Suitable for permanent or portable installations with compatible mounting options

Inclusions:

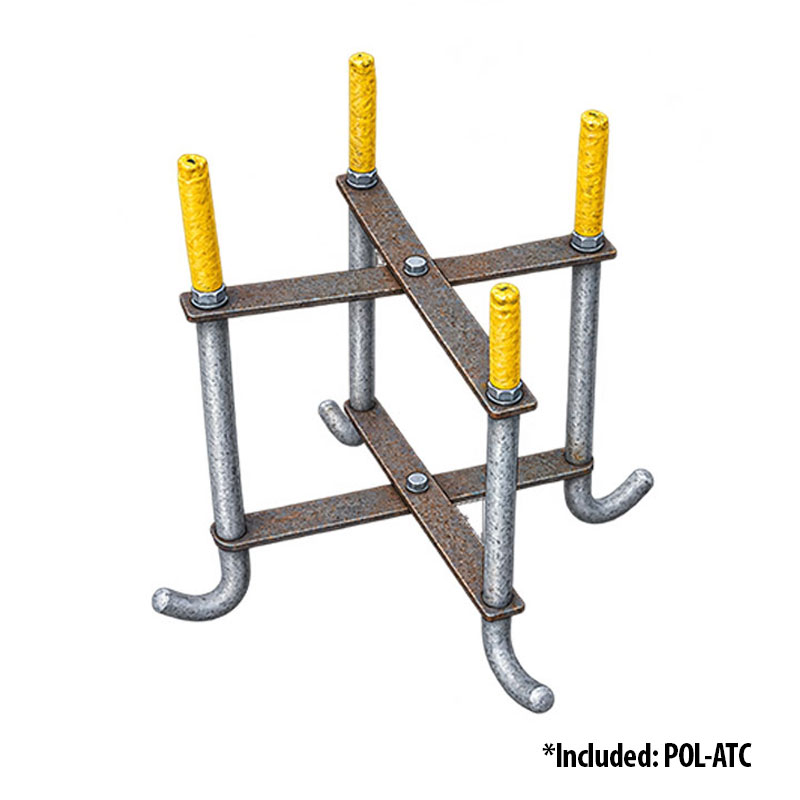

- POL-ATC: Heavy-Duty Integrated Anchor for attaching the pole to a compatible precast concrete base.
*Please Note: Concrete bases are sold separately.

Add-ons:

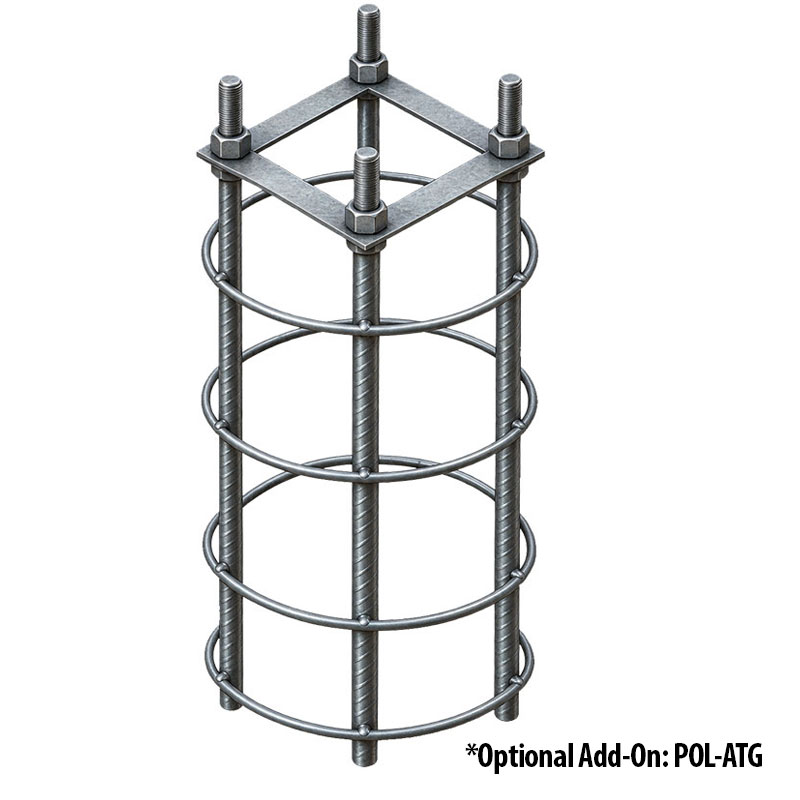

- POL-ATG: In-Ground Anchor Cage: Optional add-on for permanent in-ground installation. Includes anchor cage, bolt template and J-bolts.

Delivery quotation available on request or pick-up from McGraths Hill NSW.
