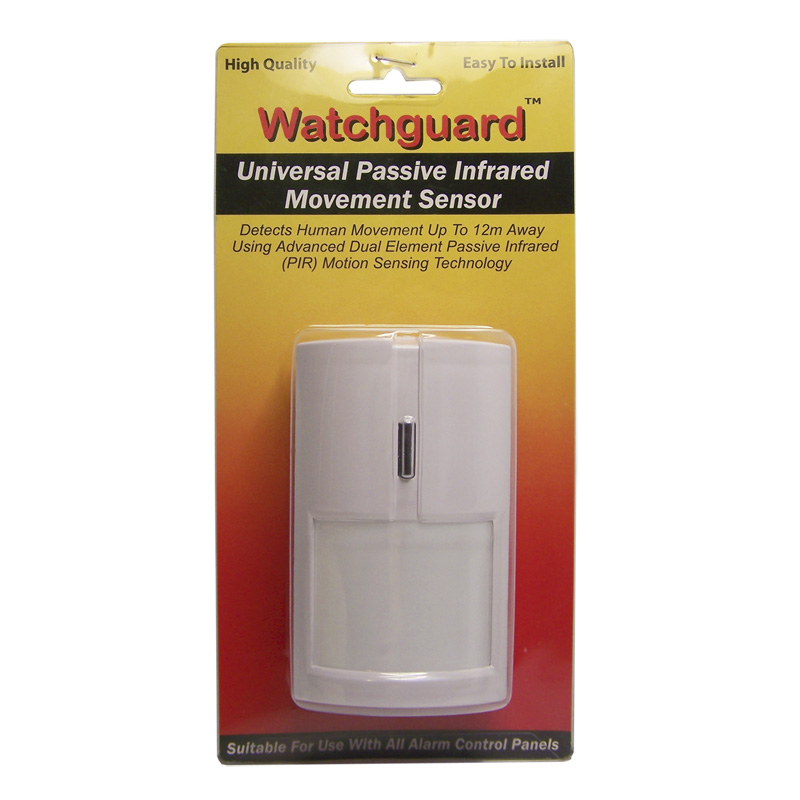

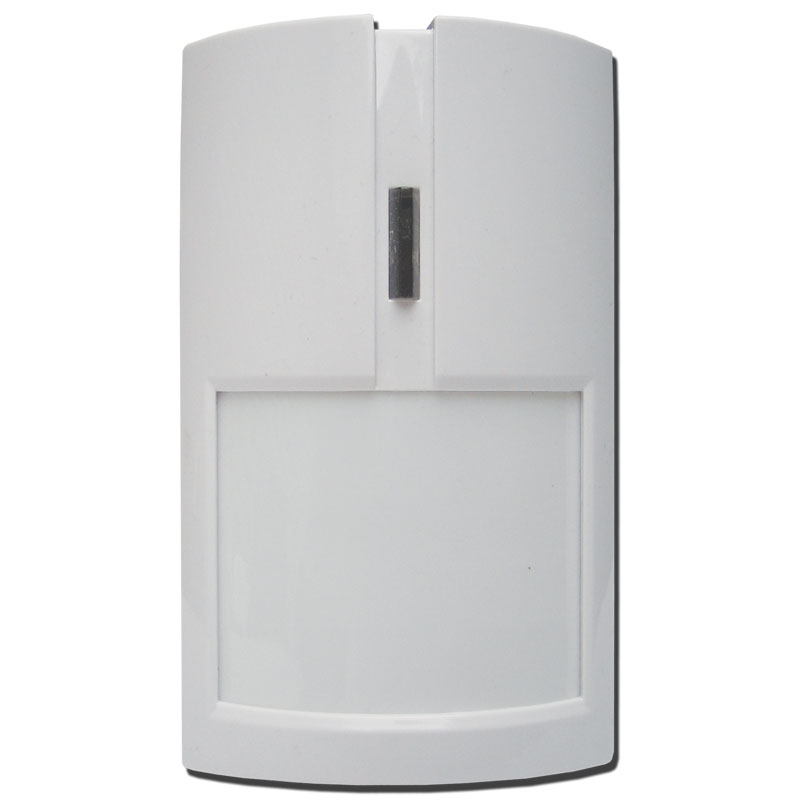

Universal Passive Infrared Movement Sensor

Code PIRHW

Universal Passive Infrared Movement Sensor

Code PIRHW

Stock may be limited. Please contact us for availability or for an alternative item.

This advanced PIR body heat movement sensor is suitable for indoor use with any alarm control panel. It can detect movement up to 12m away at an angle of 110 degrees from the sensor. The detector features automatic temperature compensation to improve performance when the ambient heat level in a room changes. The adjustable pulse count function enables you to select either normal or reduced detection sensitivity levels for use in harsh environments.

- High quality dual element PIR sensor
- Micro processor controlled
- Auto temperature compensation
- Adjustable pulse count (sensitivity)
- Selectable N.O. or N.C. alarm outputs
- Selectable detection LED indicator ON / OFF
- N.C. case tamper switch

Links and Downloads

Specifications

Warranty (Years)
TBA

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
230 mm
Depth
150 mm
Weight
0.14 kg
