Compact Series 4CH PoE NVR with 1 x HDD Bay

Brand logo
SKU NVR4COM3
Brand logo

Compact Series 4CH PoE NVR with 1 x HDD Bay

SKU NVR4COM3

The NVR4COM3 is a compact network video recorder with Ultra HD broadcast-quality image performance and built-in 4 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265+ compression technology and an industrial grade processor.

This NVR supports cameras with AI functions including AI Human/Vehicle Detection and AI Face Detection cameras.

Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 4 x Power over Ethernet (PoE) ports
• Up to 80Mbps total incoming bandwidth
• Decodes up to 2CH@8.0MP/25fps or 4CH@4.0MP/25fps
• 1 x SATA port up to 10TB, max. 10TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (Blue) - 305m Pullbox
CAT5EBLU-47MM
Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
23.8" Flashview 1080p LCD Surveillance Monitor (IPS)
LCDFL24G
Suggested product image
19'' 4RU 450mm Pre-assembled Wall-Mount Data Cabinet
RMC-B4U450W2

Links and Downloads

Specifications

General
Video Input
4 Channels
PoE
Yes
HDD Capacity
1
Processor & Operation
Industrial grade processor & embedded Linux
Interoperability
ONVIF (Profile S), CGI, SDK, RTSP
App Integration
iOS (iPhone, iPad) / Android devices
Recording
Recording Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Network Bandwidth (AI Disabled)
80/80/60Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
-
Video & Audio Compression
Video: H.265+ / H.265 / H.264+ / H.264, Audio: PCM / G711A / G711U / G726 / AAC
Playback Channels
4 Channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
2CH@8.0MP/25fps, 4CH@4.0MP/25fps
Decoding Capacity (AI Enabled)
-
Backup Method
USB Device / Network
Interface
HDD
1 x SATA bay, up to 10TB
Audio
1 channel input (RCA), 1 channel output (RCA)
Alarm Interface
-
Alarm Types
-
Alarm Actions
-
Display Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Display Split
1/4
Display Mode
HDMI1 + VGA1 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 4 x PoE 100Mbps (802.3af/at)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P
USB & Other Inputs
1 x Front USB 2.0, 1 x Rear USB 2.0
Artificial Intelligence
NVR Operated AI
-
Supported Camera AI
Face Detection, AI Human/Vehicle Detection, People Counting, Heatmap, Audio Detection
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
-
Face Detection (By Camera)
4 Channels
Face Recognition Capacity
-
Face Recognition (By NVR)
-
Face Recognition (By Camera)
-
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
-
Human/Vehicle Detection (By Camera)
IVS: 4 channels, SMD: 4 channels
ANPR Functions
-
ANPR (By Camera)
-
Video Metadata Functions
-
Video Metadata (By NVR)
-
Video Metadata (By Camera)
-
Environment
Power Supply
48VDC (1.25A) / 53VDC (1.13A)
Power Consumption
NVR: <10W (without HDD) / PoE: Max 25.5W per port, 36W total
Operating Environment
-10 ~ +55°C / 10 ~ 90%RH
Rackmountable
No
Rackmount Units
-

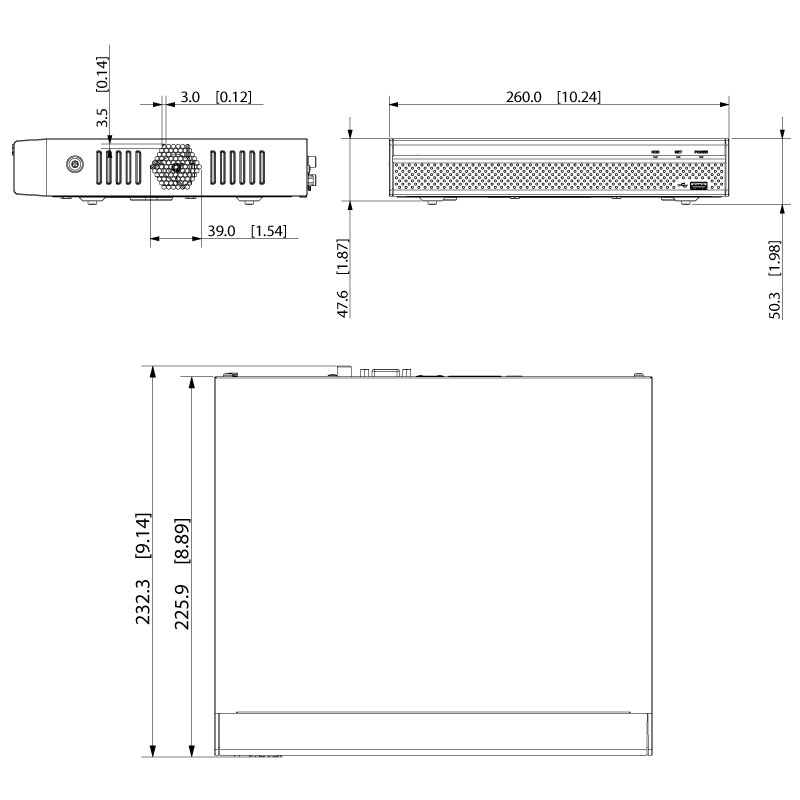

Dimensions
260 x 232 x 50mm
Weight
0.86kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
370 mm
Height
310 mm
Depth
120 mm
Weight
2.50 kg
