Professional 16 Channel Network Video Recorder with PoE (320Mbps)

Brand logo
SKU NVR16PRO6
Brand logo

Professional 16 Channel Network Video Recorder with PoE (320Mbps)

SKU NVR16PRO6

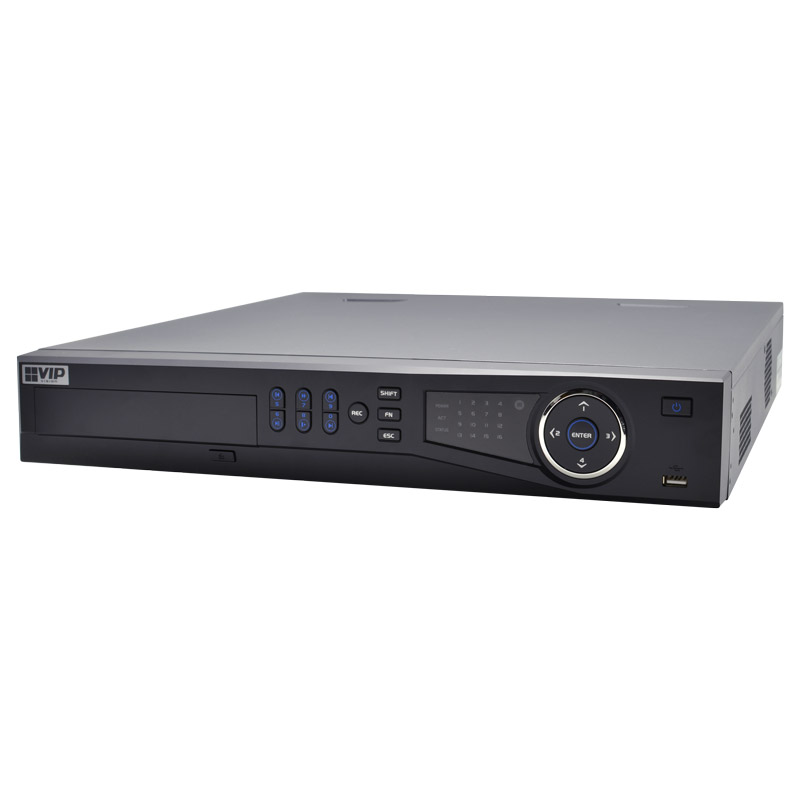

The VIP Vision NVR16PRO6 is an 16 channel network video recorder, designed as an immediate and customisable high definition IP surveillance solution. This NVR offers native Ultra HD broadcast-quality image performance and easy installation with built in Power over Ethernet ports.

Product features:
• Record beyond Ultra HD up to 12.0MP (4000 x 3000)
• Up to 320Mbps incoming bandwidth; H.265 support
• 4 x SATA ports up to 10TB, max. 40TB HDD capacity
• Remote view in seconds with setup via QR code
• Native Ultra HD live view on 4K monitors via HDMI
• Built-in PoE switches for easy install across the range
• Backup footage via network, USB or SATA devices
• Live view, playback & record via your phone/tablet

Links and Downloads

Specifications

General
Main Processor
Quad-core embedded processor
Operating System
Embedded Linux
Video Input
16 channels
PoE
HDD Capacity
Two-way Talk
1 channel input, 1 channel output, RCA
Interoperability
ONVIF 2.4, CGI conformant
Display
Video Output
2 x HDMI, 1 x VGA
Display Resolution
Configurable from 3840 x 2160 to 1024 x 768
Display Split
1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution
Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth
320Mbps
Decoding Capacity
Video Compression
H.265 / H.264 / MJPEG / MPEG4
Bit Rate
16kbps ~ 20Mbps per channel
Record Modes
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output
16 channels input / 6 channels relay output (N.O/N.C)
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync
1/4/9/16
Search Modes
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes
USB Device / Network / eSATA Device / Internal SATA burner
Network
Ethernet
1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet
16 ports (IEEE802.3at/af)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Optical Interface
N/A
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
Storage
Internal HDD
4 x SATA ports up to 10TB, max. 40TB HDD capacity
HDD Modes
Single (no RAID compatibility)
USB Interface
3 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs
1 x RS232 / 1 x RS485 / 1 x eSATA
Environment
Power Supply
100 ~ 240VAC, 50 ~ 60Hz
Power Consumption
< 17.5W (without HDD)
Operating Environment
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable
Rackmount Units
Dimensions
Weight
4.65kg (without HDD)
Other
Dimensions / Rack Units
440 x 411 x 76mm / 1.5U
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
530 mm
Height
500 mm
Depth
220 mm
Weight
7.10 kg
