General
Video Input
16 Channels
PoE
Yes
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK. Supports Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32MP to QCIF
Network Bandwidth (AI Disabled)
448Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
200Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
10CH@8MP/30fps, 16CH@5MP/30fps
Decoding Capacity (AI Enabled)
8CH@8MP/30fps, 16CH@4MP/30fps
Backup Method
USB device / Network

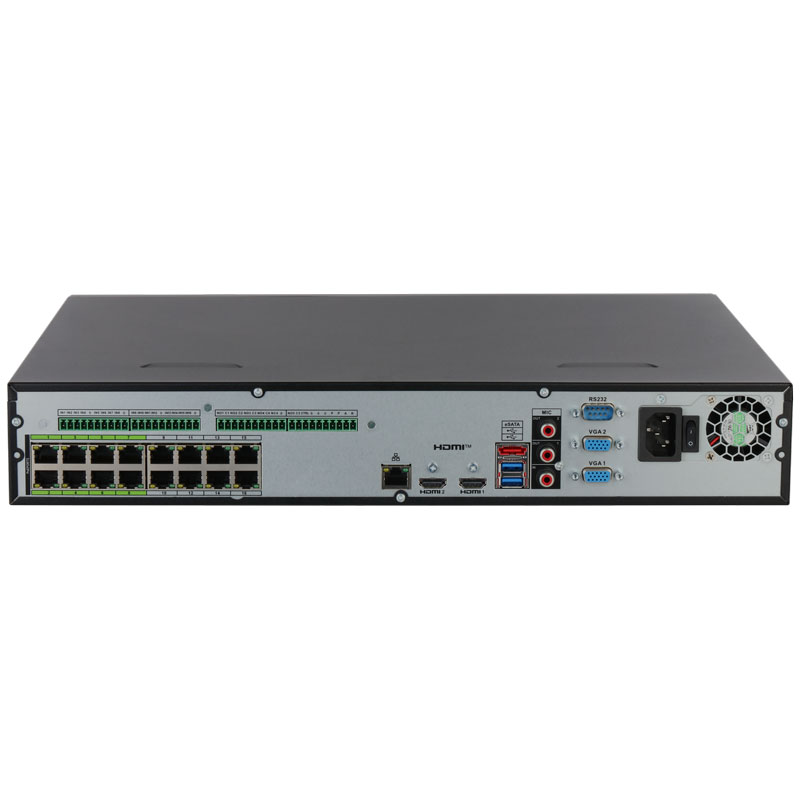

Interface
HDD
4 × SATA bays, up to 20TB per bay
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output (including 1 × 12V 1A output)
Alarm Types
General: Motion, external & network; Anomaly: Disk, network, video & audio; Intelligent: AI analytics
Alarm Actions
Record; snapshot; local alarm output; IPC external alarm output; audio; buzzer; log; preset; email
Display Output
2 × HDMI (up to 7680 × 4320), 2 × VGA (up to 1920 × 1080)
Display Split
Main: 1/4/8/9/16; Sub: 1/4/8/9/16
Display Mode
HDMI1 + VGA1 simultaneous output; HDMI2 + VGA2 simultaneous output
Network Input
1 × 10/100/1000Mbps Ethernet, 16 × PoE 10/100Mbps (IEEE 802.3af/at); ports 1–8 support ePoE
Network Functions
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI
USB & Other Inputs
1 × Front USB 2.0, 2 × Rear USB 3.0; 1 × RS-485; 1 × RS-232; 1 × eSATA
Artificial Intelligence
NVR Operated AI
AcuPick; Face Detection; Face Recognition; Video Metadata; Perimeter Protection; SMD Plus
Supported Camera AI
AcuPick; Face Detection & Recognition; Video Metadata; Perimeter Protection; SMD; Stereo Analysis; Crowd Distribution; People Counting; ANPR; Vehicle Density; Heat Map; PPE Detection; Smart Object Detection; Smart Sound Detection
Face Detection Functions
Gender; age group; glasses; expressions; face mask; beard
Face Detection (By NVR)
4 channels, up to 12 face images/s per channel
Face Detection (By Camera)
All channels, 32 targets/s
Face Recognition Capacity
Up to 20 face databases / 30,000 images / 3.75GB total
Face Recognition (By NVR)
16 channels (Face Detection by camera, Face Recognition by NVR): 16 images/s; 4 channels (Face Detection & Recognition by NVR): 24 images/s
Face Recognition (By Camera)
All channels, 32 targets/s
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD Plus)
Human/Vehicle Detection (By NVR)
16 channels
Human/Vehicle Detection (By Camera)
All channels, 64 targets/s
ANPR Functions
License plate comparison; up to 20,000 plate numbers; blocklist and allowlist
ANPR (By Camera)
All channels, 8 targets/s
Video Metadata Functions
People: clothing colour/type, hat, bag, age, gender, umbrella; Vehicles: plate, plate colour, body colour, model, logo; Non-motor vehicles: model, colour, persons, helmet
Video Metadata (By NVR)
4 channels, 22-attribute extraction
Video Metadata (By Camera)
All channels, 16 targets/s
Environment
Power Supply
100–240VAC, 50/60Hz
Power Consumption
≤13W without HDD; PoE: max. 25.5W per port, 200W total
Operating Environment
–10°C to +55°C; 10%–93% RH, non-condensing
Rackmountable
Yes
Rackmount Units
1.5U
Dimensions
440.0 × 415.6 × 76.0
Weight
4.56kg
Warranty (Years)
4
