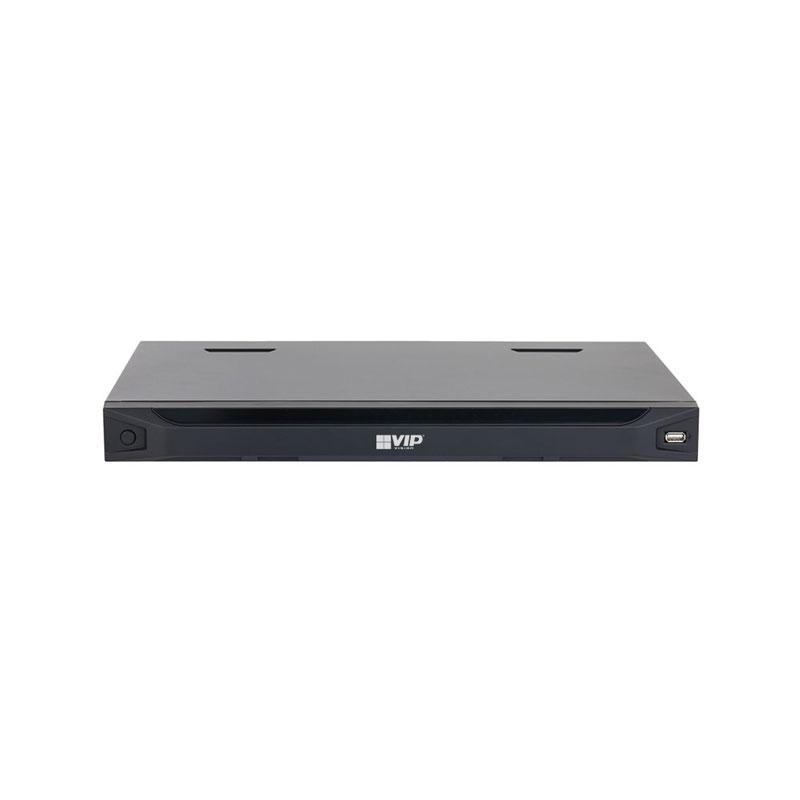

Ultra HD Network Video Decoder with 9 HDMI outputs

Brand logo
SKU NVD-B9
Brand logo

Ultra HD Network Video Decoder with 9 HDMI outputs

SKU NVD-B9

This product is Coming Soon. Please contact us for more information.

The NVD-B9 is an IP video decoder that allows for configuration of up to 9 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.

Product features:
• Roaming decoder displays all video feeds on network
• Video wall splicing for up to 36 displays per monitor
• Split screen control with zoom/merge/roam/overlay
• Switch between standard & high definition streams
• Decode up to 14CH 4K, 57CH 1080p or 192CH D1
• Support for audio, alarm, bi-directional talk, RS232, RS485
• Fisheye dewarp & multi-video split display
• Manage via web browser or VIP Vision™ SmartPSS

Links and Downloads

NVD-B6/9 User Manual (PDF) 3.07 MB
NVD-B Datasheet (PDF) 1.45 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

System
Processor
High-performance embedded processor
Operating System
Embedded Linux
Performance
Video Format
H.265 / H.264 / MJPEG / MPEG4 / SVAC / MPEG2
Audio Format
PCM / G.711 / AAC
Video Decoding Capacity (Separate)
N/A
Video Decoding Capacity (Total)
3-ch@32MP (25 fps), 9-ch@12MP (25 fps), 14-ch@8MP (25 fps), 18-ch@6MP (25 fps), 24-ch@5MP (25 fps), 29-ch@4MP (25 fps), 37-ch@3MP (25 fps), 57-ch@1080p (25 fps), 192-ch@D1 (25 fps)
Decoding Resolution
32MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960H / D1 / HD1 / 2CIF / CIF / QCIF
Video Frame Rate
PAL: 1~25fps / NTSC: 1~30fps

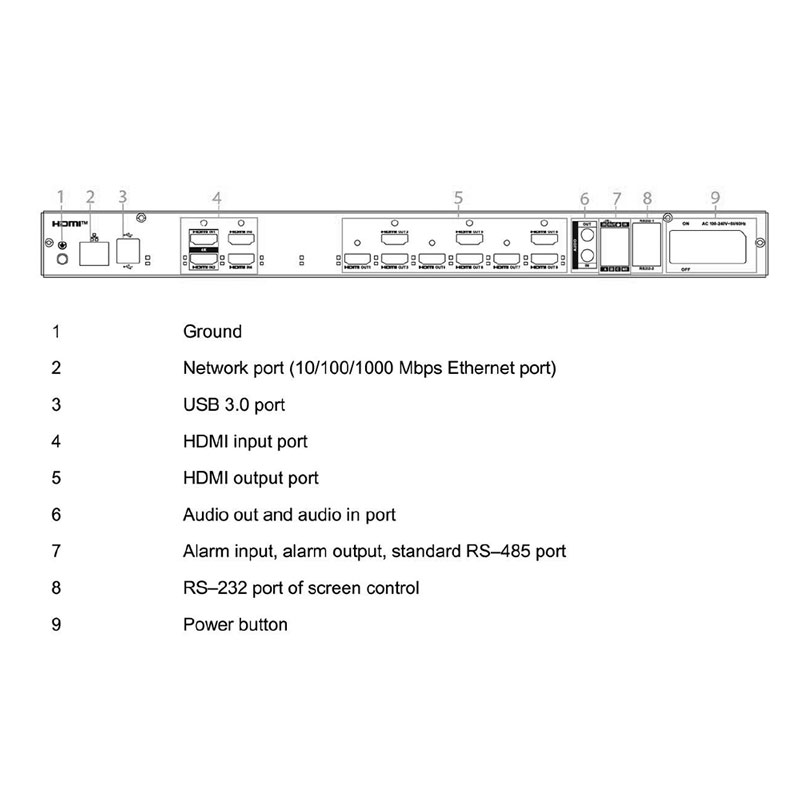

Video Input
2 x HDMI, 2 x DVI-I
Video Output
9 x HDMI
Collection Resolution
Up to 3840 x 2160@60fps (4K / 8MP)
Display Resolution
3840 x 2160 / 2560 x 1600 / 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768 (6 ports support 3840 x 2160, 3 ports support 2560 x 1600)
Display Split
1/4/6/8/9/16/25/36
Bi-directional Talk
1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10KΩ,2.0V / 16Ω out)
Alarm Input
1
Alarm Output
1
Communication Interface
1 x RJ45 network port (10M/100M/1000M), 3 x RS232(2 x RJ45, 1 x DB9),1 x RS485
Environment
Power Supply
100 ~ 240VAC, 50Hz-60Hz
Power Consumption
≤70W
Operating Temperature
-10°C~+55°C, 10%~95%RH (86Kpa ~ 106Kpa)
Dimensions
482.6 mm × 317.3 mm × 44.5 mm
Weight
4.80kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
510 mm
Height
220 mm
Depth
530 mm
Weight
7.00 kg
