Professional Weather Resistant Dome Camera

Brand logo
SKU MSCAM-MD
Brand logo

Professional Weather Resistant Dome Camera

SKU MSCAM-MD

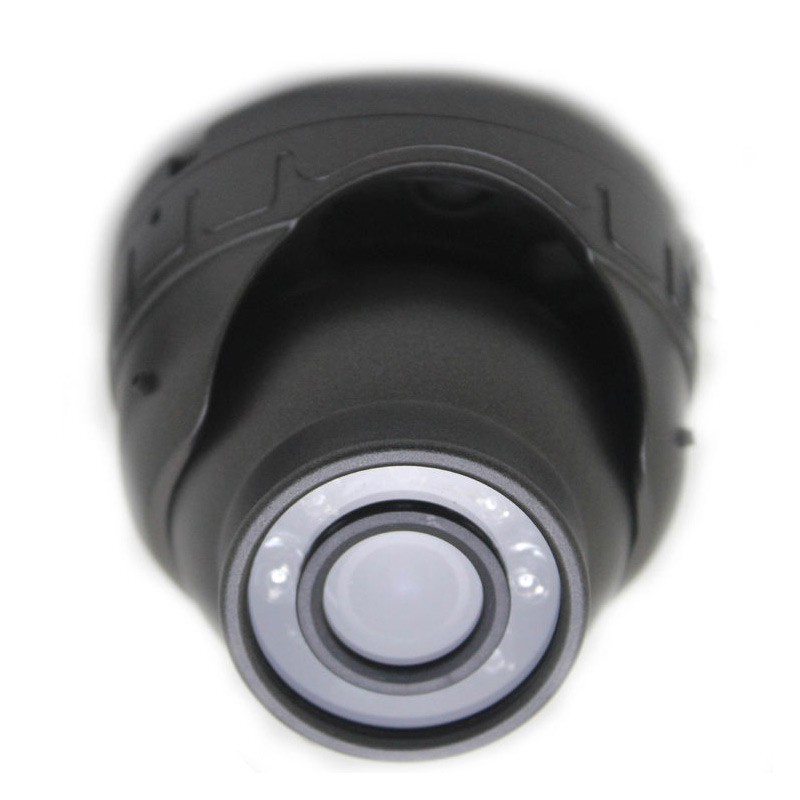

The RHINO™ MSCAM-MD is a professional vehicle surveillance camera for use in buses, trucks and any other large vehicle. It provides reliable surveillance in a weather and vandal resistant dome casing.

Product features:
• Weather resistant dome camera
• 420TVL resolution
• 640(H) x 480(V) effective pixels
• 110° field of view
• Vandal resistant
• 12V ~ 24V power input

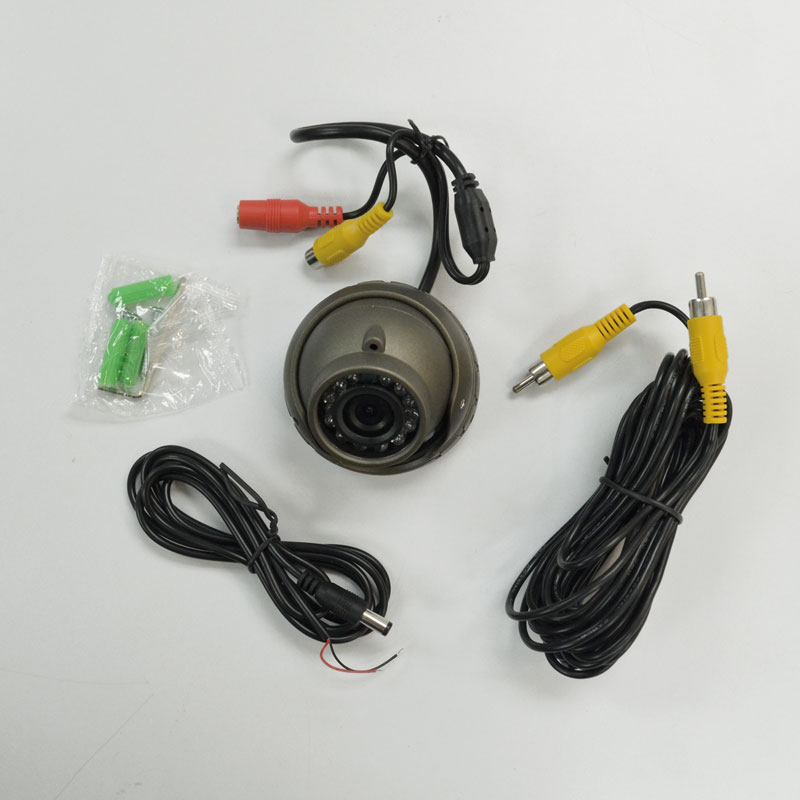

Accessories included:
• DC power supply cable
• 5m video lead
• Mounting kit

*This camera is not mirrored and is not recommended for reversing purposes

Suggested Products

Suggested product image
Professional Ultra Low Light Weather Resistant Dome Camera
MSCAM-MDA
Suggested product image
Heavy Duty Wireless Reversing Camera / Monitor Kit
MSKIT-WRC
Suggested product image
4.3’’ TFT Dashboard Flip Monitor for Vehicles
MSMON-4

Links and Downloads

Specifications

General
Camera Style
Weather Resistant Dome
Image Sensor
1/4 CMOS
Effective Pixels
640 (H) x 480 (V)
Mirrored
No
Camera
Lens
TBA
Minimum Illumination
0.5 Lux
Maximum Infrared Range
5m
Video
Resolution
420TVL
Video Output
1 channel RCA (1.0Vp-p, 75 ohm)
Environment
Ingress Protection
IP67
Vandal Resistant
Yes
Power Input
12V ~ 24V
Power Consumption
< 100mA
Operating Environment
-10° to 50°C / RH95% (max)
Dimensions
Ø70 x 60mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.19 kg
