4G LTE Wireless Access Point

Brand logo
SKU LGAP100-4G
Brand logo

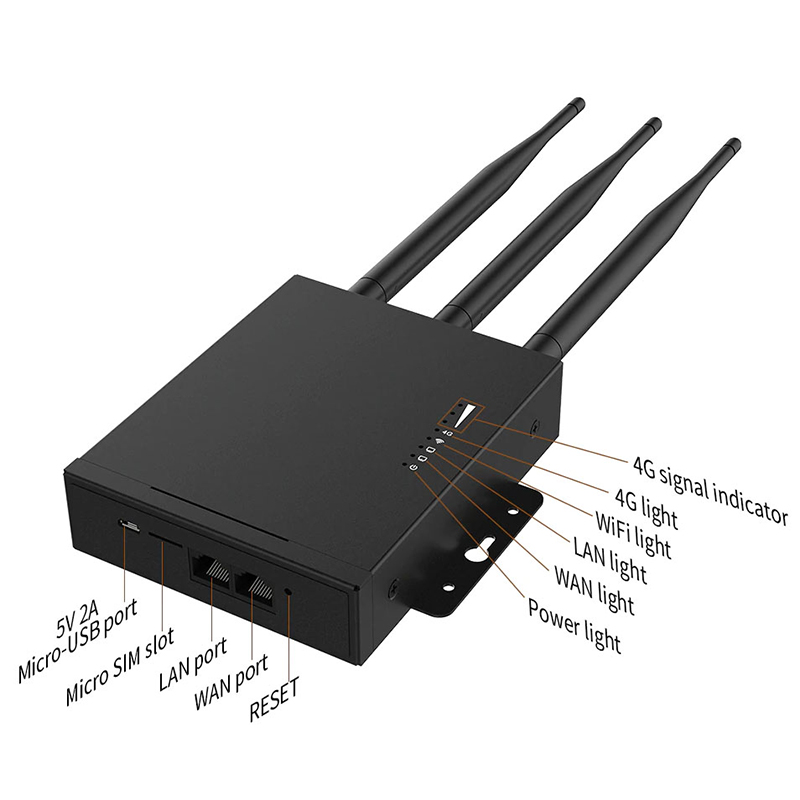

4G LTE Wireless Access Point

SKU LGAP100-4G

Available by special order only. Please contact us for lead times.

The LGAP100-4G allows you to set up networks anywhere with a 4G network connection. Create emergency backup networks, temporary WiFi and networks in remote areas without broadband.

Product features:
• 4G LTE transfer to wired & WiFi network
• Functions as a router/access point
• Strong signal with 2 x 2.4GHz & 1 x 4G antennas
• Power via micro-USB or PoE
• Provides 24V PoE power
• Simple plug & play installation

Includes:
1 x 4G Access Point
1 x PoE Adapter
1 x Network Patch Cable
1 x Instruction manual
2 x Screws for wall mount

* Active Micro SIM card required (not included)

Links and Downloads

Specifications

Antennas
2 x 5dBi 2.4GHz WiFi Antennas, 1x 5dBi LTE Cellular Antenna
Case
Metal with mounting tabs
Dimensions
134 x 114 x 35mm
Indicator Lights
Power \ WAN \ LAN \ WiFi \ 4G \ Signal strength
Installation
Indoor installation - Installation outdoors will require a waterproof enclosure
IP Rating
IP31
Network Ports
1 x 10/100Mbps LAN RJ45, 1 x 10/100Mbps WAN/LAN RJ45 (Supports 24VDC PoE power supply)
Power Consumption
<12W
SIM Card Type
Micro SIM
Supported Bands GSM/EDGE(2G)
Quad-band
Supported Bands LTE(4G)
FDD-B1/B2/B3/B4/B5/B7/B8/B28, TDD-B40
Supported Bands WCDMA(3G)
B1/B2/B5/B8
USB
1 x Micro USB Port (Supports 5VDC 2.5A power supply)
Wireless Bands
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 / LTE-TDD: B40 / WCDMA: B1/B2/B5/B8 / GSM: B2/B3/B5/B8
Wireless Rate
2.4GHz: 300Mbps, LTE Cat4: 150Mbps (DL MAX) / 50Mbps(UL MAX)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
230 mm
Height
320 mm
Depth
60 mm
Weight
1.15 kg
