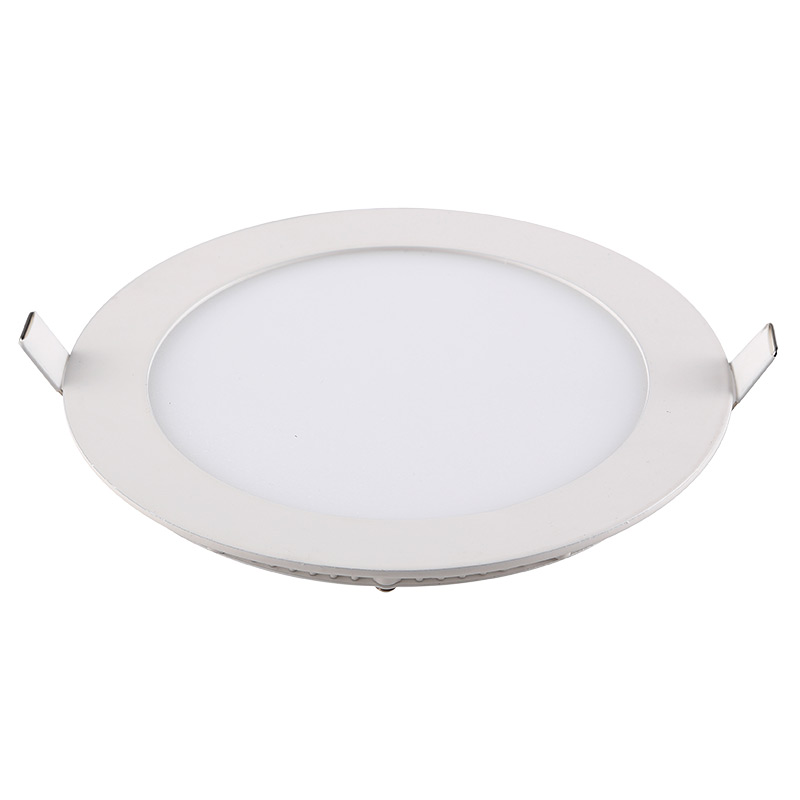

9W Ultra Slim Low Voltage LED Downlight (4500K)

Brand logo
SKU LDL-C9-FN
Brand logo

9W Ultra Slim Low Voltage LED Downlight (4500K)

SKU LDL-C9-FN

The ENSA™ LDL-C-FN LED ultra-thin low voltage downlight range specialises in providing energy efficient, general purpose illumination in even the most difficult of locations. At just 15mm thickness, these lights are perfect for use in point of sale and other retail applications.

Product Highlights:
• Panel lights are available in 3W, 4W and 9W models

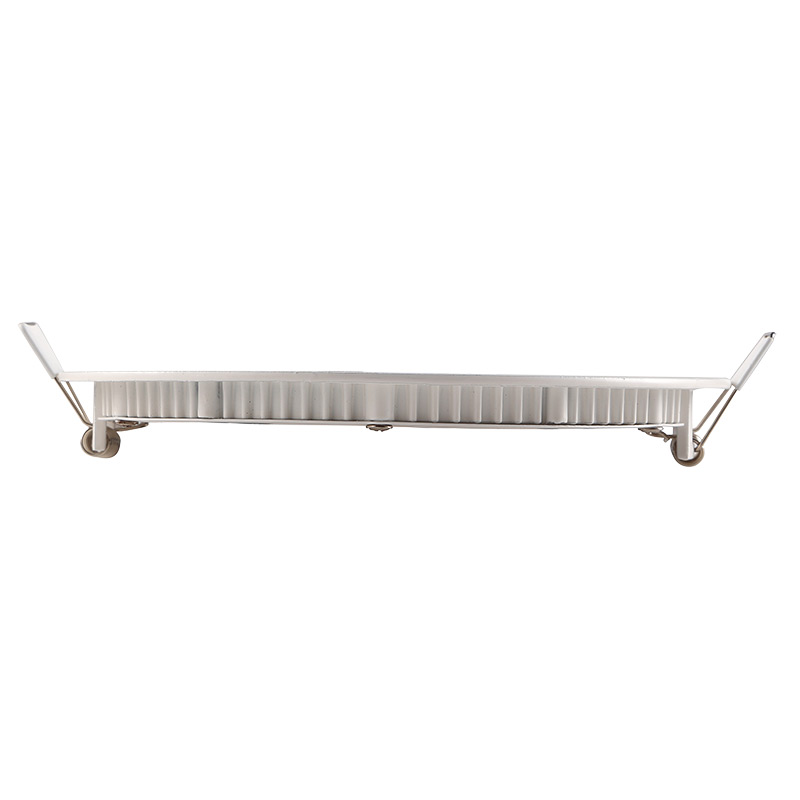

• Ultra thin LED light only 15mm in thickness
• Low profile makes it ideal for shallow recessed lighting
• Low voltage LED downlights with 12~24VDC driver
• Natural white colour temperature (4500K)
• Completely frosted diffuser to eliminate LED glare

Links and Downloads

Specifications

Adjustable Housing
No
Beam Angle
120°
Colour Rendering Index
>80
Colour Temperature
4500K
Dimensions
Ø146 x 15mm
Dimmable
No
Equivalent Wattage
30W halogen
Hole Cut Size
Ø130mm
Housing Adjustments
N/A
Input Voltage
12~24VDC
Light Decay
10% over 10,000 hours
Luminous Efficacy
90lm/W
Luminous Flux
810lm
Operating Environment
-20°C ~ 40°C
Plug / Socket / Base
LED driver, no plug
Power Consumption
9W
Power Factor
>0.9
Rated Lifespan
>25,000 hours
Reflector / Diffuser
Frosted Diffuser
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
190 mm
Height
250 mm
Depth
35 mm
Weight
0.30 kg
